LAVENDER SERIES-Fully Managed Layer 3 Switch

Overview

Switch with powerful hardware and software architecture design. For campus or higher bandwidth network deployment. As business grows requires more bandwidth and more applications, so the need for high speed and faster switching ports device. Need for advanced traffic management and requires advanced L3 features.

Key Features

Compact 1U switch featuring 24 to 48 GE ports and 4 high-performance 10G SFP+ ports.
1U switch with 28-1G/SFP ports and 4-10G/SFP+ ports.

Enhanced Zero Touch Provisioning (ZTP) feature
Supports PoE and PoE+ in compliance with IEEE 802.3af/at standards.

Advanced QoS features for superior network performance, supporting eight queues per port and intelligent scheduling algorithms
A dual-stack IPv4/IPv6 platform providing hardware-accelerated, wire-speed forwarding for seamless traffic handling across both protocols

Versatile management options, including a CLI-based console port, Telnet, SSH, web interface, TFTP, DHCP, and SNMP for seamless configuration and monitoring

Ethernet ring network protection protocol ensuring fast switching within 50ms, combined with robust redundancy support through STP, RSTP, and MSTP protocols.

Rich L3 routing protocols Static Routing V4/V6, RIP/RIPng, OSPF V2/V3, BGP/BGP+, ISIS/ISIS v6, VRRP/VRRP v3, VBRP, PBR/PBR v6, IP-VRF

ACL based policy control, utilizing VLAN IDs, source MAC/IP addresses, and protocol ports
VST (Virtual Switching Technology) into a single logical unit

L2 and L3 Multicast protocols IGMPv1/v2/v3 Snooping, IGMP Snooping Proxy, MLD Snooping, MVR, MVP, PIM v4/v6-SM, PIM v4/v6-SSM, PIM-DM, PIM-SDM.
Security - provides comprehensive security features

enquiry

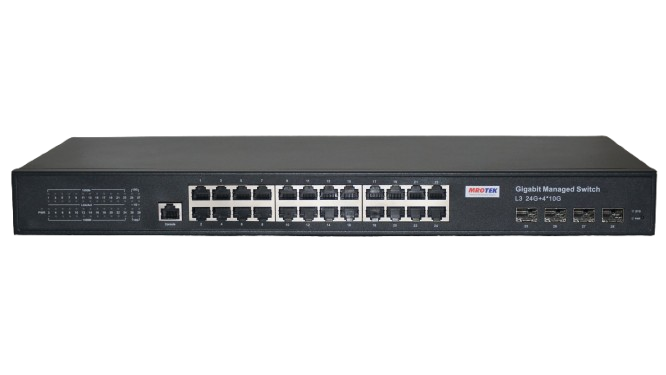

LAVENDER MRO-LS-3600

24/48 port 10/100/1000 Gbe-T Fully managed Layer 3 Switch with 4*10G SFP+ Ports

specifications

Interface

24/48*GE + 4*1G/10G SFP+ ports, Power AC, DC, PoE

L3 And Routing

Static Routing, RIP, OSPF, BGP,OSPF multiple processes, URPF, ECMP, BFD
PIM-SM, Static Multicast Route
Multicast Receive Control
Illegal Multicast Source Detect
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding
Gratuitous ARP, ARP Limit
Anti ARP/NDP Cheat, Anti ARP/NDP Scan
DNS Client, DNS Relay

ACL

IP ACL, MAC ACL, IP-MAC ACL
Standard and Expanded ACL Based on source/destination, IP or MAC, IP Protocol
TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS
REDIRECT and Accounting based ACL
Rules can be configured to port, VLAN
Time Ranged ACL

L1, L2 Features

Port loopback detection, LLDP and LLDP-MED,UDLD,802.3ad LACP, max 128 group trunks with max 8 ports for each trunk
LACP load balance
IGMP v1/v2/v3 Snooping and L2 Query, IGMP Proxy, ND Snooping ,MLDv1/v2 Snooping
Flow Control: HOL, IEEE802.3x ,Bandwidth Control
MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN, QinQ, Selective QinQ, Flexible QinQ
IEEEE802.1d(STP),IEEEE802.1w(RSTP), IEEEE802.1s(MSTP),Root Guard, BPDU Guard

Environment And Power

Humidity : 5%~90% non-condensing.
Operating Temp : 0°C~50°C.

Network And Management

CLI, WEB, Telnet, HTTPS SSL, SSH v1/v2
SNMPv1/v2c/v3, SNMP MIB, SNMP TRAP
RMON 1,2,3,9
Syslog and external Syslog Server
FTP, NTP, Radius, TACACS

Security

802.1x AAA,Port, MAC-based authentication
Guest VLAN and auto VLAN
RADIUS, TACACS+

QOS

8 Queues, SWRR, SP, WRR, WDRR, SWDRR
Traffic Classification Based on 802.1p COS, ToS, Diff Serv DSCP, ACL, port number
Traffic Policing
PRI Mark/Remark

IPV6, DHCP

ICMPv6, ND, DNSv6,VRRP
MLD Snooping, Multicast VLAN
MLDv1/v2, PIM-SM/DM , Anycast RP, ACL, QoS
DHCP Server/Client
DHCP Relay/Option 82
DHCP Snooping

ordering option

LAVENDER MRO-LS-3600-244X

Managed L3 Switch, 24*GE + 4*1G/10G SFP+ ports, Power AC, PoE(option).

LAVENDER MRO-LS-3600-84X

Managed L3 Switch, 8*GE + 4*1G/10G SFP+ ports, Power AC.

LAVENDER MRO-LS-3600-486X

Managed, L3, 48*GE + 6*1G/10G SFP+ ports, AC Power

LAVENDER MRO-LS-3600-244X-I

Managed L3 Switch, 24*GE + 4*1G/10G SFP+ ports, Power AC, 48VDC, PoE(option),Industrial Grade

LAVENDER MRO-LS-3600-84X-I

Managed L3 Switch, 8*GE + 4*1G/10G SFP+ ports, Power DC, PoE(option),Industrial Grade.

LAVENDER MRO-LS-3600-24F4X

Managed L3 Switch, 24*1G SFP + 4*1G/10G SFP+ ports, AC Power

Stackable L3 Routing Switch

enquiry

24/48 port 10/100/1000 Gbe-T Fully managed Layer 3 Stackable Switch with 4*10G SFP+ Ports

specifications

Interface

24/48*GE + 4*1G/10G SFP+ ports, Power AC, DC, PoE
Port Rate Limit: Support port ingress and egress rate limit
Port Speed : Auto negotiate, full-10000, full-2500, full-1000, full-100, half-100, full-10, half-10

Spanning Tree Protocol

Port Loop Detection ,EAPS (RFC3619)
ERPS (G.8032/Y.1344),LLDP-MED ,UDLD
VLLP (VRRP Layer-2 Loop Protection)

Layer 3 Features

Static Multicast MAC Address,
IGMP SNOOPING v1/v2/v3
IGMP Querier, IGMP SNOOPING Filter, MVR, GMRP, IGMP, PIM-SM

VLAN,MAC

802.1q-based VLAN,MAC-based VLAN,IP-based VLAN, Protocol-based VLAN, PVLAN, Voice VLAN
VLAN Mapping, QinQ, GVRP
MAC Table Capacity, MAC Table Management
Forwarding mode IVL forwarding mode
Static MAC Address, MAC Address Binding
MAC Address Filtering, MAC Learning Control

Management

CLI, WEB, SNMP Management,User Management
TACACS+, Support password encryption in PAP and CHAP mode ,Log Management: SYSLOG
RMON: 1, 2, 3 and 9 groups
Cluster Management:
Configuration File: TFTP ,Upgrade software: TFTP
Clock Management : SNTP

DHCP

DHCP Client ,DHCP Snooping ,DHCP Relay, DHCP Server ,DHCP option 82

Security

Switch Management Security: Support TELNET、SSH、HTTP、HTTPS and SNMP
services to bind to standard IP ACLs
IP MAC Binding: Support static configuration of IP, MAC and port binding
AAA: AAA, Radius, TACACS+, 802.1x, Portal
CPU Protection: Security protection prevents large data streams from attacking

QOS

Port Queue Number: 8
Port Queue Scheduling Mode: WRR，WFQ，SP
Port-based Classification
802.1p-based Classification
DSCP-based Classification
ACL-based Classification
QoS Policy

ACL

Standard IP-based ACL, Extended IP based ACL
MAC IP-based ACL, MAC ARP-based ACL
ACL Port Filtering, Time-based ACL

ordering option

LAVENDER MRO-LS-3600-48F4XS

Managed L3 Switch, 48*1G SFP + 4*1G/10G SFP+ ports, AC

LAVENDER MRO-LS-3600-244XS

Managed L3 Switch, 24*GE + 4*1G/10G SFP+ ports, Power AC, POE(option)

LAVENDER MROLS-3600 24F8G4XS

Managed L3 Switch, 24*1G SFP + 8*GE + 4*1G/10G SFP+ ports, Power AC

LAVENDER MRO-LS-3600-486X

Managed, L3, 48*GE + 6*1G/10G SFP+ ports, POE(option),AC Power

enquiry

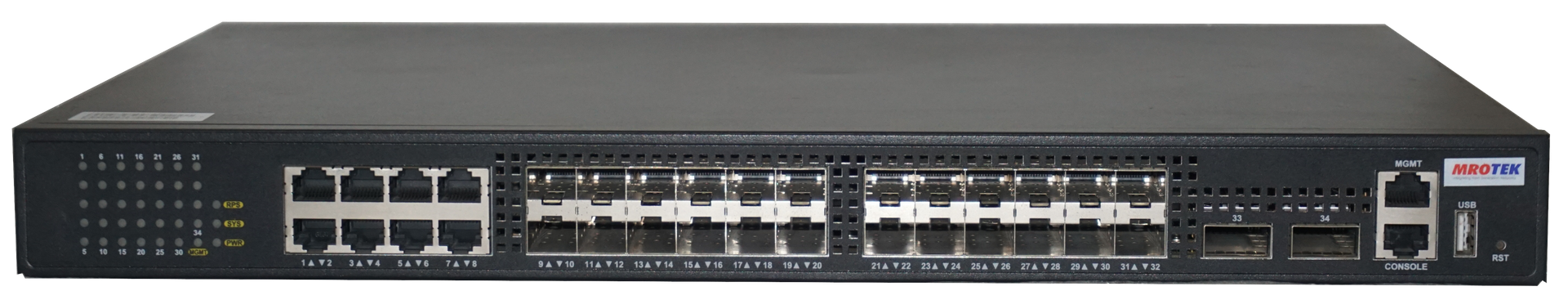

Managed L3 40G uplink Switch

24*10G SFP Fully managed Layer 3 Switch with 2*40G QSFP+ Ports

specifications

Interface

8 x 10/100/1000BaseT + 24 x 10GE(SFP+) + 2 x 40GE(QSFP+)

L3 And Routing

DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDP
Static Multicast Route
Multicast Receive Control
Illegal Multicast Source Detect
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding,
Gratuitous ARP, ARP Limit
Anti ARP/NDP Cheat, Anti ARP/NDP Scan
DNS Client, DNS Relay

Environment And Power

Humidity : 5%~90% non-condensing.
Operating Temp : 0°C~50°C.
Power Supply : AC 100~240VAC, 50~60Hz + 48VDC
Power Consumption: <85W
Dual AC (option)

L1, L2 Features

Port loopback detection
LLDP and LLDP-MED,UDLD
802.3ad LACP, max 128 group trunks with max 8 ports for each trunk,LACP load balance
N:1 Port Mirroring, RSPAN
IEEEE802.1d(STP),IEEEE802.1w(RSTP),
IEEEE802.1s(MSTP),Root Guard, BPDU Guard
802.1Q, 4K VLAN
MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast, VLAN
QinQ, Selective QinQ, Flexible QinQ
GVRP, Broadcast / Multicast / Unicast Storm Control

IPV6

ICMPv6, ND, DNSv6,VRRPv3, URPF, RA
MLD Snooping, Multicast VLAN
MLDv1/v2, PIM-SM/DM , Anycast RP, ACL, QoS

DHCP

DHCP Server/Client for IPv4/IPv6
DHCP Relay/Option 82
DHCP Snooping

Security

Storm-control-Broadcast/multicast/unicast.
Port isolation, Port security.
IP Source Guard and IP MAC port binding.
Authentication-IEEE 802.1x, RADIUS & TACACS+.

Network And Management

CLI, WEB, Telnet, HTTPS SSL, SSH v1/v2
SNMPv1/v2c/v3, SNMP MIB, SNMP TRAP
RMON 1,2,3,9, Syslog and external Syslog Server
FTP/TFTP, SNTP/NTP, Radius/TACACS
Dual firmware images/ Configuration files
802.3ah OAM, 802.1ag OAM, sFlow

QOS

8 Queues
SWRR, SP, WRR, WDRR, SWDRR
Traffic Classification Based on 802.1p COS, ToS, DiffServ,DSCP, ACL, port number
Traffic Policing,PRI Mark/Remark

ordering option

MRO-LS- 3600- 24XF2x-40Gc

Managed L3 40G uplink Switch, 8 x 10/100/1000Base-T(RJ45) + 24 x 10GE (SFP+) + 2 x 40GbE (QSFP+), AC + 48VDC power supply. Dual AC(option)
