Enterprise Router
Falcon-Router is a new-generation enterprise-class access router, applicable to finance/government/branches of large enterprise.It integrates various modern network technologies, such as routing, QoS, security to provide the flexible access modes and secure and high-efficiency service experience for the users.

Full Routing Stack

Static routing, RIP, OSPFv2, BGP, and IS-IS with PIM/IGMP multicast support.

Integrated Security

Stateful firewall, IPSec/SSL VPN, NAT, RADIUS/TACACS+ — no separate security appliance needed for branch deployments.

QoS & Traffic Management

FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP, and CAR with hierarchical QoS — prioritizes voice, video, and business-critical traffic over the WAN link.

Management & Monitoring

CLI, Telnet, SSH 2.0, and Web GUI plus SNMP v1/v2/v3, TR-069, and NetFlow — full OmniEye NMS integration for centralised monitoring.

FALCON-R-801
FALCON-R-801
5× GbE · IPSec / GRE · OSPF, BGP, RIP
Need pricing? Enquire >
FALCON-R-1908
FALCON-R-1908
8× GbE · 4× GbE + 1× 1G Fibre · upto 2 slots
Need pricing? Enquire >
10G FALCON-R-3906
FALCON-R-3906
16× GE RJ45 · 2× 10GE fibre · 24× GbE (optional card)
Need pricing? Enquire >
New FALCON-R-2907
FALCON-R-2907
24× GbE · 4× GbE Combo · 4 slots — E1/V.35/GbE
Need pricing? Enquire >
Models
FALCON-R-801 view 1

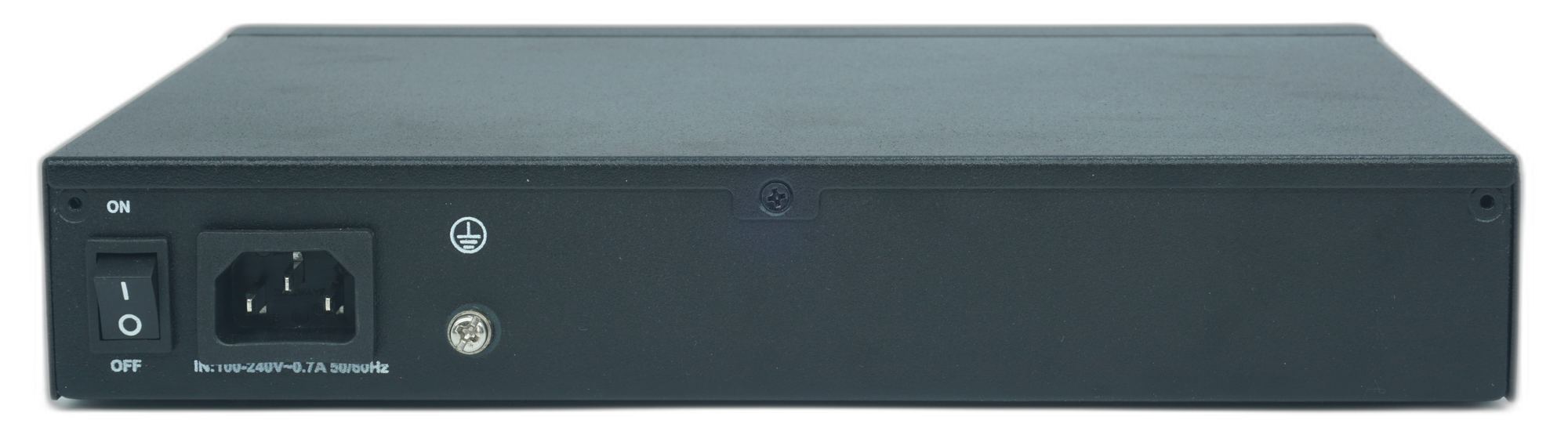

FALCON-R-801 view 2

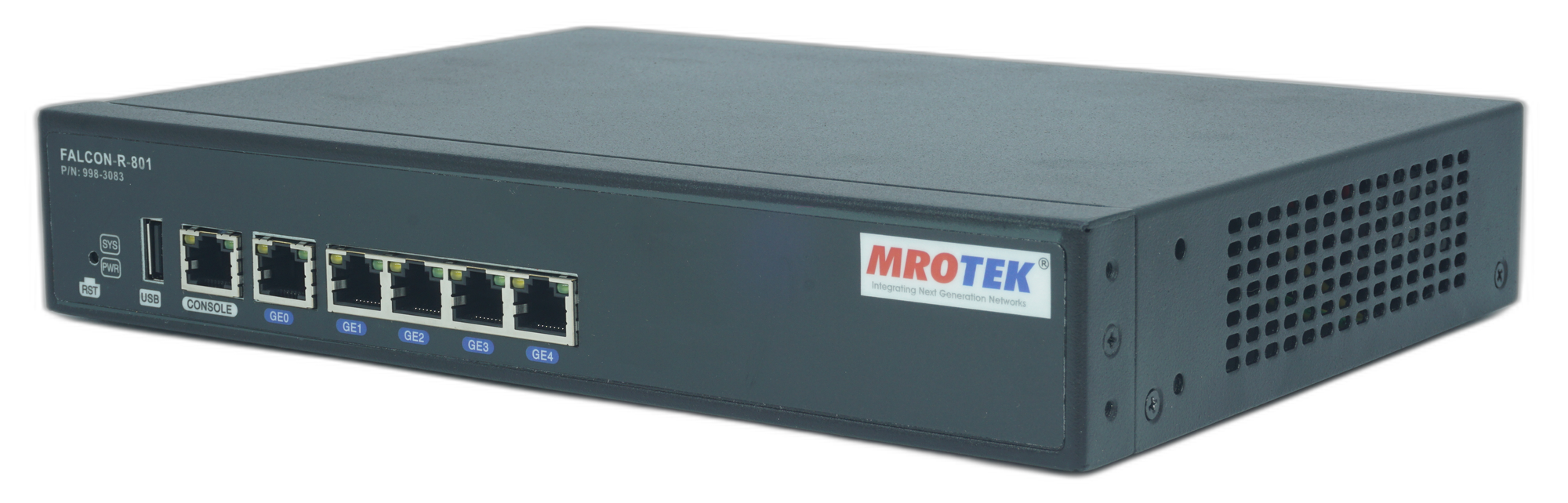

FALCON-R-801 view 3
FALCON-R-801
FALCON-R-801
Overview
FALCON-R-801 router is one new-generation enterprise-class access router, applicable to enterprise and government branch offices. It integrates various modern network technologies, such as routing, QoS, security, provide the flexible access modes and secure and high-efficiency service experience for the users.
5× GbE
Ports
IPSec / GRE
VPN
OSPF, BGP, RIP
Routing
AC built-in
Power
Request Datasheet
Specifications
  • 5× 100/1000M Ethernet ports — configurable as WAN or LAN
  • 1× USB interface
  • Built-in AC power supply
  • Static route, RIP, OSPFv2, BGP, IS-IS, IRMP
  • DHCP server, DHCP client, DHCP relay
  • PIM-SM, PIM-SSM, PIM-DM, PIM-SDM, IGMP v1/v2/v3 multicast routing
  • IPv4 & IPv6 dual stack
  • IPSec VPN, GRE VPN, L2TP VPN
  • Console, Telnet, SSH 2.0, Web GUI
  • SNMP v1/v2/v3
  • TR-069, NetFlow
  • ACL, NAT, L2TP, GRE, PBR, AAA, SSH, IPSec VPN
  • Storm control
  • Authentication — IEEE 802.1x, RADIUS and TACACS
  • Traffic shaping
  • FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP
  • CAR, H-QoS
  • VRRP, VBRP, Track, BFD
  • 5× 100/1000M Ethernet ports — configurable as WAN or LAN
  • 1× USB interface
  • Built-in AC power supply
  • Static route, RIP, OSPFv2, BGP, IS-IS, IRMP
  • DHCP server, DHCP client, DHCP relay
  • PIM-SM, PIM-SSM, PIM-DM, PIM-SDM, IGMP v1/v2/v3 multicast routing
  • IPv4 & IPv6 dual stack
  • IPSec VPN, GRE VPN, L2TP VPN
  • Console, Telnet, SSH 2.0, Web GUI
  • SNMP v1/v2/v3
  • TR-069, NetFlow
  • ACL, NAT, L2TP, GRE, PBR, AAA, SSH, IPSec VPN
  • Storm control
  • Authentication — IEEE 802.1x, RADIUS and TACACS
  • Traffic shaping
  • FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP
  • CAR, H-QoS
  • VRRP, VBRP, Track, BFD
Certifications TEC TTP CE FCC RoHS NCCS
FALCON-R-1908 view 1

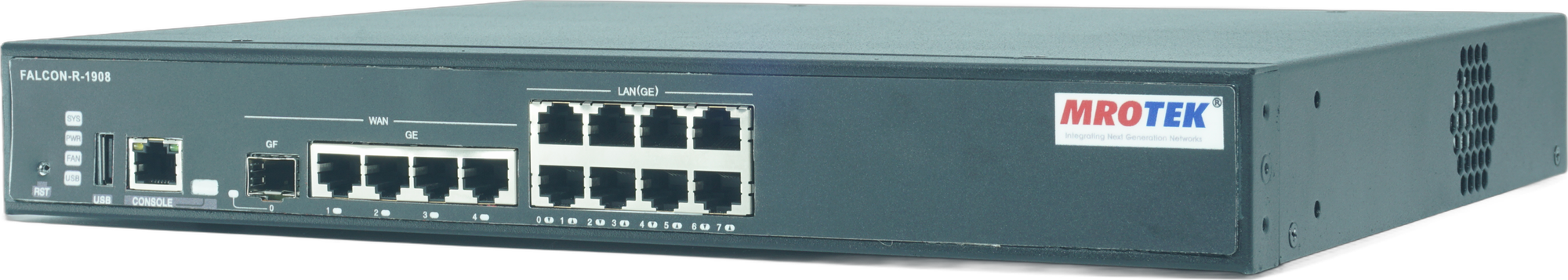

FALCON-R-1908 view 2

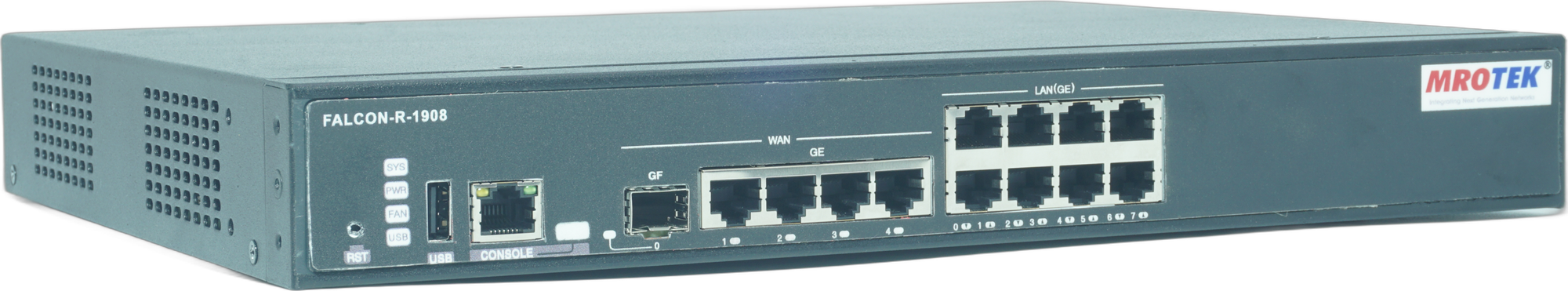

FALCON-R-1908 view 3

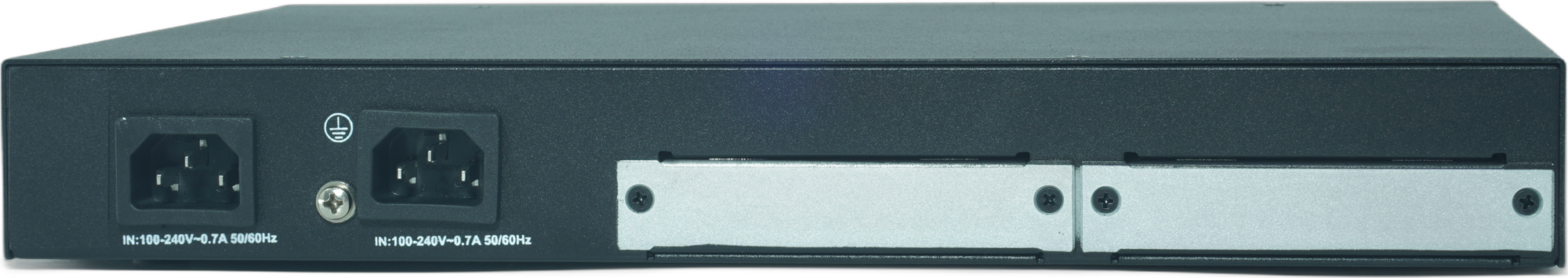

FALCON-R-1908 view 4
FALCON-R-1908
FALCON-R-1908
Overview
FALCON-R-1908 router is one new-generation enterprise-class access router, applicable to enterprise and government branch offices. It integrates various modern network technologies such as routing, QoS, security, provide the flexible access modes and secure and high-efficiency service experience for the users.
8× GbE
LAN
4× GbE + 1× 1G Fibre
WAN
upto 2 slots
Modular
OSPF, BGP, RIP
Routing
Request Datasheet
Specifications
  • 4× 100/1000M Ethernet + 1× 1G fibre WAN slot
  • 8× 1000M LAN ports
  • 2× extended slots — Ethernet, E1/CE1, V.35, or fibre line modules
  • 1× USB interface
  • Power supply — single AC/DC or dual AC+DC/AC+AC configurations
  • Static route, RIP, OSPFv2, BGP, IS-IS, IRMP
  • DHCP server, DHCP client, DHCP relay
  • PIM-SM, PIM-SSM, PIM-DM, PIM-SDM, IGMP v1/v2/v3 multicast routing
  • IPv4 & IPv6 dual stack
  • IPSec VPN, GRE VPN, L2TP VPN
  • Console, Telnet, SSH 2.0, Web GUI
  • SNMP v1/v2/v3
  • TR-069, NetFlow
  • ACL, NAT, L2TP, GRE, PBR, AAA, SSH, IPSec VPN
  • Storm control
  • Authentication — IEEE 802.1x, RADIUS and TACACS
  • Traffic shaping
  • FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP
  • CAR, H-QoS
  • VRRP, VBRP, Track, BFD
  • 4× 100/1000M Ethernet + 1× 1G fibre WAN slot
  • 8× 1000M LAN ports
  • 2× extended slots — Ethernet, E1/CE1, V.35, or fibre line modules
  • 1× USB interface
  • Power supply — single AC/DC or dual AC+DC/AC+AC configurations
  • Static route, RIP, OSPFv2, BGP, IS-IS, IRMP
  • DHCP server, DHCP client, DHCP relay
  • PIM-SM, PIM-SSM, PIM-DM, PIM-SDM, IGMP v1/v2/v3 multicast routing
  • IPv4 & IPv6 dual stack
  • IPSec VPN, GRE VPN, L2TP VPN
  • Console, Telnet, SSH 2.0, Web GUI
  • SNMP v1/v2/v3
  • TR-069, NetFlow
  • ACL, NAT, L2TP, GRE, PBR, AAA, SSH, IPSec VPN
  • Storm control
  • Authentication — IEEE 802.1x, RADIUS and TACACS
  • Traffic shaping
  • FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP
  • CAR, H-QoS
  • VRRP, VBRP, Track, BFD
Certifications TEC TTP CE FCC RoHS NCCS
FALCON-R-3906 view 1

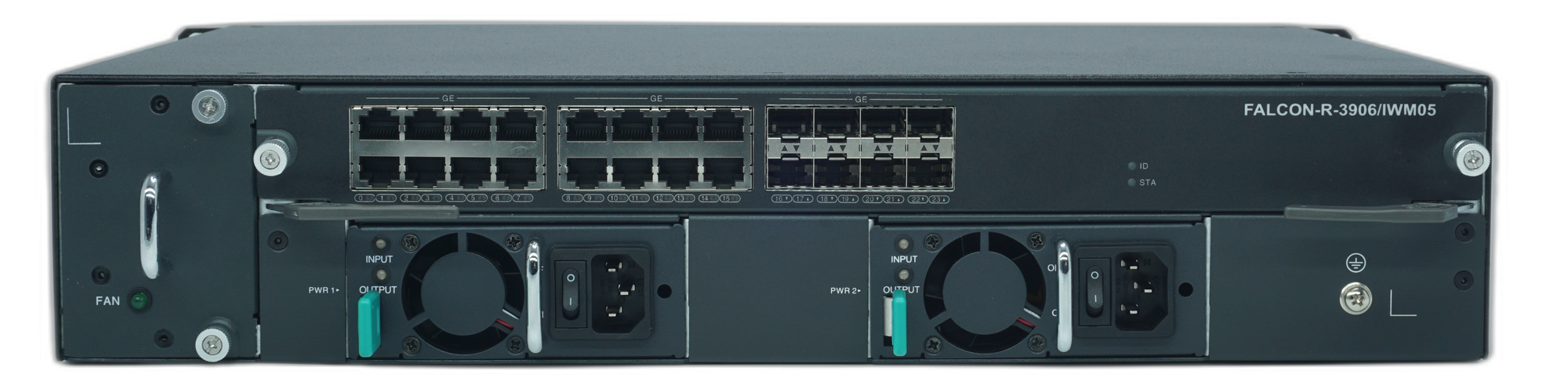

FALCON-R-3906 view 2

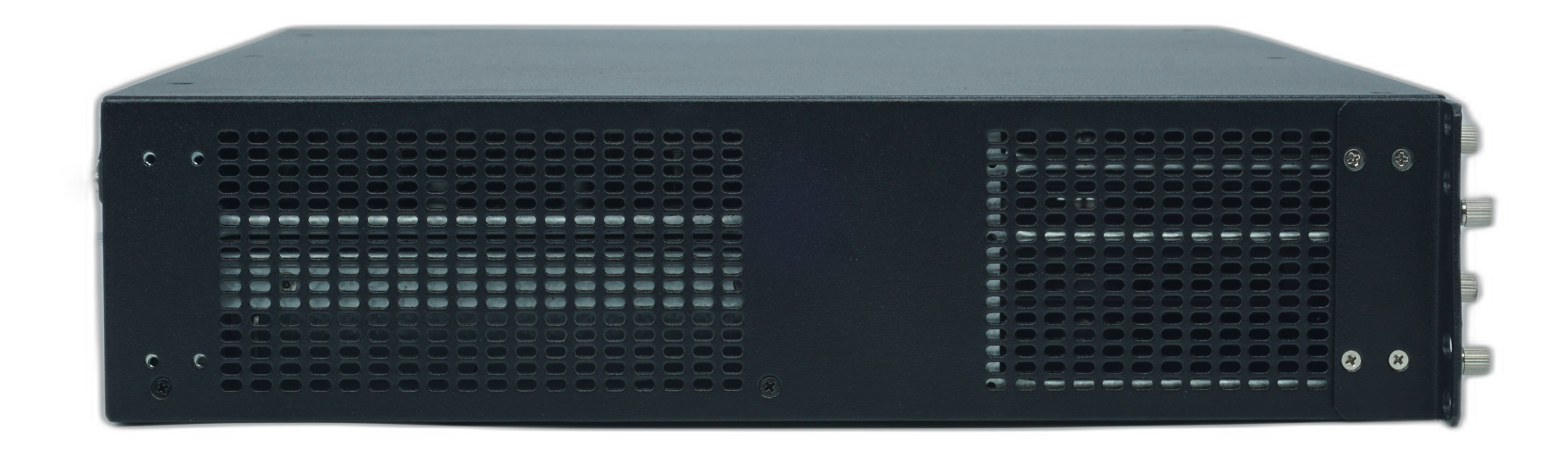

FALCON-R-3906 view 3

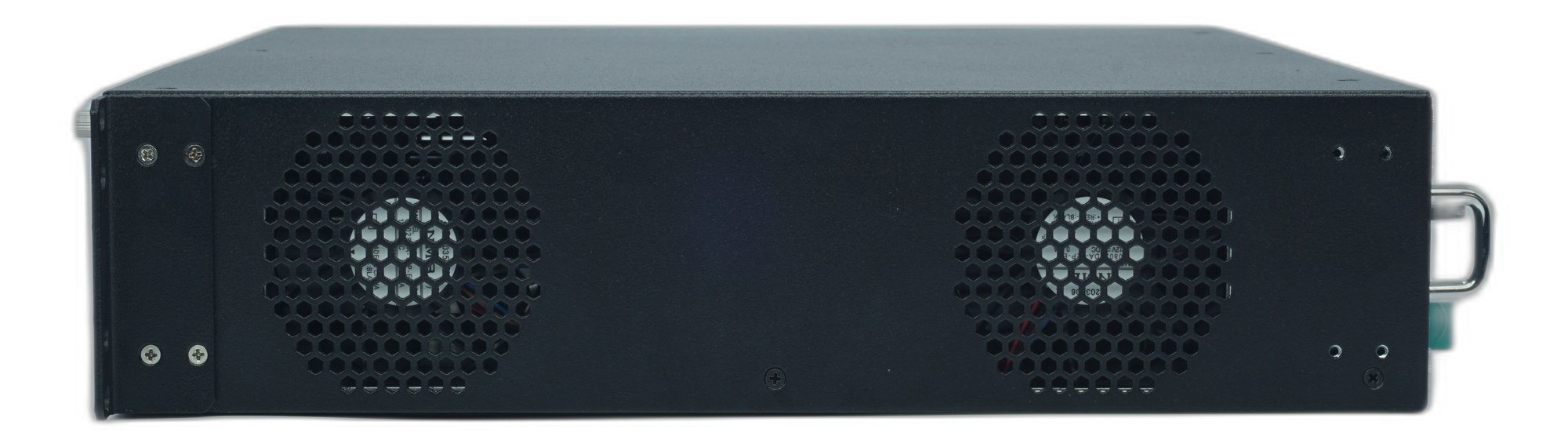

FALCON-R-3906 view 4
10G FALCON-R-3906

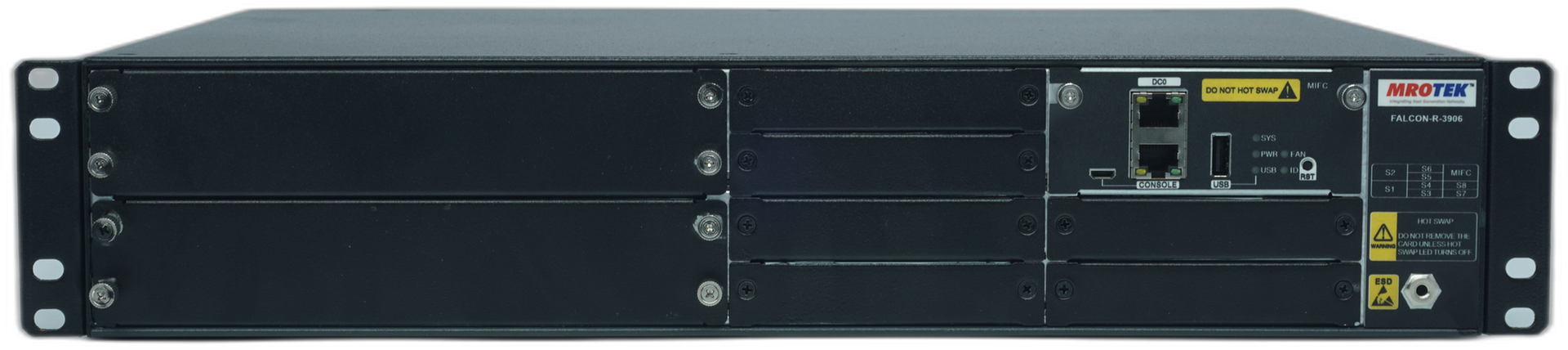

FALCON-R-3906
Overview
Falcon-R-3906 and associated model is next-generation enterprise-class access router. Supporting routing, QoS, security, provide the flexible access modes, secure and high-efficiency service experience for the users. Supporting Modular card with legacy interface. Application includes enterprise, Head Quarter and Branch routing.
16× GE RJ45
Copper
2× 10GE fibre
WAN
24× GbE (optional card)
LAN
OSPF, BGP, RIP
Routing
Request Datasheet
Specifications
  • 16× GE copper RJ45 + 8× GE fibre WAN + 2× 10GE fibre WAN (base, via IWM10 integrated module)
  • Optional 24-port GbE LAN expansion card (FALCON-R-3906/LAN-24)
  • Modular card slots supporting legacy interfaces — E1, V.35
  • 1× USB interface
  • Built-in AC power supply
  • Static route, RIP, OSPFv2, BGP, IS-IS, IRMP
  • DHCP server, DHCP client, DHCP relay
  • PIM-SM, PIM-SSM, PIM-DM, PIM-SDM, IGMP v1/v2/v3 multicast routing
  • IPv4 & IPv6 dual stack
  • IPSec VPN, GRE VPN, L2TP VPN
  • Console, Telnet, SSH 2.0, Web GUI
  • SNMP v1/v2/v3
  • TR-069, NetFlow
  • ACL, NAT, L2TP, GRE, PBR, AAA, SSH, IPSec VPN
  • Storm control
  • Authentication — IEEE 802.1x, RADIUS and TACACS
  • Traffic shaping
  • FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP
  • CAR, H-QoS
  • VRRP, VBRP, Track, BFD
  • 16× GE copper RJ45 + 8× GE fibre WAN + 2× 10GE fibre WAN (base, via IWM10 integrated module)
  • Optional 24-port GbE LAN expansion card (FALCON-R-3906/LAN-24)
  • Modular card slots supporting legacy interfaces — E1, V.35
  • 1× USB interface
  • Built-in AC power supply
  • Static route, RIP, OSPFv2, BGP, IS-IS, IRMP
  • DHCP server, DHCP client, DHCP relay
  • PIM-SM, PIM-SSM, PIM-DM, PIM-SDM, IGMP v1/v2/v3 multicast routing
  • IPv4 & IPv6 dual stack
  • IPSec VPN, GRE VPN, L2TP VPN
  • Console, Telnet, SSH 2.0, Web GUI
  • SNMP v1/v2/v3
  • TR-069, NetFlow
  • ACL, NAT, L2TP, GRE, PBR, AAA, SSH, IPSec VPN
  • Storm control
  • Authentication — IEEE 802.1x, RADIUS and TACACS
  • Traffic shaping
  • FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP
  • CAR, H-QoS
  • VRRP, VBRP, Track, BFD
Ordering Information
  • FALCON-R-3906/CHS: 2U height, 1 Console Port, 1 USB Port, 1 Service Engine Slot, 6 Slots, 2 WAN Slots, 2G Memory, 2 Power Slots, 1 Fan Slot.
  • FALCON-R-3906/IWM10: WAN integrated module with integrated 16GE-T + 8GE-F + 2×10GE WAN ports.
  • FALCON-R-3906/P/AC: Power Module, 250W, 100-240V
  • FALCON-R-3906/FAN: FAN Module
  • FALCON-R-3906/IWM05: WAN integrated module with integrated 16GE-T + 8GE-F ports.
  • FALCON-R-3906/IWM40: WAN integrated module with integrated 4×10GE Combo + 4×GE + 4×Gig Combo.
  • FALCON-R-3906/4E1-CH: Four-port channelized E1 module
  • FALCON-R-3906/2SV35: Two-port high-speed V.35 serial port module
  • FALCON-R-3906/4GE: Four-port Gigabit Ethernet electric interface WAN module
  • FALCON-R-3906/4GF: Four-port Gigabit Ethernet fibre interface WAN module
  • FALCON-R-3906/155M: One-port 155M OC3 POS module
  • FALCON-R-3906/LAN-24: 24-port Giga Ethernet electrical ports
Certifications TEC TTP CE FCC RoHS NCCS

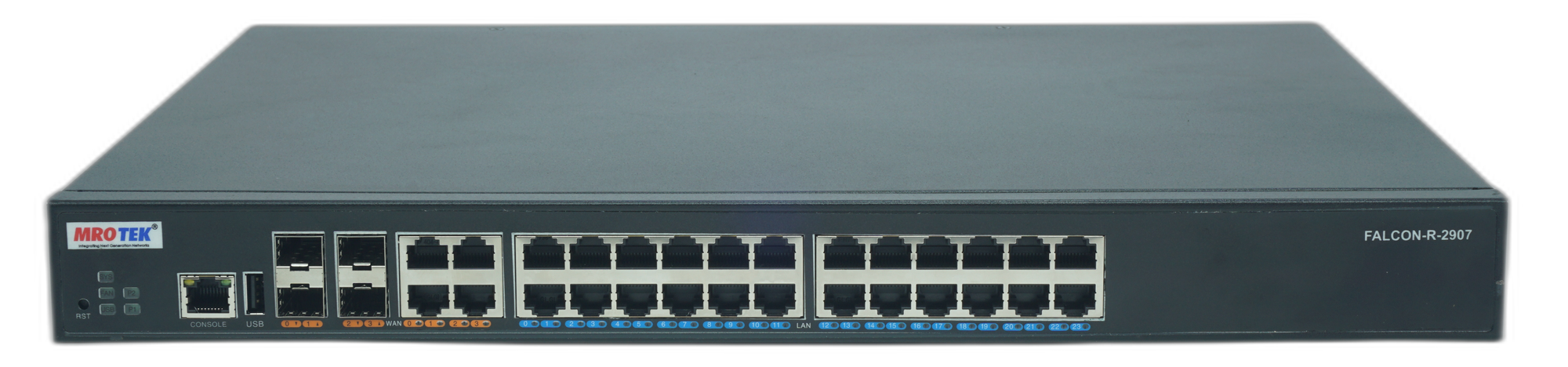

FALCON-R-2907 view 1

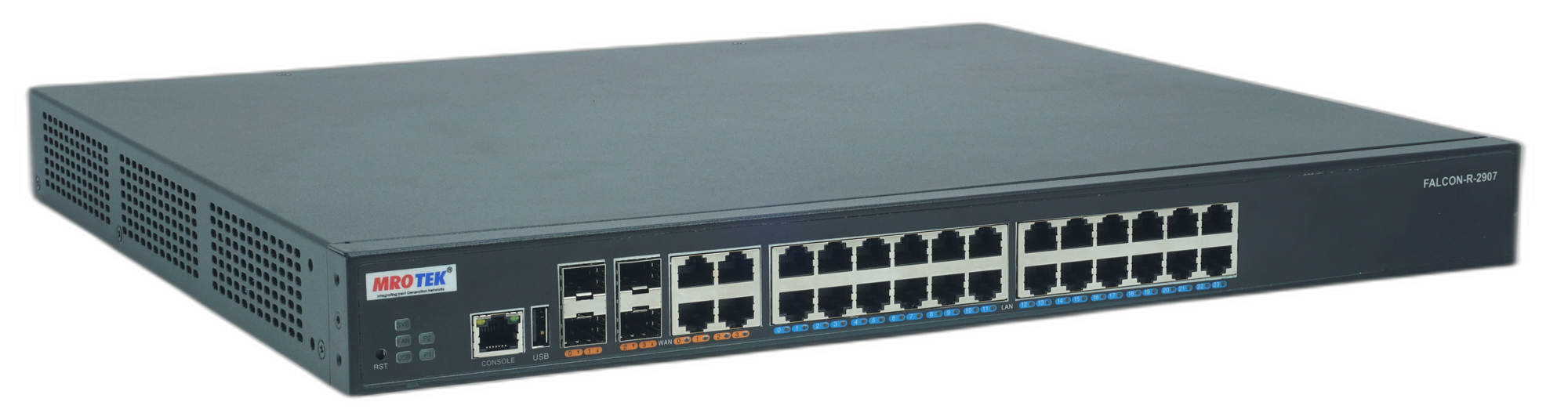

FALCON-R-2907 view 2

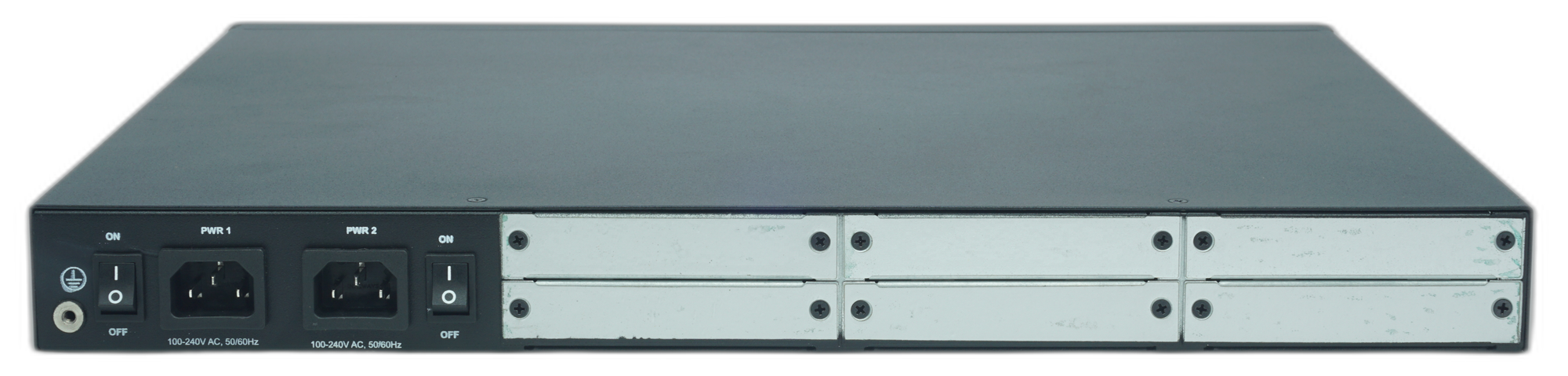

FALCON-R-2907 view 3

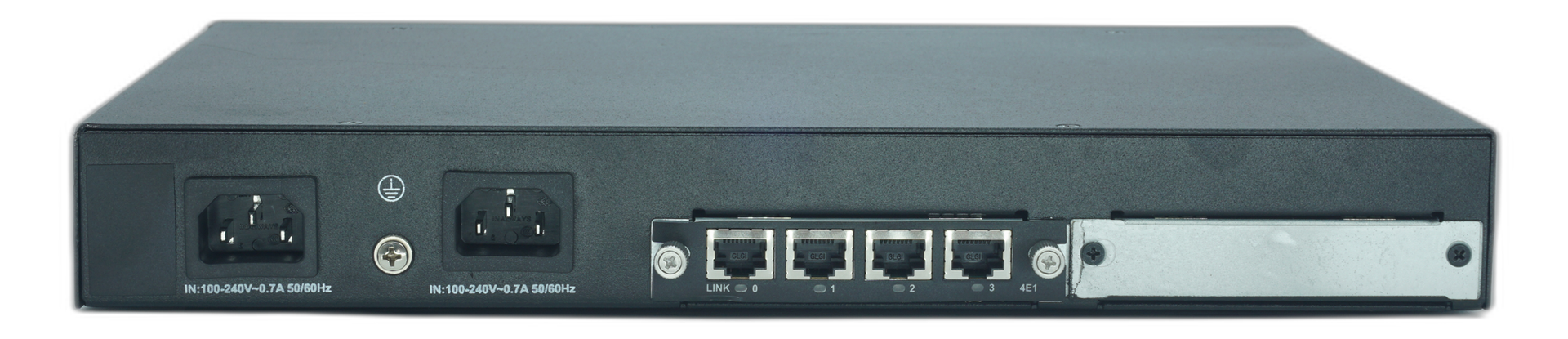

FALCON-R-2907 view 4
New FALCON-R-2907
FALCON-R-2907
Overview
FALCON-R-2907 is a next-generation enterprise-class access router supporting routing, QoS, and security, with flexible access modes for a secure, high-efficiency service experience. Four modular slots support legacy E1/V.35 interfaces or GbE electrical/fibre WAN expansion, for enterprise and government branch offices.
24× GbE
LAN
4× GbE Combo
WAN
4 slots — E1/V.35/GbE
Modular
OSPF, BGP, IS-IS
Routing
Request Datasheet
Specifications
  • 24× 10/100/1000M GbE LAN ports
  • 4× Gigabit Ethernet combo WAN ports
  • 4× modular expansion slots — 4-port E1 (unchannelized), 2-port V.35, 4-port GbE electrical WAN, or 4-port GbE fibre WAN
  • 1× USB interface
  • Built-in dual AC power supply
  • Static route, RIP v1/v2, OSPF, BGP, IS-IS
  • ECMP, route policy, recursive route
  • Multicast — IGMP v1/v2/v3, IGMP Snooping, PIM-DM/SM/SDM/SSM, DVMRP, MSDP
  • Dual stack — IPv4 & IPv6
  • ACL — Standard IP, Extended IP, Standard MAC, Ethernet protocol
  • VPN — MPLS/VPLS, L2TP, GRE, IPSec, IKE, RSA
  • NAT — static NAT, dynamic NAT, static NAPT, dynamic NAPT
  • Authentication — local, RADIUS, TACACS+, Portal, 802.1x, MAC authentication
  • DDoS interception — ICMP Flood, Smurf, Fraggle, LAND, SYN Flood attacks
  • Flow classification by port, MAC address, IP address, IP/DSCP priority, TCP/UDP port, protocol type
  • CAR, LR traffic policing
  • PQ, FQ, CQ, CBWFQ, LLQ queuing
  • RED, WRED, GTS congestion control
  • BFD for BGP/IS-IS/OSPF/VRRP
  • VRRP, Keepalive Gateway, interface backup mode
  • Bandwidth-based and user-based (IP) load balance and backup
  • IP FRR, TE FRR
  • Console, Telnet, HTTP/Web
  • SNMP v1/v2/v3, MIB, RMON, SYSLOG
  • DHCP Server, DHCP Client, DHCP Relay, DNS, DDNS, FTP Server, FTP Client
  • TR-069, NetFlow, NTP, Ping, Trace, IP Accounting
  • 24× 10/100/1000M GbE LAN ports
  • 4× Gigabit Ethernet combo WAN ports
  • 4× modular expansion slots — 4-port E1 (unchannelized), 2-port V.35, 4-port GbE electrical WAN, or 4-port GbE fibre WAN
  • 1× USB interface
  • Built-in dual AC power supply
  • Static route, RIP v1/v2, OSPF, BGP, IS-IS
  • ECMP, route policy, recursive route
  • Multicast — IGMP v1/v2/v3, IGMP Snooping, PIM-DM/SM/SDM/SSM, DVMRP, MSDP
  • Dual stack — IPv4 & IPv6
  • ACL — Standard IP, Extended IP, Standard MAC, Ethernet protocol
  • VPN — MPLS/VPLS, L2TP, GRE, IPSec, IKE, RSA
  • NAT — static NAT, dynamic NAT, static NAPT, dynamic NAPT
  • Authentication — local, RADIUS, TACACS+, Portal, 802.1x, MAC authentication
  • DDoS interception — ICMP Flood, Smurf, Fraggle, LAND, SYN Flood attacks
  • Flow classification by port, MAC address, IP address, IP/DSCP priority, TCP/UDP port, protocol type
  • CAR, LR traffic policing
  • PQ, FQ, CQ, CBWFQ, LLQ queuing
  • RED, WRED, GTS congestion control
  • BFD for BGP/IS-IS/OSPF/VRRP
  • VRRP, Keepalive Gateway, interface backup mode
  • Bandwidth-based and user-based (IP) load balance and backup
  • IP FRR, TE FRR
  • Console, Telnet, HTTP/Web
  • SNMP v1/v2/v3, MIB, RMON, SYSLOG
  • DHCP Server, DHCP Client, DHCP Relay, DNS, DDNS, FTP Server, FTP Client
  • TR-069, NetFlow, NTP, Ping, Trace, IP Accounting
