PINE Series
PINE-1(V3) E1 inverse multiplexer — transports Ethernet LAN traffic over a single E1 link for PDH network deployments.

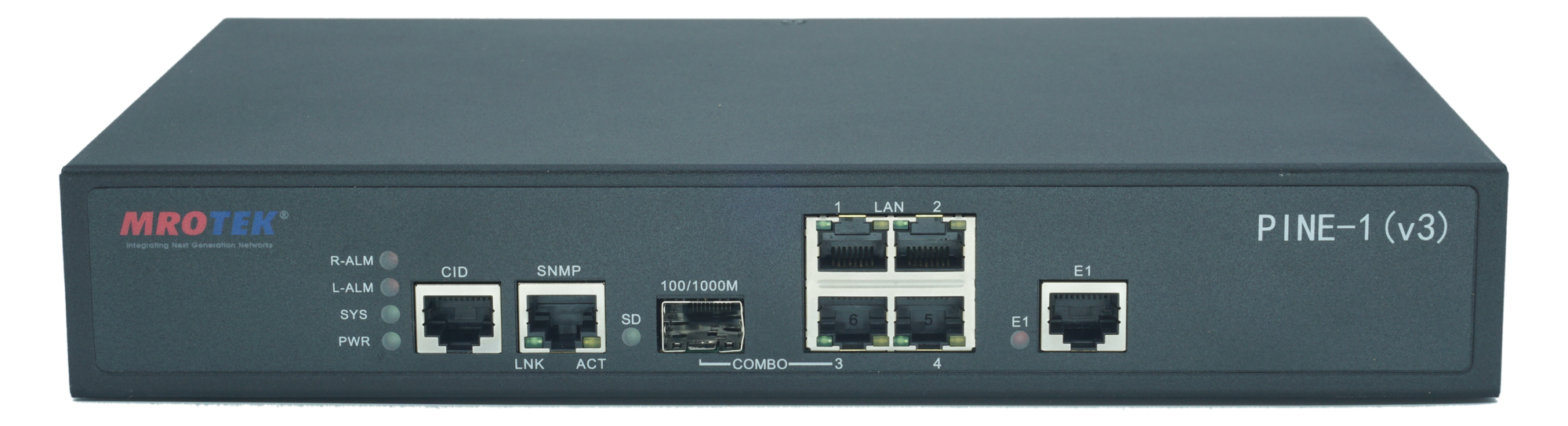

PINE-1(V3)
1× E1 (RJ45) + 4× LAN + 1× 100/1000M Combo · Nx64 Kbps (N=1–31), up to 1.984 Mbps · ITU-T G.703 / G.704 / G.8040
Models
PINE-1(V3)
Overview
PINE-1 is an E1 inverse multiplexer enabling the transport of high-speed data broadband services over E1 links. Using G.704 and G.8040 standards to convert Ethernet to E1 by GFP format mapping, it aggregates bandwidth as Nx64 Kbps (maximum N=31) with maximum payload bandwidth of 1.984 Mbps over 10/100/1000Base-T or fibre LAN user interfaces. The device is managed locally via console or remotely through Telnet/SNMP, with Administration, Maintenance, and Provisioning (OAM&P) carried over a 16 Kbps embedded operation channel (EOC) running through the inverse link. Offers a choice of AC, DC, or AC+DC power for field deployment flexibility.
1× E1 (RJ45) + 4× LAN + 1× 100/1000M Combo
Ports
Nx64 Kbps (N=1–31), up to 1.984 Mbps
Data Rate
ITU-T G.703 / G.704 / G.8040
Standard
AC / DC / AC+DC
Power
Specifications
- Data rate: Nx64 Kbps (maximum N=31), 16 Kbps EOC channel embedded in SA4-SA6 spare bits
- Maximal delay: 64 ms (512 frame buffer)
- Standard: ITU-T G.703, G.704
- No. of E1 output: 1, scaled down automatically per E1 alarms
- Line rate: 2048 Kbps ± 50 PPM
- Clock mode: Internal, Recovery
- Line code: HDB3
- Framing: PCM31, PCM31C, PCM30, PCM30C
- Impedance: Balanced 120Ω ± 5% resistive
- Connection type: RJ-45
- Standard: IEEE 802.3 / IEEE 802.3u
- Interface: 10/100/1000M Base-T
- Data rate: Nx64 Kbps (N=1–31)
- Bridging: IEEE 802.1d transparent bridge
- Supports VLAN ID, Q-in-Q, and up to 2048 MAC address learning
- Connector type: RJ45, 4 ports
- Maximum packet size up to 9K jumbo frame
- One 100/1000M Combo port — 100Base-FX or 1000Base-FX fiber
- Console/RS232 via RJ-45
- 16 Kbps EOC channel for remote configuration and OAM&P
- SNMP/Telnet management via RJ45
- Loopback diagnostics: LL, RL, and NL (local payload loopback)
- Dying gasp for remote power failure detection
- AC / DC / AC+DC field-selectable power
- AC: 90–260V @ 50–60 Hz, 0.2A
- DC: -36 to -72V
- Data rate: Nx64 Kbps (maximum N=31), 16 Kbps EOC channel embedded in SA4-SA6 spare bits
- Maximal delay: 64 ms (512 frame buffer)
- Standard: ITU-T G.703, G.704
- No. of E1 output: 1, scaled down automatically per E1 alarms
- Line rate: 2048 Kbps ± 50 PPM
- Clock mode: Internal, Recovery
- Line code: HDB3
- Framing: PCM31, PCM31C, PCM30, PCM30C
- Impedance: Balanced 120Ω ± 5% resistive
- Connection type: RJ-45
- Standard: IEEE 802.3 / IEEE 802.3u
- Interface: 10/100/1000M Base-T
- Data rate: Nx64 Kbps (N=1–31)
- Bridging: IEEE 802.1d transparent bridge
- Supports VLAN ID, Q-in-Q, and up to 2048 MAC address learning
- Connector type: RJ45, 4 ports
- Maximum packet size up to 9K jumbo frame
- One 100/1000M Combo port — 100Base-FX or 1000Base-FX fiber
- Console/RS232 via RJ-45
- 16 Kbps EOC channel for remote configuration and OAM&P
- SNMP/Telnet management via RJ45
- Loopback diagnostics: LL, RL, and NL (local payload loopback)
- Dying gasp for remote power failure detection
- AC / DC / AC+DC field-selectable power
- AC: 90–260V @ 50–60 Hz, 0.2A
- DC: -36 to -72V
Ordering Information
- PINE-1(V3) — Managed Ethernet over E1 device with 1× E1 port, 4× Ethernet ports & AC & DC power
