PIXIE LAN Extenders
Managed G.SHDSL LAN extenders — Ethernet over copper for branch sites.
Explore models
WITE LITE G.SHDSL Modems
G.SHDSL modems with TC-PAM — E1, V.35, and 4-wire LAN extender variants.
Explore models
Modems
PIXIE LAN Extenders
SHDSL Router provides a broadband transmission with bandwidth up to 5.696Mbps (15Mbps for PAM128) over a single pair of copper wires for LAN connection between two LAN.
G.SHDSL Broadband
Up to 5.696 Mbps standard, 15 Mbps with PAM128 encoding, over a single copper pair.
ITU/ETSI/IEEE Compliant
Fully compliant with ETSI SHDSL/SHDSL.bis, ITU-T G.SHDSL/G.998.2 bonding, and IEEE EFM.
IP Routing & Bridging
Static routing, RIP v1/v2, and IEEE 802.1D transparent learning bridge.
Secure Management Access
Web GUI and CLI via local console or Telnet, password-protected access.

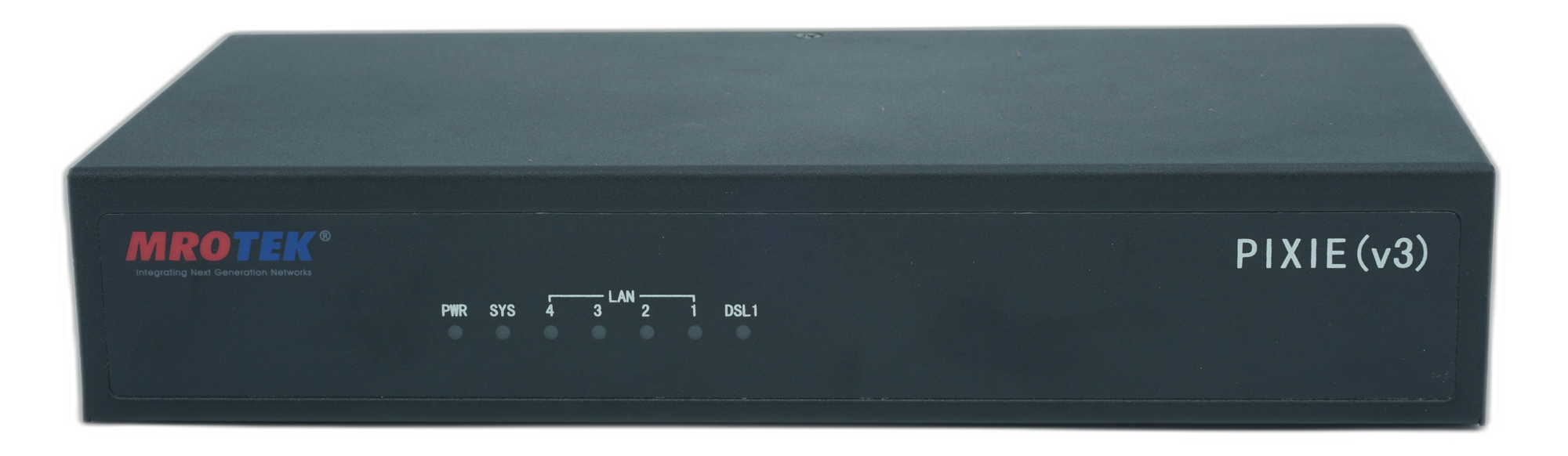

PIXIE
4× 10/100BASE-T · 1× G.SHDSL (2-wire or 4-wire) · Up to 15 Mbps (PAM128)
Modems
WITE LITE G.SHDSL Modems
WITELITE series, G.SHDSL modem transports multi mega bit stream over one pair of copper wires using TC-PAM technology. This modem supports multiple data rates ranging from 64 Kbps to 2 Mbps.
G.SHDSL TC-PAM
64 Kbps to 2 Mbps (up to 30 Mbps bonded 4-wire) over ordinary copper pairs using TC-PAM line coding.
E1 / V.35 / LAN Variants
E1 (120Ω RJ45), V.35 (DB25F), or 4-wire bonded LAN extender interface variants.
Embedded Ops Channel
In-band Embedded Operation channel for remote unit control and monitoring.
Loopback Diagnostics
Local/remote AL/DL loopbacks and DSL PRBS BER testing with SNR/ES/SES/UAS reporting.
Models

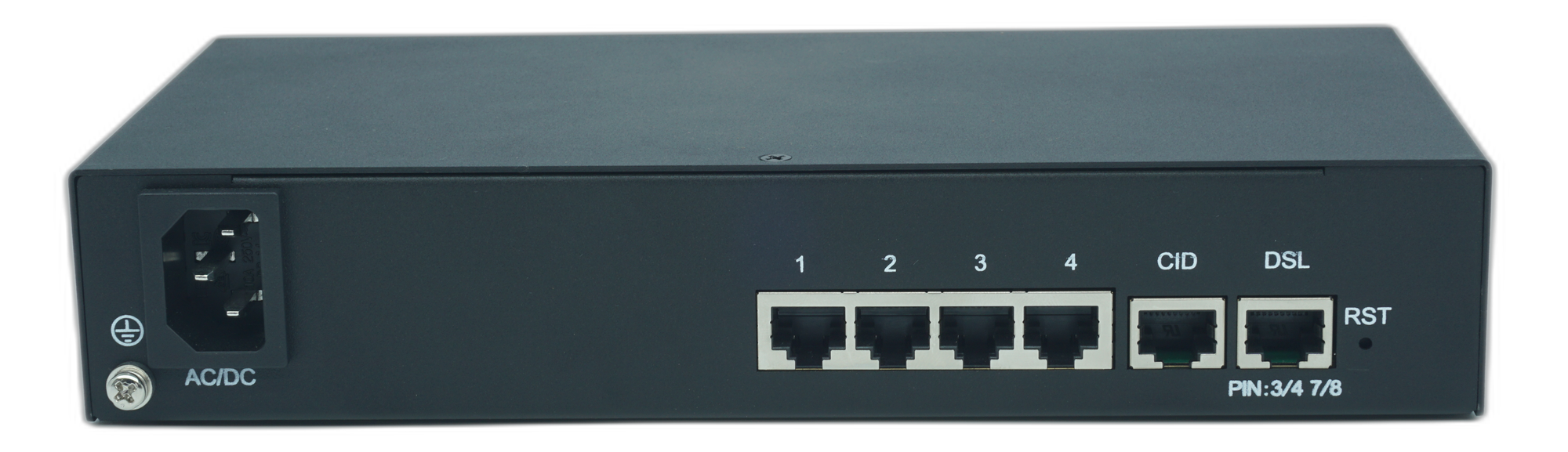

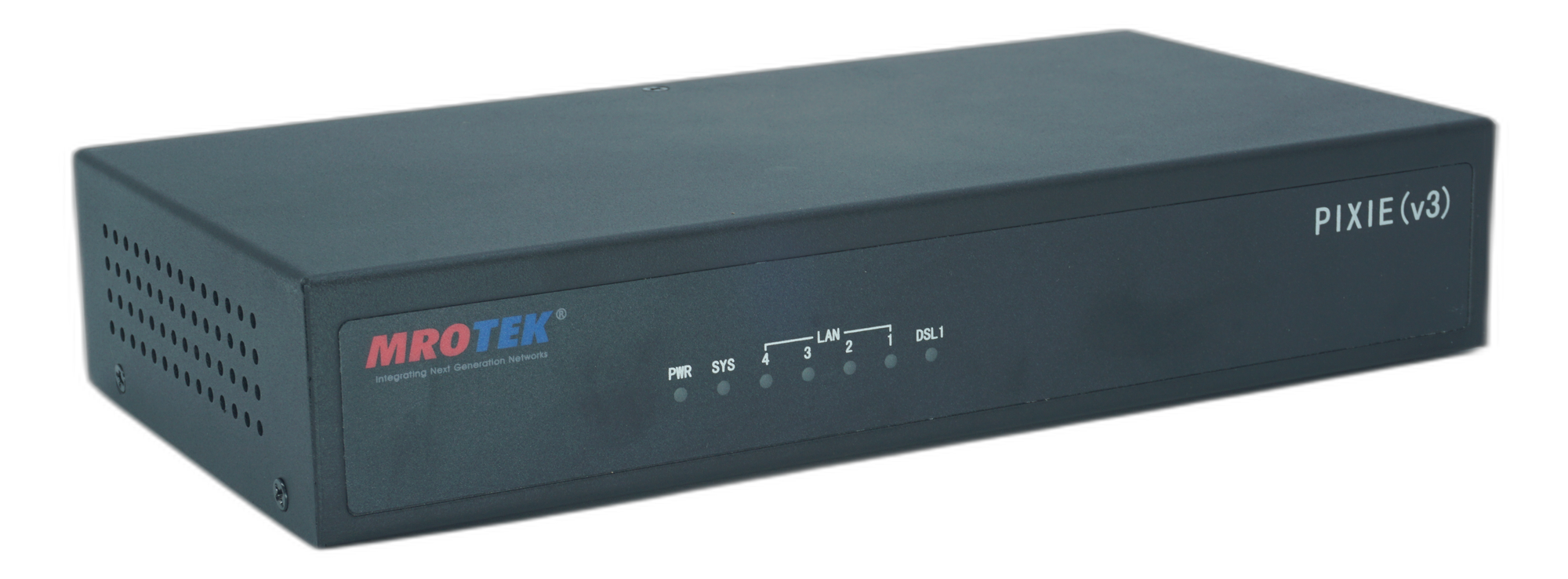

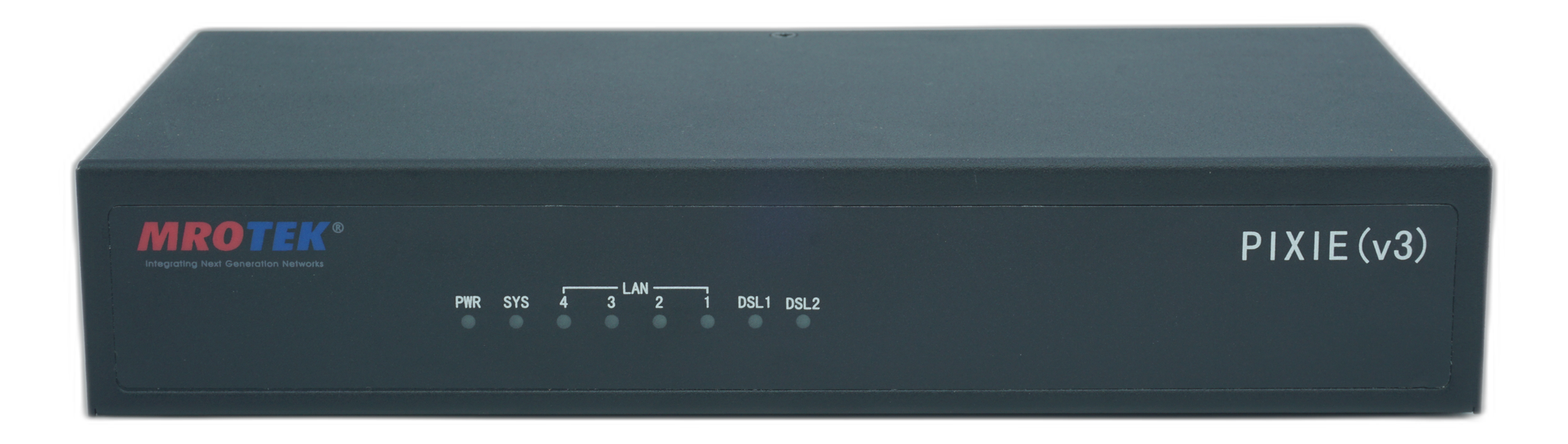

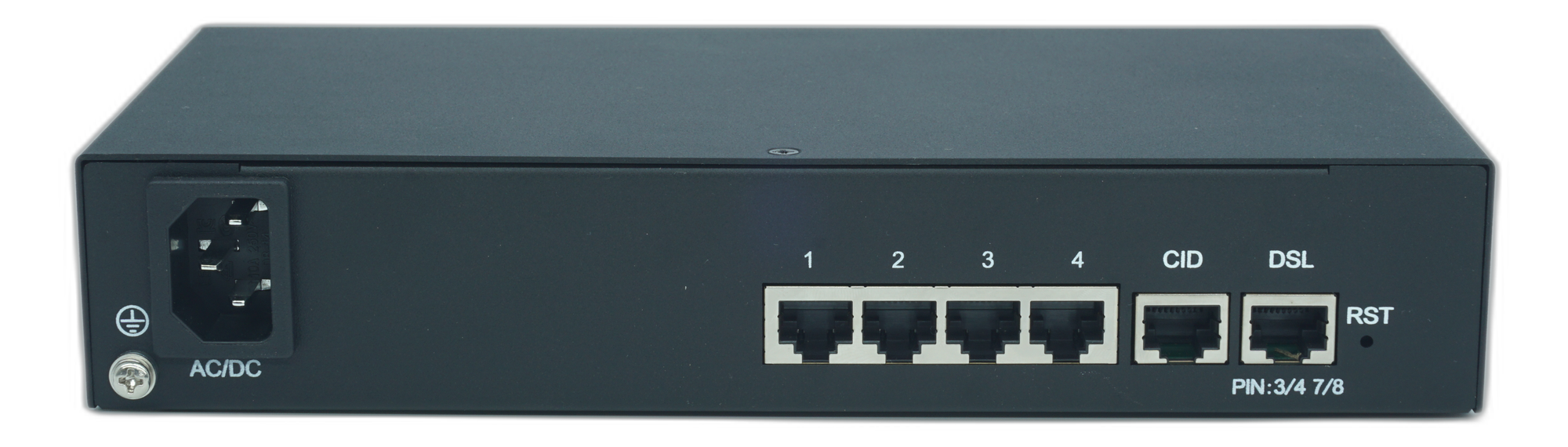

PIXIE
Overview
SHDSL (Single-pair High-bit-rate Digital Subscriber Line) Router, provides a broadband transmission with bandwidth up to 5.696Mbps (15Mbps for PAM128) over copper wires for LAN connection between two local area networks. PIXIE(v2) conforms to ITU-T G.991.2, the GSHDSL requirements — available as a single-pair (2-wire) or dual-pair bonded (4-wire) variant, offering a cost-effective symmetrical broadband solution for bandwidth-hungry applications such as LAN-to-LAN connection and Internet.
4× 10/100BASE-T
LAN Ports
1× G.SHDSL (2-wire or 4-wire)
WAN
Up to 15 Mbps (PAM128)
Bandwidth
AC + DC
Power
Specifications
- 4× 10/100BASE-T RJ-45 LAN ports
- 1× G.SHDSL RJ-45 WAN port — 2-wire or 4-wire, order-code dependent
- 1× RJ-45 console port for local configuration and management
- Bandwidth up to 5.696 Mbps standard, up to 15 Mbps with PAM128 encoding
- Fully compliant with ETSI (SHDSL, SHDSL.bis), ITU (G.SHDSL, G.SHDSL.bis, G.998.2/g.bond), and IEEE (EFM)
- Line code: TC-PAM 16/32/64/128
- M-pair mode for 1 or 2 pairs
- ITU-T G.991.2 Annex A, B
- STU-C/STU-R mode selectable
- Impedance: 135 ohm
- SNR/attenuation value calculation
- ATM Adaptation Layer type 5 (AAL5)
- VC multiplexing and LLC encapsulation
- Multi-protocol over AAL5 (RFC 1483 bridged PDU), up to 5 PVCs
- IP/TCP/UDP/ARP/ICMP protocol support
- IP routing with static routing and RIPv1/RIPv2 (RFC 1058/2453)
- IEEE 802.1D transparent learning bridge
- Up to 1K MAC learning addresses
- Web-based GUI for express setup, configuration, and management
- CLI interface via local console and Telnet
- Password-protected management
- Software upgrade via HTTP
- AC 90-260V (47-63Hz) with DC 36-72V backup input (AC+DC)
- Operating temperature: 0°C to 45°C
- Storage temperature: -10°C to 70°C
- 4× 10/100BASE-T RJ-45 LAN ports
- 1× G.SHDSL RJ-45 WAN port — 2-wire or 4-wire, order-code dependent
- 1× RJ-45 console port for local configuration and management
- Bandwidth up to 5.696 Mbps standard, up to 15 Mbps with PAM128 encoding
- Fully compliant with ETSI (SHDSL, SHDSL.bis), ITU (G.SHDSL, G.SHDSL.bis, G.998.2/g.bond), and IEEE (EFM)
- Line code: TC-PAM 16/32/64/128
- M-pair mode for 1 or 2 pairs
- ITU-T G.991.2 Annex A, B
- STU-C/STU-R mode selectable
- Impedance: 135 ohm
- SNR/attenuation value calculation
- ATM Adaptation Layer type 5 (AAL5)
- VC multiplexing and LLC encapsulation
- Multi-protocol over AAL5 (RFC 1483 bridged PDU), up to 5 PVCs
- IP/TCP/UDP/ARP/ICMP protocol support
- IP routing with static routing and RIPv1/RIPv2 (RFC 1058/2453)
- IEEE 802.1D transparent learning bridge
- Up to 1K MAC learning addresses
- Web-based GUI for express setup, configuration, and management
- CLI interface via local console and Telnet
- Password-protected management
- Software upgrade via HTTP
- AC 90-260V (47-63Hz) with DC 36-72V backup input (AC+DC)
- Operating temperature: 0°C to 45°C
- Storage temperature: -10°C to 70°C
Ordering Information
- PIXIE-2R — 4× FE LAN + 1× G.SHDSL (2-wire) WAN, single-pair copper, AC+DC power
- PIXIE-4R — 4× FE LAN + 1× G.SHDSL (4-wire) WAN, dual-pair bonded copper, AC+DC power
Certifications

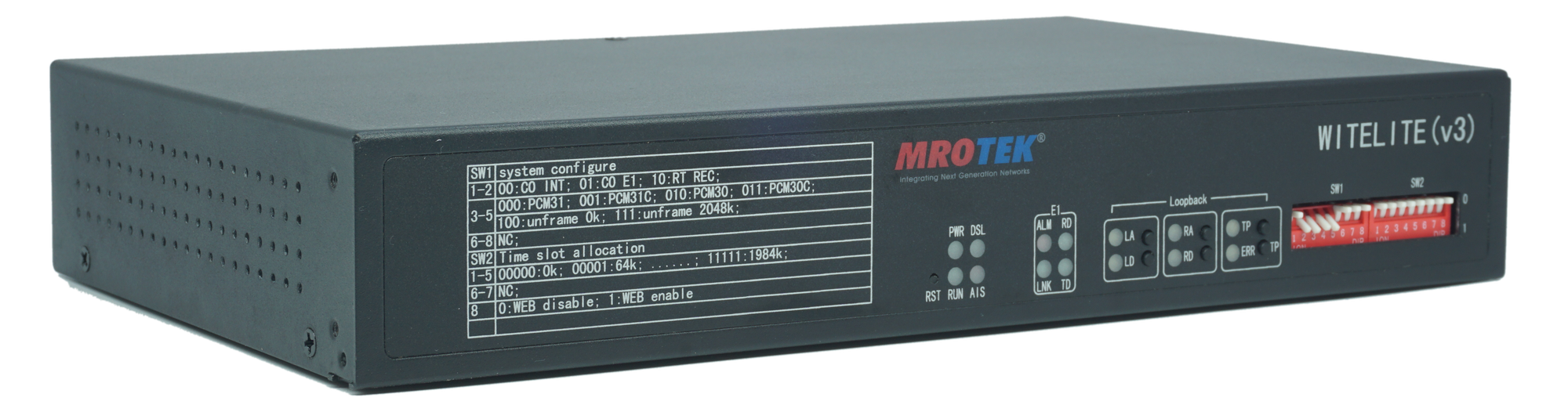

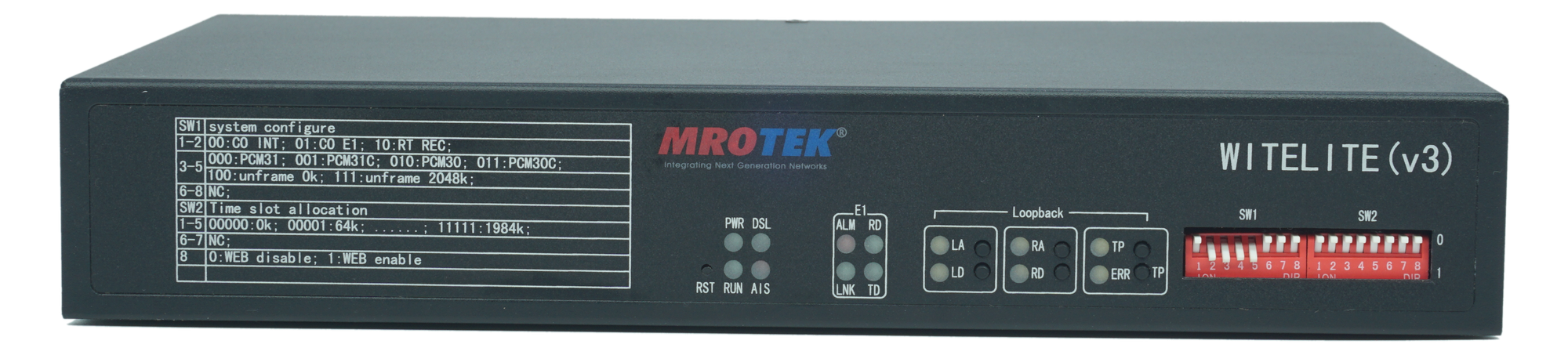

WITE LITE
Overview
WITELITE series G.SHDSL modem, transports multi mega bit stream over one pair of copper wires using TC-PAM technology. This modem supports multiple data rates ranging from 64 Kbps to 2 Mbps.The WITELITE series uses in-band Embedded Operation channel for controlling and monitoring the remote unit. The comprehensive diagnostics function developed includes G.SHDSL, E1 line performance monitoring in-band local and remote loop backs and real time alarm report.
G.SHDSL (TC-PAM)
Technology
E1 / V.35 / 4-Wire LAN
Variants
64 Kbps – 30 Mbps
Data Rate
AC/DC
Power
Specifications
- E1 variant: 1× E1 port (120Ω, RJ45) + 1× G.SHDSL line port, DIP switch configuration
- V.35 variant: 1× V.35 port (DB25F, DB25-to-MR34 adaptation cable provided) + 1× G.SHDSL line port
- G.703 co-directional data interface option: 64K co-directional, RJ-45
- 4-wire LAN extender variant: 1× LAN (Ethernet) port + 2× G.SHDSL line ports (bonded)
- Line rate: 2048 KHz ± 50 ppm
- Line code: HDB3
- Framing: PCM31, PCM30, PCM31C, PCM30C, and unframed
- Full E1 or fractional E1 operation
- Data rate: 64 Kbps to 2048 Kbps (Nx64Kbps, N=1-32)
- G.SHDSL, TC-PAM (16/32/128) line coding, selectable
- V.35 variant data rate: 64 Kbps to 4608 Kbps
- 4-wire LAN extender: bonded 4-wire operation for up to 30 Mbps aggregate bandwidth
- G.SHDSL line rate: 192 Kbps to 15,000 Kbps for 2-wire
- ITU-T G.991.2 Annex A (default), Annex B
- Impedance: 135Ω ± 5%
- Protection: ITU-T K.20, K.21, and IEC 60950
- EN 55022 and EN 55024 compliant; EN 60950 safety compliant; surge immunity
- Local and remote AL/DL loopbacks via front-panel loopback buttons
- DSL PRBS BER testing
- SNR, LOSW, ES, SES, and UAS reporting for DSL loops
- In-band Embedded Operation Channel (EOC) for remote-unit control and monitoring
- G.SHDSL and E1 line performance monitoring with real-time alarm reporting
- AC 90-260VAC (47-63Hz) or DC -36 to -72VDC — field-selectable AC and/or DC source
- Operating temp: 0°C to 50°C, humidity up to 95% non-condensing
- E1 variant: 1× E1 port (120Ω, RJ45) + 1× G.SHDSL line port, DIP switch configuration
- V.35 variant: 1× V.35 port (DB25F, DB25-to-MR34 adaptation cable provided) + 1× G.SHDSL line port
- G.703 co-directional data interface option: 64K co-directional, RJ-45
- 4-wire LAN extender variant: 1× LAN (Ethernet) port + 2× G.SHDSL line ports (bonded)
- Line rate: 2048 KHz ± 50 ppm
- Line code: HDB3
- Framing: PCM31, PCM30, PCM31C, PCM30C, and unframed
- Full E1 or fractional E1 operation
- Data rate: 64 Kbps to 2048 Kbps (Nx64Kbps, N=1-32)
- G.SHDSL, TC-PAM (16/32/128) line coding, selectable
- V.35 variant data rate: 64 Kbps to 4608 Kbps
- 4-wire LAN extender: bonded 4-wire operation for up to 30 Mbps aggregate bandwidth
- G.SHDSL line rate: 192 Kbps to 15,000 Kbps for 2-wire
- ITU-T G.991.2 Annex A (default), Annex B
- Impedance: 135Ω ± 5%
- Protection: ITU-T K.20, K.21, and IEC 60950
- EN 55022 and EN 55024 compliant; EN 60950 safety compliant; surge immunity
- Local and remote AL/DL loopbacks via front-panel loopback buttons
- DSL PRBS BER testing
- SNR, LOSW, ES, SES, and UAS reporting for DSL loops
- In-band Embedded Operation Channel (EOC) for remote-unit control and monitoring
- G.SHDSL and E1 line performance monitoring with real-time alarm reporting
- AC 90-260VAC (47-63Hz) or DC -36 to -72VDC — field-selectable AC and/or DC source
- Operating temp: 0°C to 50°C, humidity up to 95% non-condensing
Ordering Information
- WL/E1/2W/AC/DC — E1 (RJ45, 120Ω) interface, 2-wire G.SHDSL, 64 Kbps–2048 Kbps, AC & DC power
- WL/V35/2W/AC/DC — V.35 (DB25F) interface, 2-wire G.SHDSL, 64 Kbps–4608 Kbps, AC & DC power
- WL/B/FE/LG/4W/AC/DC — LAN extender (Fast Ethernet) over 4-wire (bonded) G.SHDSL, up to 30 Mbps, AC & DC power
Certifications
Need a modem for E1, V.35, or LAN extension?
