Secure Router
FALCON EYE NGFW series — Is an advanced security appliance that goes beyond traditional firewall capabilities by integrating multiple security features into a single, cohesive platform.FALCON EYE are designed to address modern security threats more effectively and provide comprehensive protection for your network.
IPS / IDS Engine
Signature-based + anomaly-detection IPS with automatic signature updates and protocol-aware inspection.
Application Control
Layer 7 DPI with application signatures. Block, allow, or shape by application — not just port.
VPN Gateway
IPSec (IKEv1/v2) and SSL VPN for remote access and site-to-site connectivity.
Granular Bandwidth Policy
QoS and bandwidth policy enforced by source IP, user, MAC address, subnet, or user group.
Models

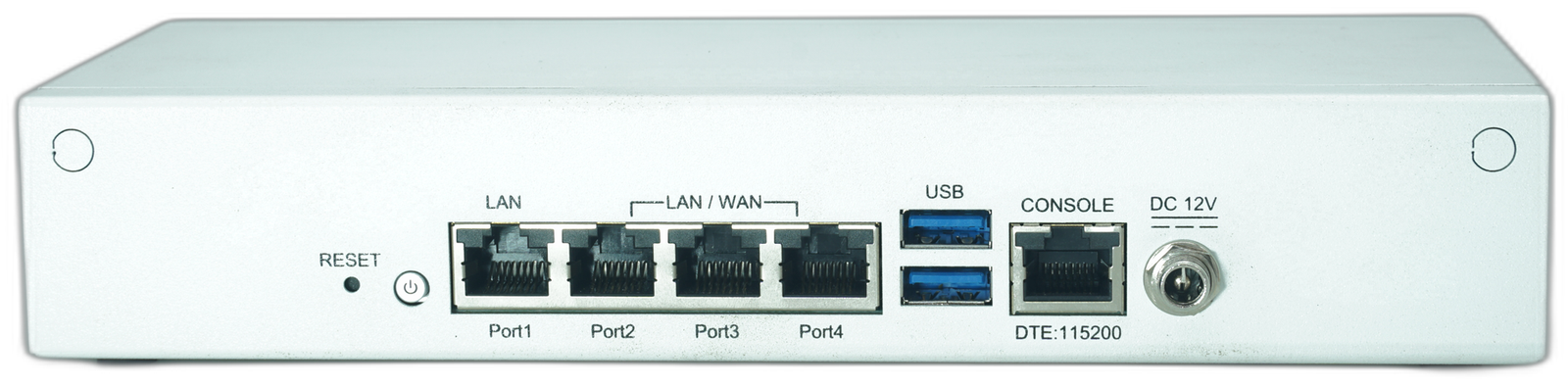

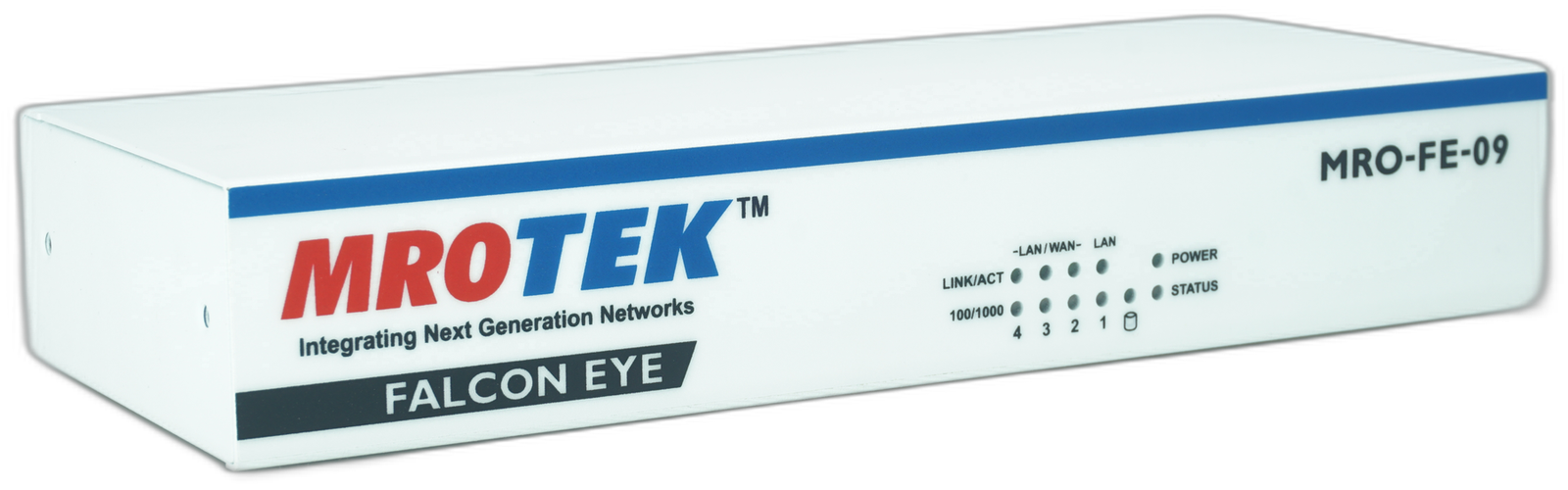

FALCON-EYE-09
Overview
Falcon-EYE-09 is an all-in-one Router with security that operates at gigabit speed up to 1.8 Gbps and carries several main categories across your network security deployments: Router security protection, policy auditing (anti-virus, In-Line IPS, content filtering, VPN bandwidth, and authentication), and easy management (bulletin board and Co-Defense). The web-based interface provides friendly and consistent user experience, auto firmware update, and multi-languages supported.
4× GbE
Ports
1.8 Gbps
NGFW
1.9 Gbps
IPS
1.5 Gbps
IPSec VPN
Specifications
- 4× Gigabit Ethernet data ports WAN/LAN
- 2× USB ports, 1× console port
- Memory: 2 GB
- Static, DHCP, PPPoE, and 3G/4G WAN support
- Authentication via RADIUS, AD, IMAP, POP3 server integration
- Multiple VLAN and zone setup, IEEE 802.1Q, IEEE 802.3ad
- QoS by source IP address and policy
- Bandwidth policy on a user/IP/MAC/subnet/user-group basis
- NGFW throughput (1518, TCP): 1.8 Gbps
- IPS throughput: 1.9 Gbps
- IPsec VPN throughput: 1.5 Gbps
- Integrated wizards for user-friendly setup
- Supports hardware interrupts to the CPU
- Uninterruptible Power System (UPS)
- Stateful and Deep Packet Inspection firewall
- Deployment in Gateway and Transparent mode
- Stops DoS; prevents DNS spoofing/flooding and SYN flooding
- Add IPv4/IPv6 addresses, URLs, or domains to a blacklist/whitelist
- Built-in default blacklist covering malicious, suspicious, and aggressive websites
- Multiple application categories — P2P, IM, VoIP, Web, Webmail, gaming, video, spyware, stock, and others
- SSL VPN, PPTP, L2TP, and IPsec VPN tunnel support
- Agent-based SSL VPN with two-factor authentication (2FA)
- 4× Gigabit Ethernet data ports WAN/LAN
- 2× USB ports, 1× console port
- Memory: 2 GB
- Static, DHCP, PPPoE, and 3G/4G WAN support
- Authentication via RADIUS, AD, IMAP, POP3 server integration
- Multiple VLAN and zone setup, IEEE 802.1Q, IEEE 802.3ad
- QoS by source IP address and policy
- Bandwidth policy on a user/IP/MAC/subnet/user-group basis
- NGFW throughput (1518, TCP): 1.8 Gbps
- IPS throughput: 1.9 Gbps
- IPsec VPN throughput: 1.5 Gbps
- Integrated wizards for user-friendly setup
- Supports hardware interrupts to the CPU
- Uninterruptible Power System (UPS)
- Stateful and Deep Packet Inspection firewall
- Deployment in Gateway and Transparent mode
- Stops DoS; prevents DNS spoofing/flooding and SYN flooding
- Add IPv4/IPv6 addresses, URLs, or domains to a blacklist/whitelist
- Built-in default blacklist covering malicious, suspicious, and aggressive websites
- Multiple application categories — P2P, IM, VoIP, Web, Webmail, gaming, video, spyware, stock, and others
- SSL VPN, PPTP, L2TP, and IPsec VPN tunnel support
- Agent-based SSL VPN with two-factor authentication (2FA)
Certifications

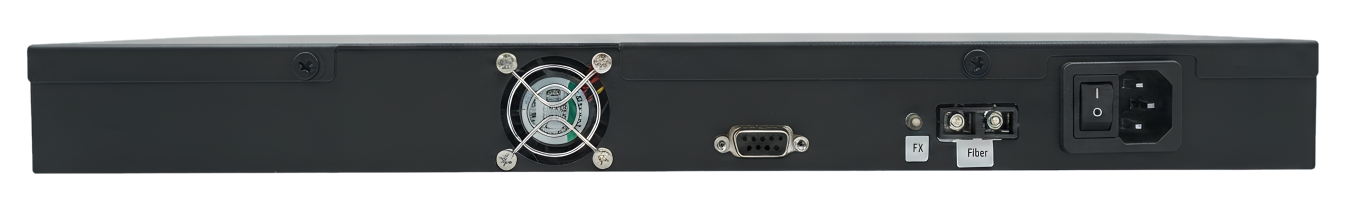

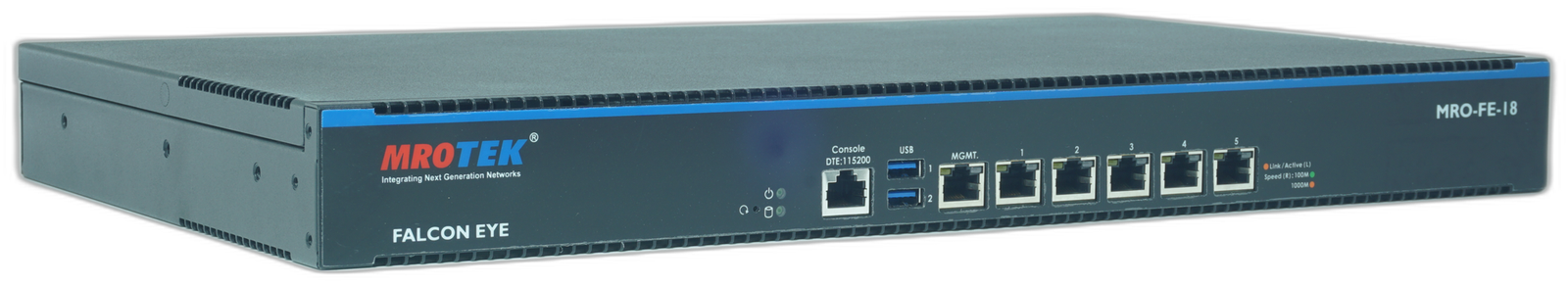

FALCON-EYE-18
Overview
Falcon-EYE-18 with advanced Routing and protection across your network security deployments: Deep Packet Inspection (DPI), IPS, SSL Inspection, Web Filtering, QoS, virus scanning, spam filtering and external authentication to prevent potential attack launched by hackers and legitimate authorized users from accessing network. Moreover, High Availability (HA) is supported to ensure smooth network operation.
6× GbE
Ports
3.6 Gbps
NGFW
3.9 Gbps
IPS
1.9 Gbps
IPSec VPN
Specifications
- 1× dedicated management Gigabit Ethernet port
- 5× Gigabit Ethernet data ports
- 2× USB ports, 1× console port
- Memory: 4 GB, 240 GB SSD
- Static, DHCP, PPPoE, and 3G/4G WAN support
- Authentication via RADIUS, AD, IMAP, POP3 server integration
- Multiple VLAN and zone setup, IEEE 802.1Q, IEEE 802.3ad
- QoS by source IP address and policy
- Bandwidth policy on a user/IP/MAC/subnet/user-group basis
- NGFW throughput (1518, TCP): 3.6 Gbps
- IPS throughput: 3.9 Gbps
- IPsec VPN throughput: 1.9 Gbps
- Integrated wizards for user-friendly setup
- Auto backup configuration file
- Supports hardware interrupts to the CPU
- Stateful and Deep Packet Inspection firewall
- Deployment in Gateway and Transparent mode
- Stops DoS; prevents DNS spoofing/flooding and SYN flooding
- Add IPv4/IPv6 addresses, URLs, or domains to a blacklist/whitelist
- Built-in default blacklist covering malicious, suspicious, and aggressive websites
- Multiple application categories — P2P, IM, VoIP, Web, Webmail, gaming, video, spyware, stock, and others
- SSL VPN, PPTP, L2TP, and IPsec VPN tunnel support
- Agent-based SSL VPN with two-factor authentication (2FA)
- 1× dedicated management Gigabit Ethernet port
- 5× Gigabit Ethernet data ports
- 2× USB ports, 1× console port
- Memory: 4 GB, 240 GB SSD
- Static, DHCP, PPPoE, and 3G/4G WAN support
- Authentication via RADIUS, AD, IMAP, POP3 server integration
- Multiple VLAN and zone setup, IEEE 802.1Q, IEEE 802.3ad
- QoS by source IP address and policy
- Bandwidth policy on a user/IP/MAC/subnet/user-group basis
- NGFW throughput (1518, TCP): 3.6 Gbps
- IPS throughput: 3.9 Gbps
- IPsec VPN throughput: 1.9 Gbps
- Integrated wizards for user-friendly setup
- Auto backup configuration file
- Supports hardware interrupts to the CPU
- Stateful and Deep Packet Inspection firewall
- Deployment in Gateway and Transparent mode
- Stops DoS; prevents DNS spoofing/flooding and SYN flooding
- Add IPv4/IPv6 addresses, URLs, or domains to a blacklist/whitelist
- Built-in default blacklist covering malicious, suspicious, and aggressive websites
- Multiple application categories — P2P, IM, VoIP, Web, Webmail, gaming, video, spyware, stock, and others
- SSL VPN, PPTP, L2TP, and IPsec VPN tunnel support
- Agent-based SSL VPN with two-factor authentication (2FA)
Certifications
10G

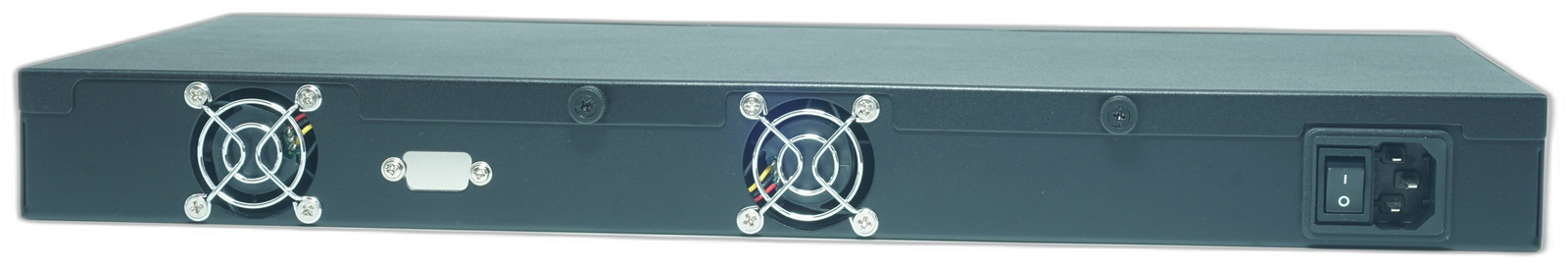

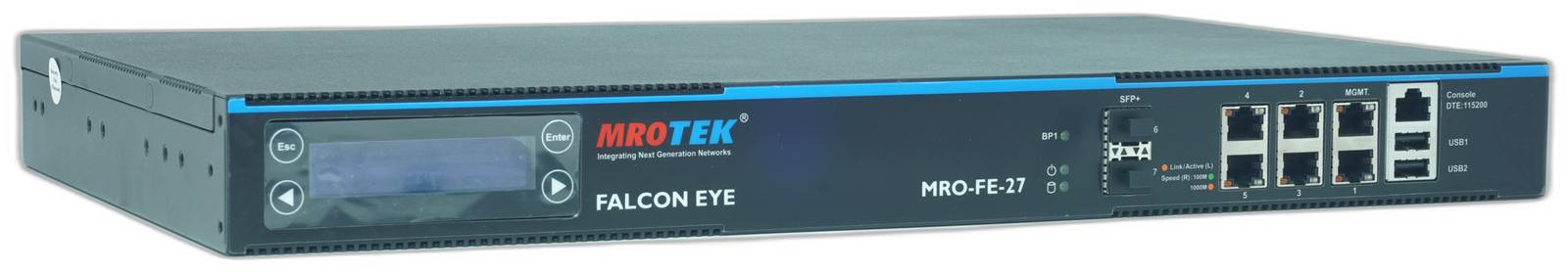

FALCON-EYE-27
Overview
Falcon-EYE-27 goes beyond traditional Routing and brings a new approach to the way administrators define their Secure Routers with 6 gigabit Ethernet ports including one management port and 5 user-defined ports (LAN, WAN or DMZ). To enhance internal security, Falcon-EYE-27 unifies and deploys consistent Routing and security policies across networks. In a single click delivering exceptional performance, superior multi-layered threat protection, and role-based administration to medium and large businesses.
6× GbE + 2× 10G
Ports
4.2 Gbps
NGFW
4.7 Gbps
IPS
5.5 Gbps
IPSec VPN
Specifications
- 1× dedicated management Gigabit Ethernet port
- 5× Gigabit Ethernet data ports
- 2× 10G ports
- 2× USB ports, 1× console port, LCD panel
- Memory: 4 GB, 480 GB SSD
- Static, DHCP, PPPoE, and 3G/4G WAN support
- Authentication via RADIUS, AD, IMAP, POP3 server integration
- Multiple VLAN and zone setup, IEEE 802.1Q, IEEE 802.3ad
- QoS by source IP address and policy
- Bandwidth policy on a user/IP/MAC/subnet/user-group basis
- NGFW throughput (1518, TCP): 4.2 Gbps
- IPS throughput: 4.7 Gbps
- IPsec VPN throughput: 5.5 Gbps
- Integrated wizards for user-friendly setup
- Auto backup configuration file
- Supports hardware interrupts to the CPU
- Stateful and Deep Packet Inspection firewall
- Deployment in Gateway and Transparent mode
- Stops DoS; prevents DNS spoofing/flooding and SYN flooding
- Add IPv4/IPv6 addresses, URLs, or domains to a blacklist/whitelist
- Built-in default blacklist covering malicious, suspicious, and aggressive websites
- Multiple application categories — P2P, IM, VoIP, Web, Webmail, gaming, video, spyware, stock, and others
- SSL VPN, PPTP, L2TP, and IPsec VPN tunnel support
- Agent-based SSL VPN with two-factor authentication (2FA)
- 1× dedicated management Gigabit Ethernet port
- 5× Gigabit Ethernet data ports
- 2× 10G ports
- 2× USB ports, 1× console port, LCD panel
- Memory: 4 GB, 480 GB SSD
- Static, DHCP, PPPoE, and 3G/4G WAN support
- Authentication via RADIUS, AD, IMAP, POP3 server integration
- Multiple VLAN and zone setup, IEEE 802.1Q, IEEE 802.3ad
- QoS by source IP address and policy
- Bandwidth policy on a user/IP/MAC/subnet/user-group basis
- NGFW throughput (1518, TCP): 4.2 Gbps
- IPS throughput: 4.7 Gbps
- IPsec VPN throughput: 5.5 Gbps
- Integrated wizards for user-friendly setup
- Auto backup configuration file
- Supports hardware interrupts to the CPU
- Stateful and Deep Packet Inspection firewall
- Deployment in Gateway and Transparent mode
- Stops DoS; prevents DNS spoofing/flooding and SYN flooding
- Add IPv4/IPv6 addresses, URLs, or domains to a blacklist/whitelist
- Built-in default blacklist covering malicious, suspicious, and aggressive websites
- Multiple application categories — P2P, IM, VoIP, Web, Webmail, gaming, video, spyware, stock, and others
- SSL VPN, PPTP, L2TP, and IPsec VPN tunnel support
- Agent-based SSL VPN with two-factor authentication (2FA)
Certifications
Need help sizing the right firewall for your network?
