LAVENDER Layer 3 Switches
LAVENDER Layer 3 series — Layer 3 managed, static routing, RIP, OSPF, up to 40GE uplinks.
Explore models
LAVENDER Layer 2 Switches
LAVENDER series — Layer 2 managed, 128 Gbps non-blocking, 16K MAC, 10G Ether-ring.
Explore models
CORNUS LAYER 2 SWITCHES
CORNUS series — full Layer 2 managed, GbE access with SFP uplinks, PoE up to 450W.
Explore models
Enterprise Switches

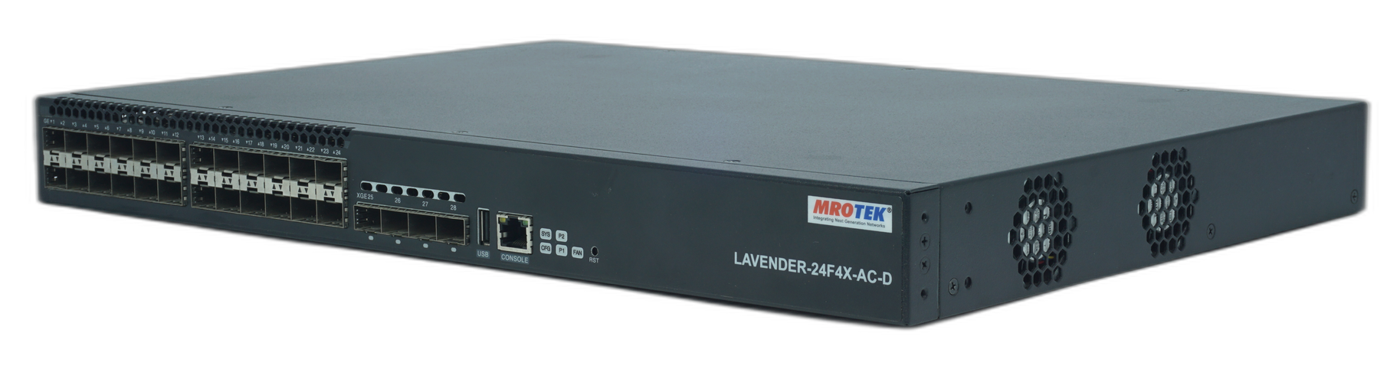

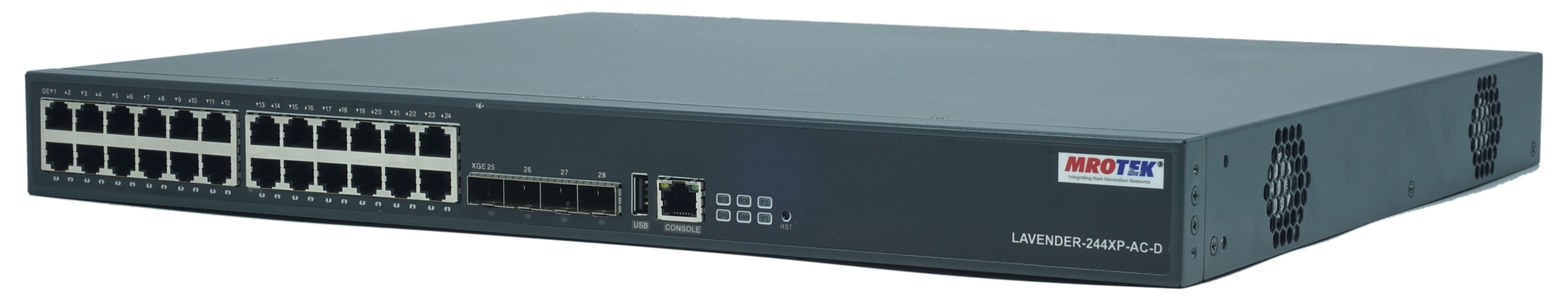

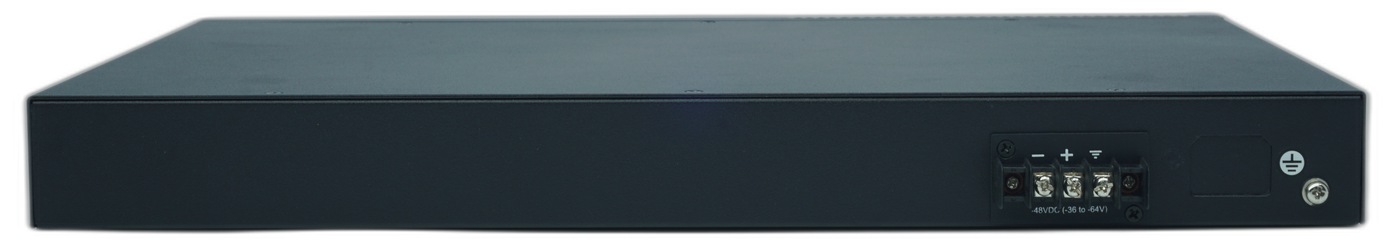

LAVENDER Layer 3 Switches
The lavender Switch series switch is a high-performance L3 aggregation routing switch developed by MRO‑TEK. It is applied in enterprise campus network and easy to deploy Layer3 switching solution that offers enhanced security and 10GE uplinks, RIP/OSPF/BGP/IS-IS, L2&L3 Multicast, and flexible management — VST/M-LAG stacking is available on the stackable model.
L3 Routing
Static routing, RIP v2, and OSPF v2 for inter-VLAN routing and campus core/aggregation without a separate router.
Ether-ring Protection
10G Ether-ring backbone protection for fast ring redundancy at the aggregation/core layer.
Layer 2 Protocols
802.1D (STP), 802.1W (RSTP), and 802.1S (MSTP) spanning tree with root/BPDU guard, LLDP/LLDP-MED and UDLD for topology discovery, plus IEEE 802.3ad LACP link aggregation.
Management & Monitoring
CLI, Telnet, SSH v1/v2, and Web GUI management with SNMP v1/v2c/v3 — RADIUS/TACACS+ AAA and ACL policy control included.
10G · 40G
40G Uplink
8× GE copper + 24× 10GE + 2× 40GE (Core) · 656 Gbps · 488 Mpps
10G
Higher Performance 10G
48× 1G Fiber + 4× 1G/10G slots (Stackable) · upto 176 Gbps · 130.9 Mpps
Enterprise Switches
LAVENDER Layer 2 Switches
Elevate your network's performance, reliability and scalability with our state-of-the-art Fully Managed Layer 3 lite Stackable Switch. Designed for modern enterprises, this switch delivers exceptional features, robust security and unparalleled manageability making it the perfect solution for your networking needs.
Layer 2 Protocols
802.1D/W/S spanning tree (STP/RSTP/MSTP) with root/BPDU guard, 802.1Q VLAN with QinQ, LACP link aggregation, and 10G Ether-ring (ERPS) backbone ring protection.
Management & Monitoring
CLI, Telnet, SSH v2, and Web GUI management with SNMP v1/v2c/v3 and RMON — centrally managed via OmniEye NMS/EMS.
PoE+
IEEE 802.3af/at PoE+ on PoE-capable models — up to 24 ports, 370W total budget — power IP phones, cameras, and APs directly.
Port Security
IEEE 802.1x port and MAC-based authentication with RADIUS/TACACS+, ACL policy control, port isolation/security, and IP Source Guard with IP-MAC port binding.
Enterprise Switches

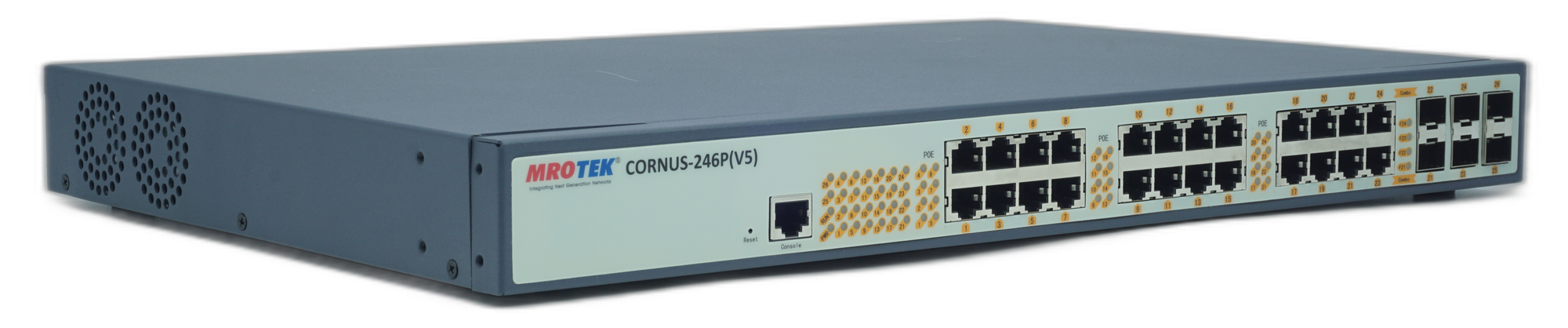

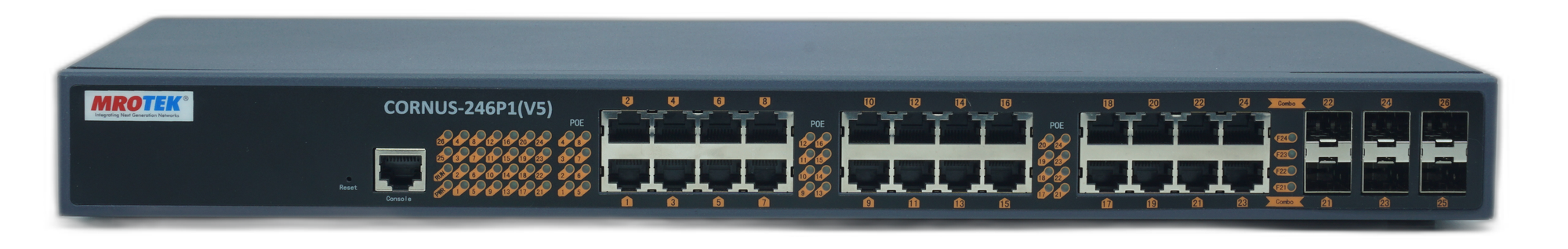

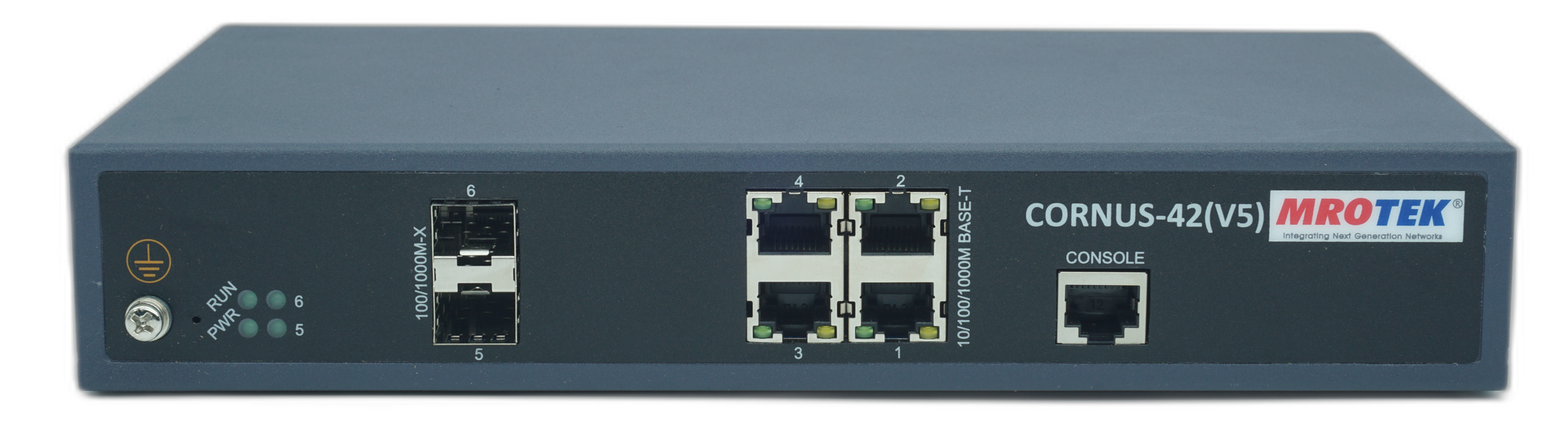

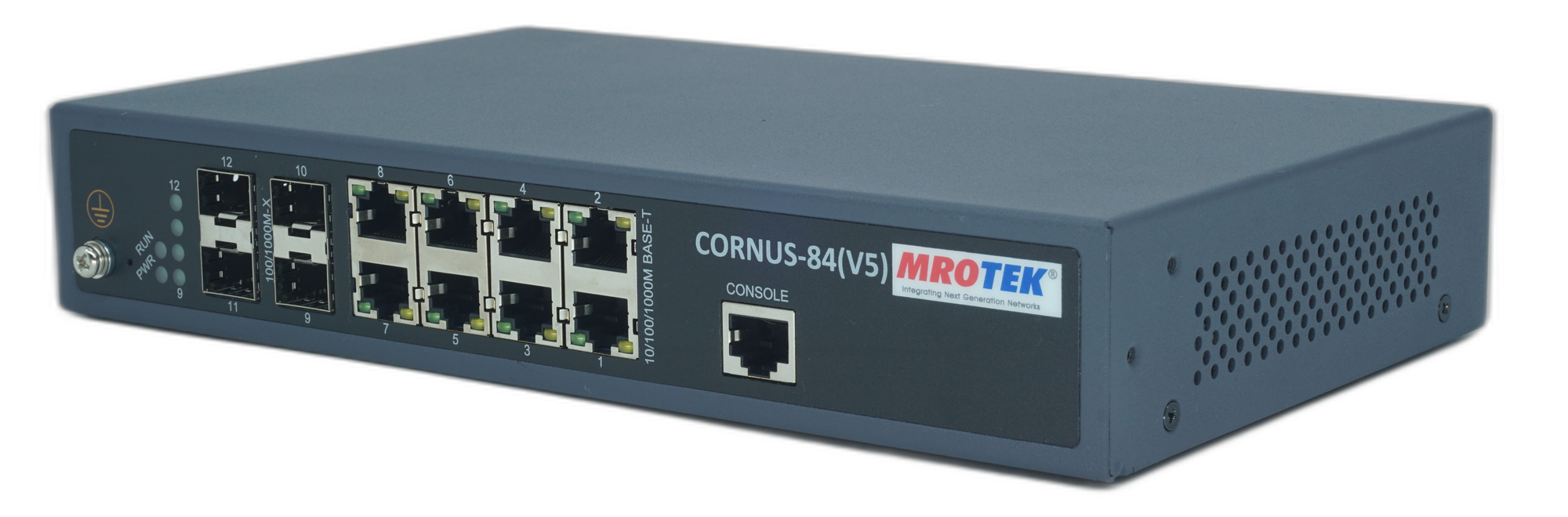

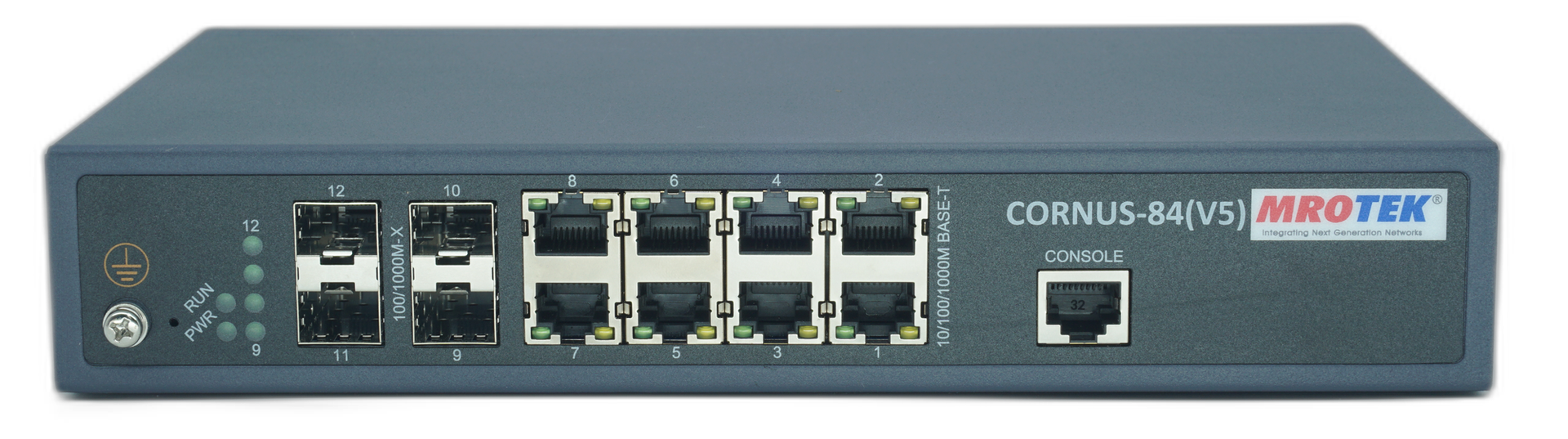

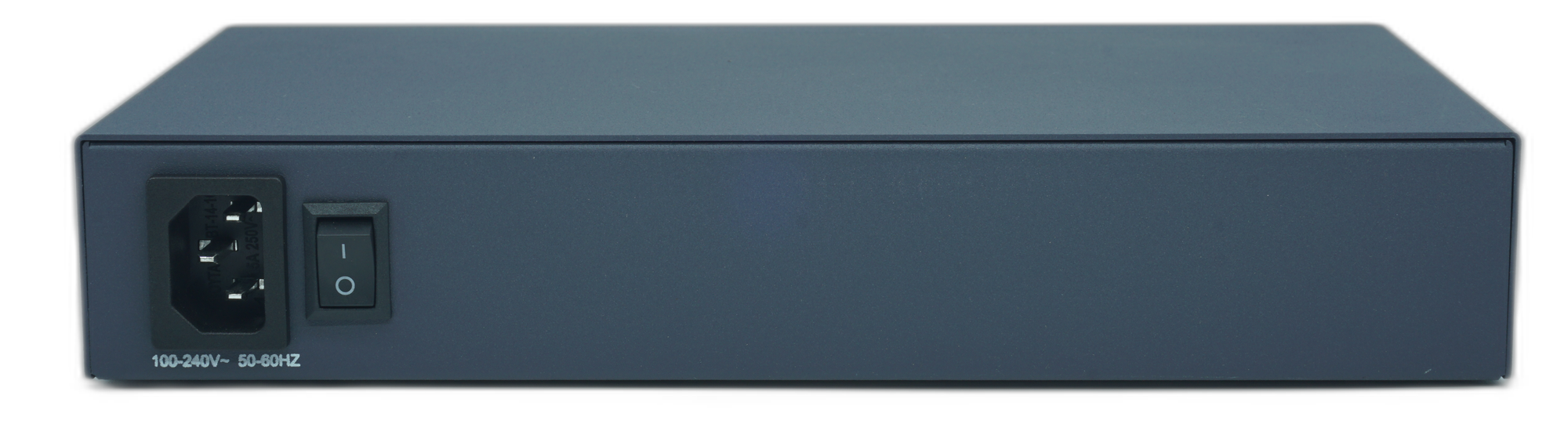

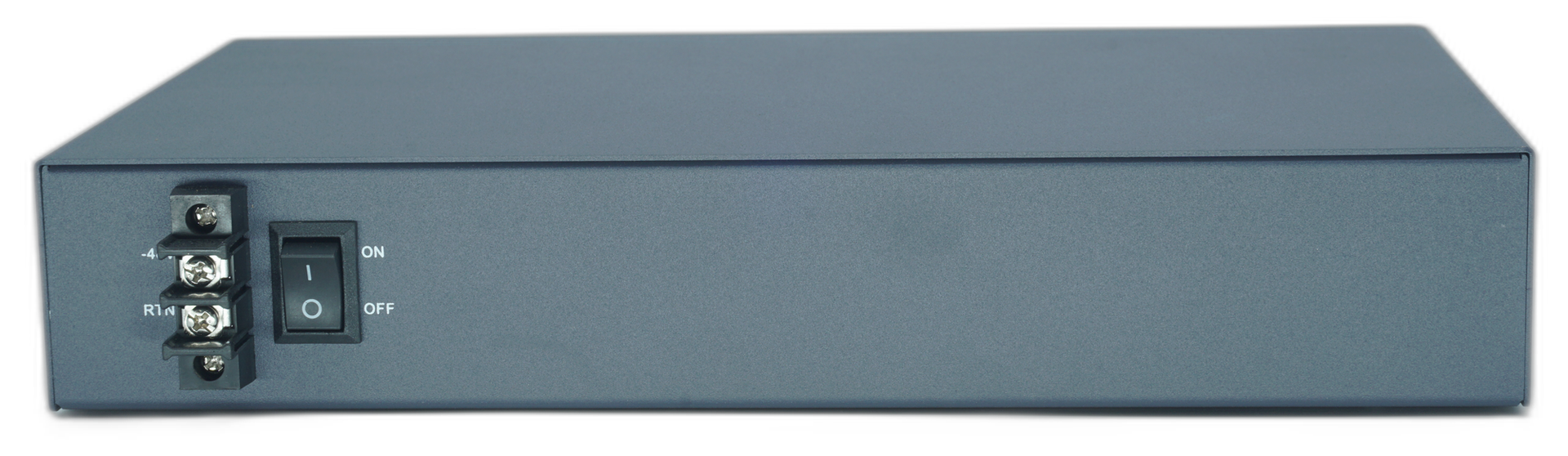

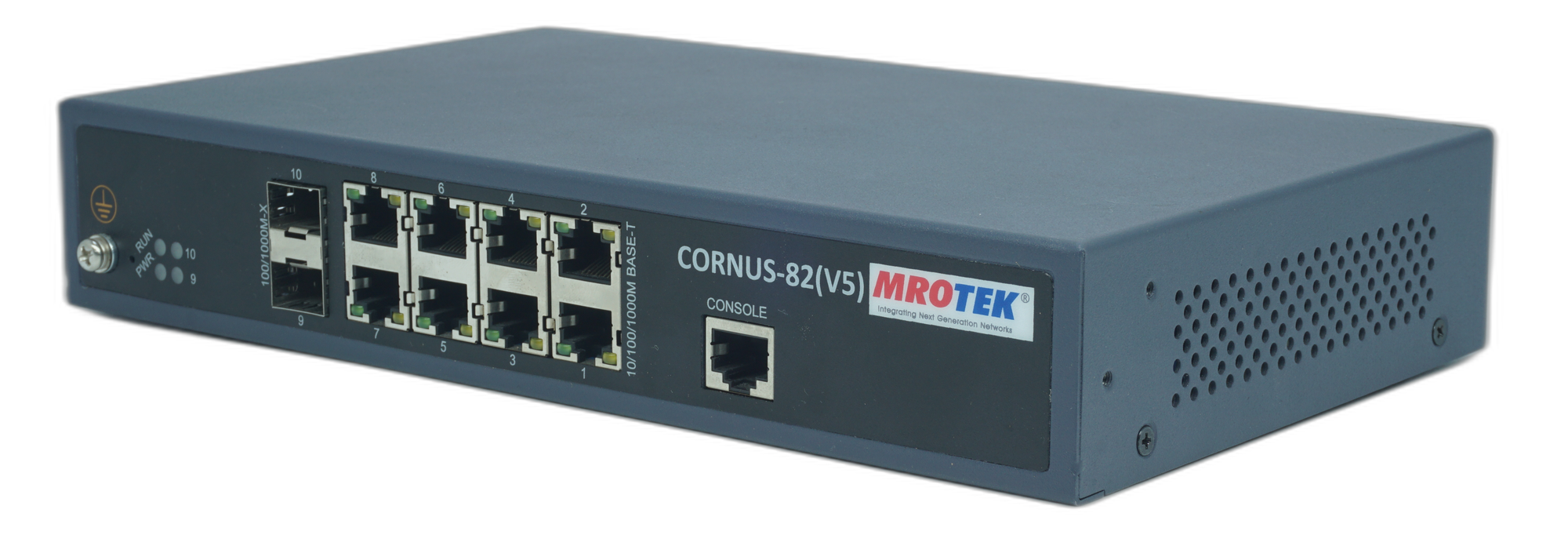

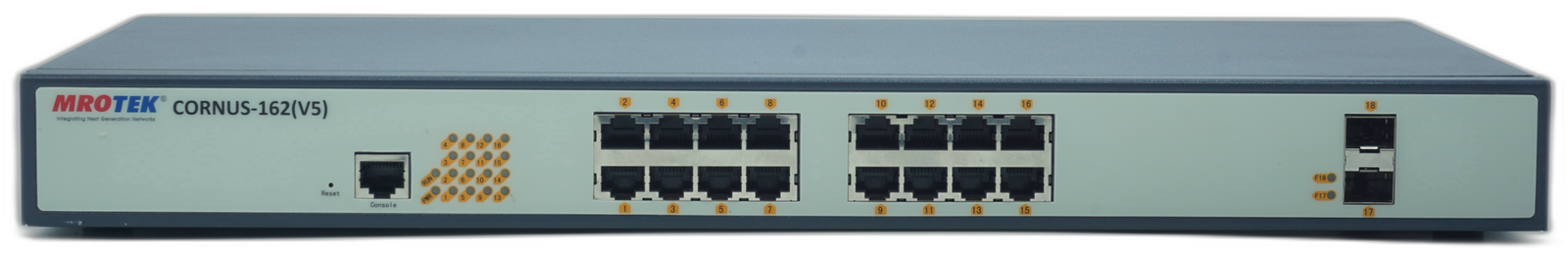

CORNUS LAYER 2 SWITCHES
CORNUS Family is a trusted product series of switches that aggregates traffic from the Ethernet access ports to the fiber uplink ports. It delivers high performance with user security, broadcast storm control, and ring protection for resilient and secure operation in enterprise and service provider networks. Provides reliable infrastructure for enterprise and automation applications.
Management & Monitoring
Console, Telnet, SSH v2, and Web GUI management with SNMP v1/v2c/v3 and RMON — optionally managed via OmniEye NMS/EMS.
Layer 2 Protocols
IEEE 802.1Q VLAN, QinQ, and private VLAN; LACP link aggregation with port mirroring; STP/RSTP/MSTP with BPDU and root guard; IGMP snooping v1/v2/v3; policy-based ACL by VLAN, MAC, IP, or port.
PoE

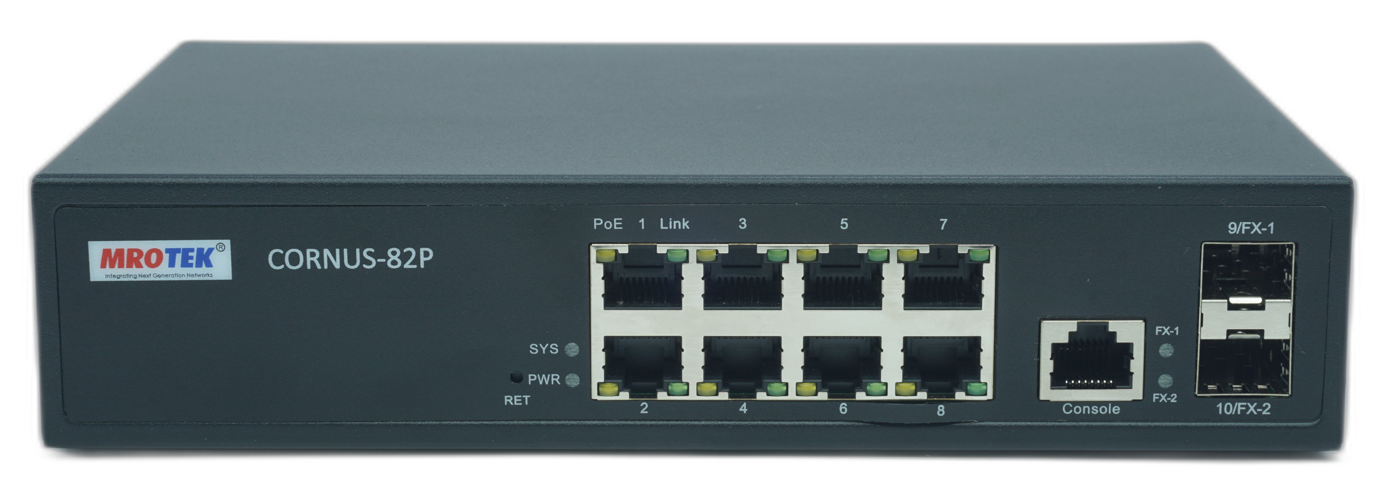

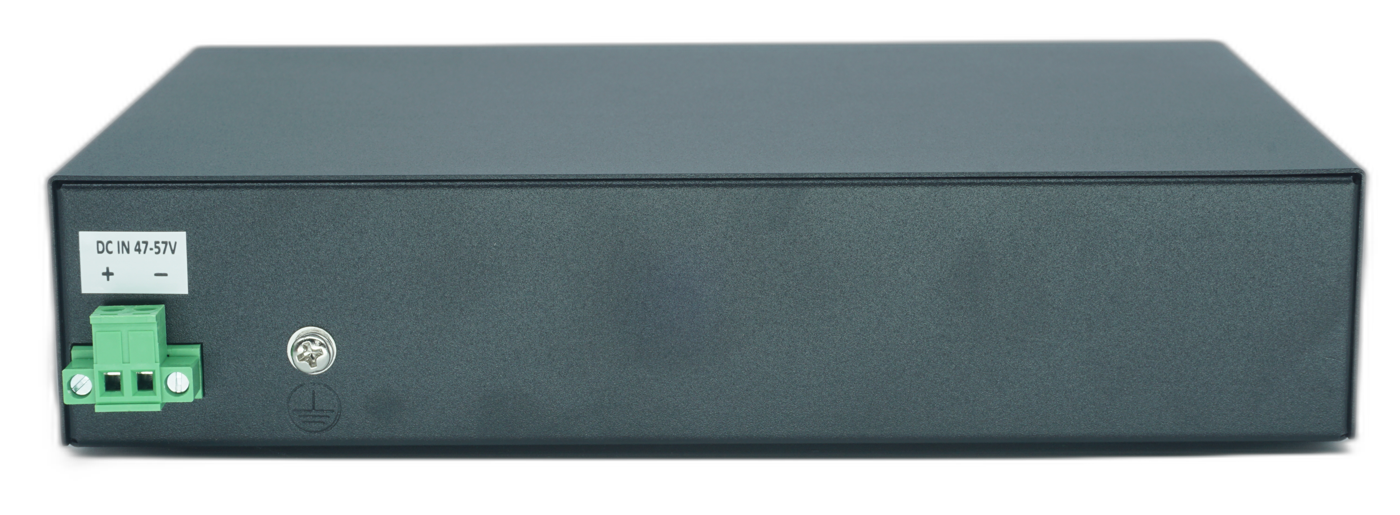

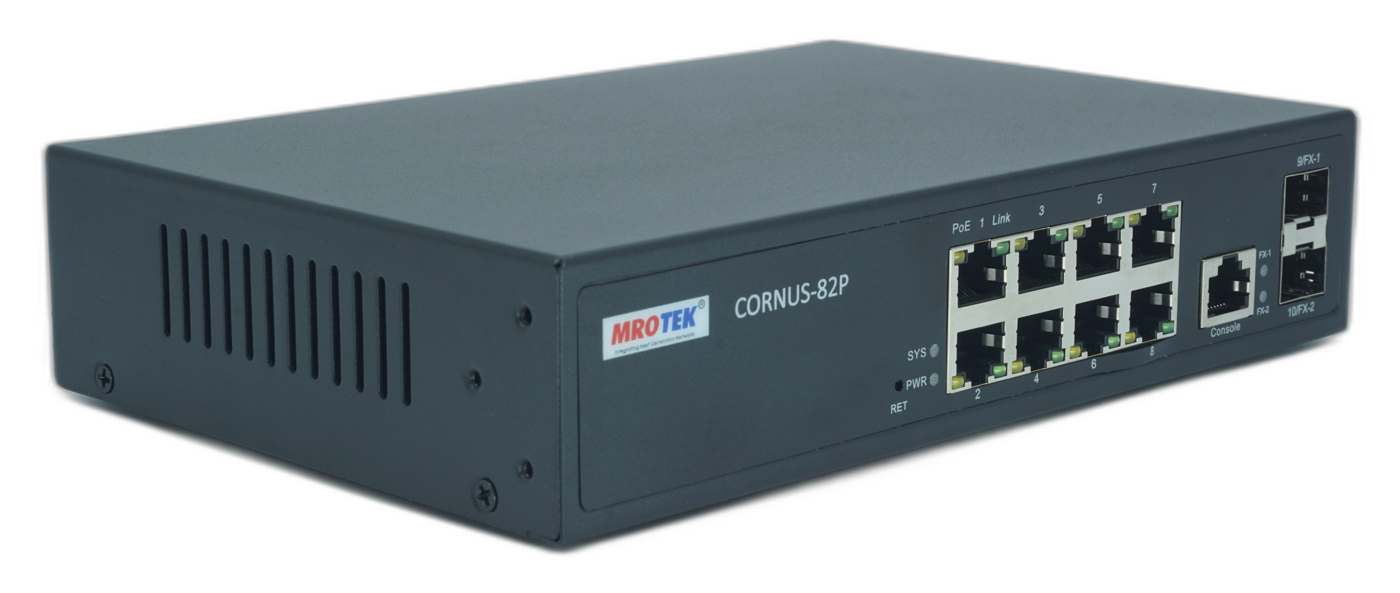

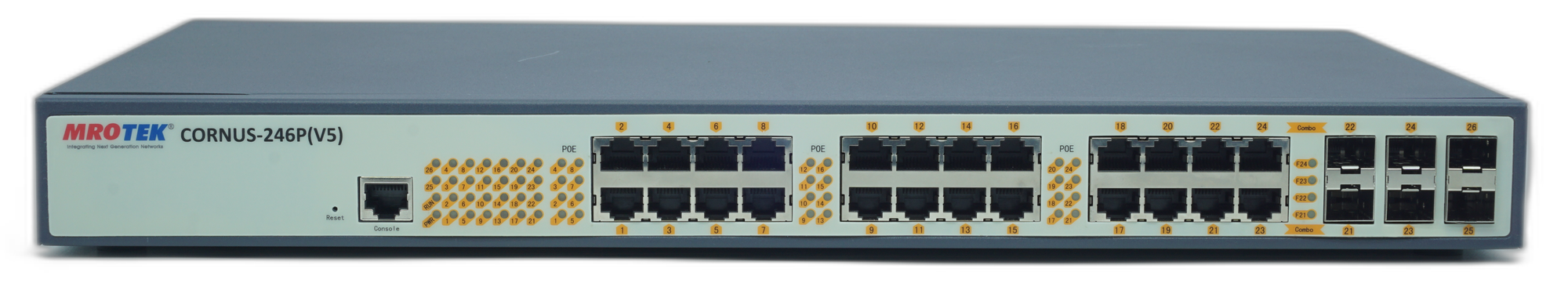

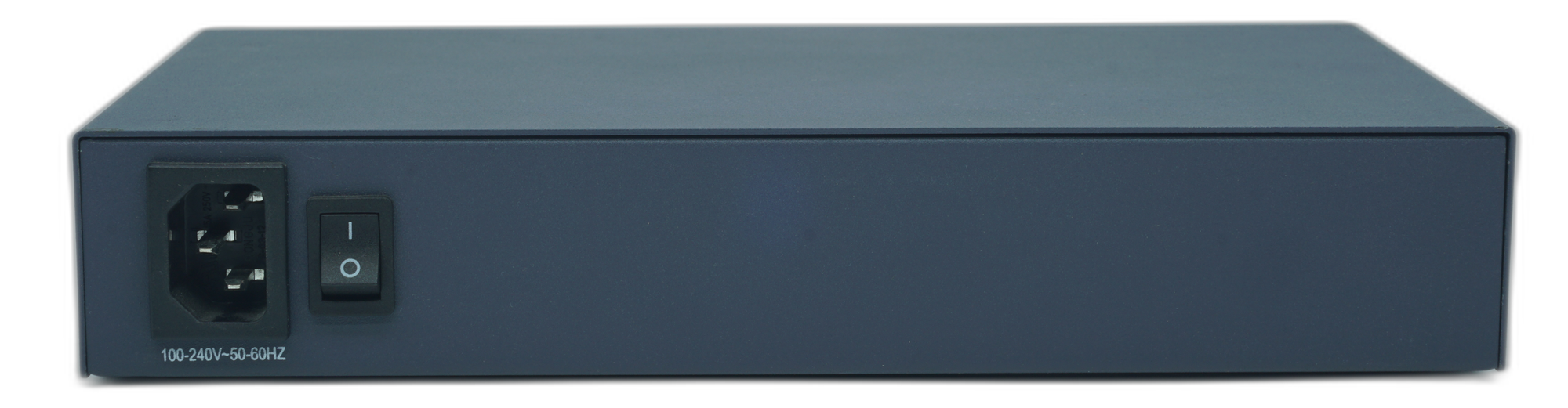

IEEE 802.3af/at PoE+ on CORNUS-82P/162P/246P models — up to 450W total PoE budget to power APs, cameras, and IP phones directly.
Port Security
Storm control for broadcast, multicast, and unicast traffic, with port security, MAC address binding, IP-MAC port binding, and 802.1x/RADIUS/TACACS+ authentication.
Models

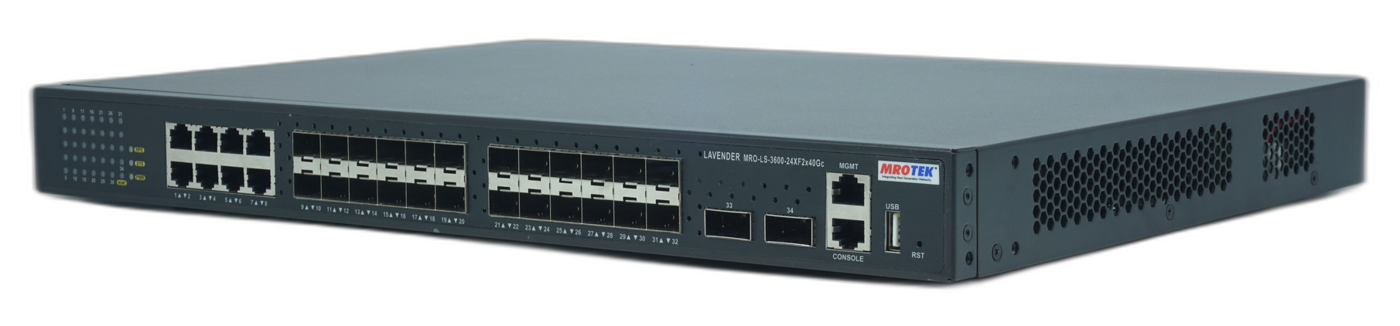

10G · 40G

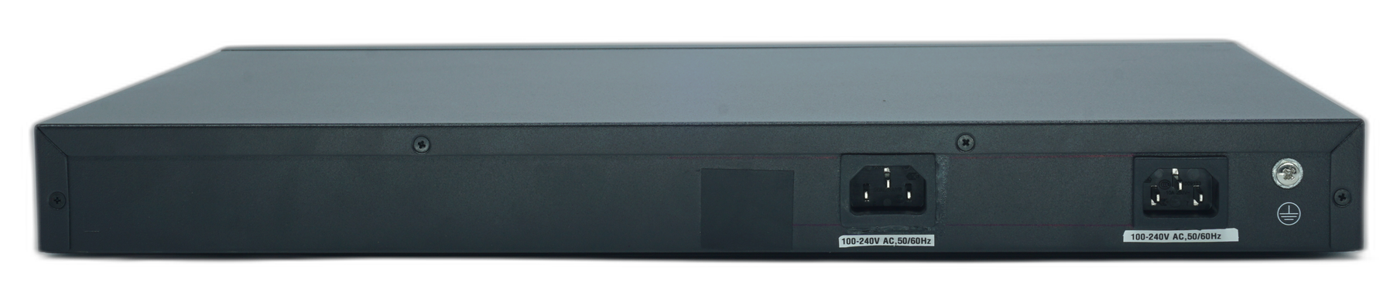

40G Uplink
Overview
Designed for high-performance enterprise, campus, and data center aggregation networks, this Layer 3 routing switch delivers wire-speed forwarding with advanced IPv4/IPv6 routing capabilities. Equipped with 24 × 10G ports, 8 × 1GE ports and 2 × 40G uplink ports, it provides high-bandwidth connectivity for aggregation and core deployments. Its resilient architecture and high port density make it ideal for bandwidth intensive and mission critical enterprise applications.
8× GE copper + 24× 10GE + 2× 40GE (Core)
Ports
656 Gbps
Switching
488 Mpps
Forwarding
OSPF, BGP, PIM-SM, etc.
Routing
Specifications
- 8× 10/100/1000BaseT copper ports
- 24× 10GE fiber ports
- 2× 40GE uplink ports
- 1× RJ-45 console port
- 1U rack-mountable form factor
- DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDP
- Static multicast route, multicast receive control
- Illegal multicast source detection
- ARP Guard, local ARP proxy, proxy ARP, ARP binding
- Gratuitous ARP, ARP limit
- Anti ARP/NDP cheat, anti ARP/NDP scan
- DNS client, DNS relay
- ICMPv6, ND, DNSv6, VRRPv3, URPF, RA
- MLD snooping, multicast VLAN
- MLD v1/v2, PIM-SM/DM, Anycast RP, ACL, QoS
- DHCP server/client for IPv4/IPv6
- DHCP relay/option 82, DHCP snooping
- Port loopback detection, LLDP and LLDP-MED, UDLD
- IEEE 802.3ad LACP — up to 128 trunk groups, max 8 ports per trunk, LACP load balancing
- N:1 port mirroring, RSPAN
- 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), root guard, BPDU guard
- 802.1Q — 4K VLAN
- MAC VLAN, voice VLAN, PVLAN, protocol VLAN, multicast VLAN
- QinQ, selective QinQ, flexible QinQ
- GVRP, broadcast/multicast/unicast storm control
- Humidity: 5%–90% non-condensing
- Operating temperature: 0°C to 50°C
- Power supply — dual AC+DC or dual AC+AC configurations
- Power consumption: <85W
- Storm control — broadcast/multicast/unicast
- Port isolation, port security
- IP Source Guard and IP MAC port binding
- Authentication — IEEE 802.1x, RADIUS and TACACS+
- CLI, Web, Telnet, HTTPS/SSL, SSH v1/v2
- SNMP v1/v2c/v3, SNMP MIB, SNMP trap
- RMON groups 1, 2, 3, and 9, syslog and external syslog server
- FTP/TFTP, SNTP/NTP, RADIUS/TACACS
- Dual firmware images/configuration files
- 802.3ah OAM, 802.1ag OAM, sFlow
- 8 queues — SWRR, SP, WRR, WDRR, SWDRR scheduling
- Traffic classification based on 802.1p CoS, ToS, DiffServ, DSCP, ACL, port number
- Traffic policing, priority mark/remark
- 8× 10/100/1000BaseT copper ports
- 24× 10GE fiber ports
- 2× 40GE uplink ports
- 1× RJ-45 console port
- 1U rack-mountable form factor
- DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDP
- Static multicast route, multicast receive control
- Illegal multicast source detection
- ARP Guard, local ARP proxy, proxy ARP, ARP binding
- Gratuitous ARP, ARP limit
- Anti ARP/NDP cheat, anti ARP/NDP scan
- DNS client, DNS relay
- ICMPv6, ND, DNSv6, VRRPv3, URPF, RA
- MLD snooping, multicast VLAN
- MLD v1/v2, PIM-SM/DM, Anycast RP, ACL, QoS
- DHCP server/client for IPv4/IPv6
- DHCP relay/option 82, DHCP snooping
- Port loopback detection, LLDP and LLDP-MED, UDLD
- IEEE 802.3ad LACP — up to 128 trunk groups, max 8 ports per trunk, LACP load balancing
- N:1 port mirroring, RSPAN
- 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), root guard, BPDU guard
- 802.1Q — 4K VLAN
- MAC VLAN, voice VLAN, PVLAN, protocol VLAN, multicast VLAN
- QinQ, selective QinQ, flexible QinQ
- GVRP, broadcast/multicast/unicast storm control
- Humidity: 5%–90% non-condensing
- Operating temperature: 0°C to 50°C
- Power supply — dual AC+DC or dual AC+AC configurations
- Power consumption: <85W
- Storm control — broadcast/multicast/unicast
- Port isolation, port security
- IP Source Guard and IP MAC port binding
- Authentication — IEEE 802.1x, RADIUS and TACACS+
- CLI, Web, Telnet, HTTPS/SSL, SSH v1/v2
- SNMP v1/v2c/v3, SNMP MIB, SNMP trap
- RMON groups 1, 2, 3, and 9, syslog and external syslog server
- FTP/TFTP, SNTP/NTP, RADIUS/TACACS
- Dual firmware images/configuration files
- 802.3ah OAM, 802.1ag OAM, sFlow
- 8 queues — SWRR, SP, WRR, WDRR, SWDRR scheduling
- Traffic classification based on 802.1p CoS, ToS, DiffServ, DSCP, ACL, port number
- Traffic policing, priority mark/remark
Ordering Information

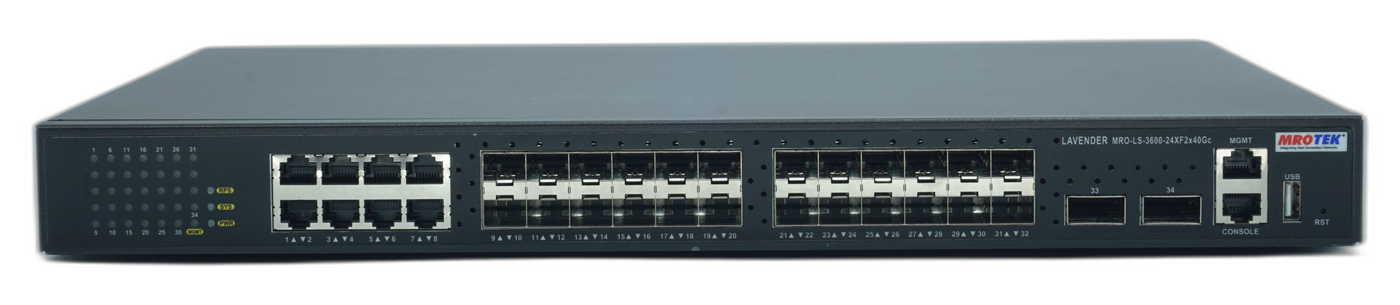

- MRO-LS-3600-24XF2x-40Gc — Managed L3 40G uplink Switch, 8× 10/100/1000Base-T (RJ45) + 24× 10GE + 2× 40GbE, dual AC+DC or dual AC+AC power supply configurations
Certifications
10G

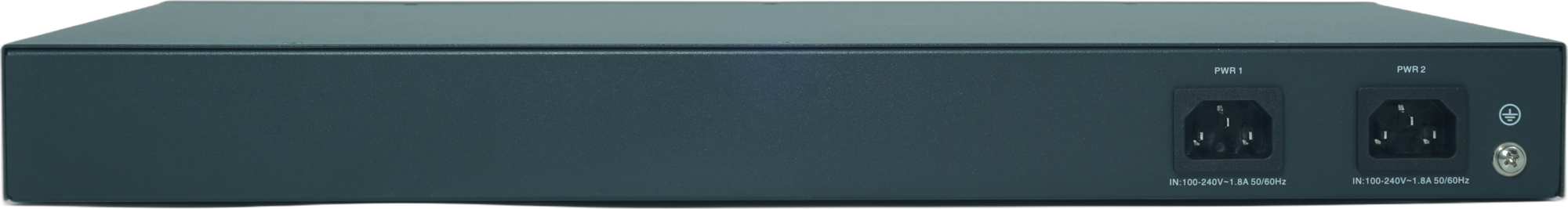

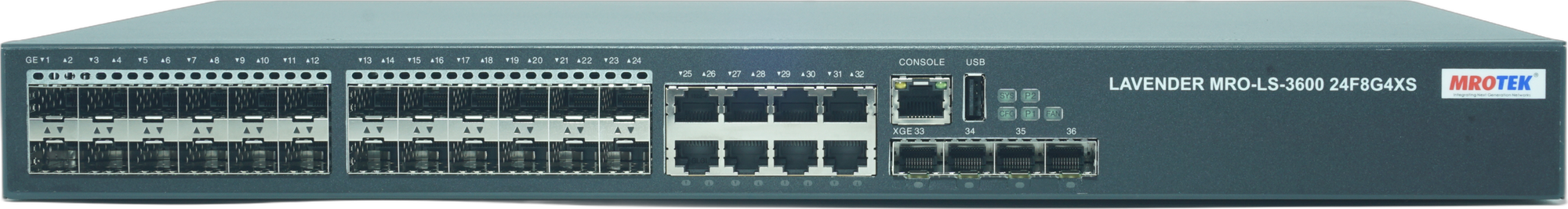

Higher Performance 10G
Overview
24 & 48 Port Higher-Performance Gigabit Layer 3 Switch with 4 × 10G Uplink Ports delivers scalable, wire-speed performance for enterprise and campus deployments. It combines intelligent Layer 3 routing, resilient switching, and advanced traffic management with secure access control. Comprehensive management features enable easy deployment, monitoring, and maintenance. Equipped with four 10G uplink ports and 80 Gbps stacking capability, the switch provides scalable, resilient connectivity to aggregation and core networks, ensuring reliable performance for mission-critical applications.
48× 1G Fiber + 4× 1G/10G slots (Stackable)
Ports
upto 176 Gbps
Switching
130.9 Mpps
Forwarding
OSPF, BGP, PIM-SM, etc.
Routing
Specifications
- 24/48× GE + 4× 1G/10G uplink slots
- Power options: AC, DC, PoE
- Port ingress/egress rate limiting
- Port speed: auto-negotiate, full-10000/2500/1000/100, half-100, full-10/half-10
- 1× RJ-45 console port
- 1U rack-mountable, stacking-capable via uplink slots
- Port loop detection, EAPS (RFC 3619)
- ERPS (G.8032/Y.1344), LLDP-MED, UDLD
- VLLP (VRRP Layer-2 loop protection)
- Static multicast MAC address
- IGMP snooping v1/v2/v3
- IGMP querier, IGMP snooping filter, MVR, GMRP, IGMP, PIM-SM
- 802.1Q-based VLAN, MAC-based VLAN, IP-based VLAN, protocol-based VLAN, PVLAN, voice VLAN
- VLAN mapping, QinQ, GVRP
- MAC table capacity and management, IVL forwarding mode
- Static MAC address, MAC address binding
- MAC address filtering, MAC learning control
- Management access security — Telnet, SSH, HTTP, HTTPS, SNMP bound to standard IP ACLs
- IP-MAC binding — static configuration of IP, MAC, and port binding
- AAA — RADIUS, TACACS+, 802.1x, portal
- CPU protection against large data-stream attacks
- Standard and extended IP-based ACL
- MAC IP-based ACL, MAC ARP-based ACL
- ACL port filtering, time-based ACL
- DHCP client, DHCP snooping
- DHCP relay, DHCP server, DHCP option 82
- CLI, Web, SNMP management, user management
- TACACS+, password encryption (PAP/CHAP), syslog logging
- RMON groups 1, 2, 3, and 9
- Cluster management
- Configuration file and software upgrade via TFTP
- Clock management via SNTP
- 8 port queues — WRR, WFQ, SP scheduling
- Port-based, 802.1p-based, DSCP-based, and ACL-based classification
- QoS policy support
- 24/48× GE + 4× 1G/10G uplink slots
- Power options: AC, DC, PoE
- Port ingress/egress rate limiting
- Port speed: auto-negotiate, full-10000/2500/1000/100, half-100, full-10/half-10
- 1× RJ-45 console port
- 1U rack-mountable, stacking-capable via uplink slots
- Port loop detection, EAPS (RFC 3619)
- ERPS (G.8032/Y.1344), LLDP-MED, UDLD
- VLLP (VRRP Layer-2 loop protection)
- Static multicast MAC address
- IGMP snooping v1/v2/v3
- IGMP querier, IGMP snooping filter, MVR, GMRP, IGMP, PIM-SM
- 802.1Q-based VLAN, MAC-based VLAN, IP-based VLAN, protocol-based VLAN, PVLAN, voice VLAN
- VLAN mapping, QinQ, GVRP
- MAC table capacity and management, IVL forwarding mode
- Static MAC address, MAC address binding
- MAC address filtering, MAC learning control
- Management access security — Telnet, SSH, HTTP, HTTPS, SNMP bound to standard IP ACLs
- IP-MAC binding — static configuration of IP, MAC, and port binding
- AAA — RADIUS, TACACS+, 802.1x, portal
- CPU protection against large data-stream attacks
- Standard and extended IP-based ACL
- MAC IP-based ACL, MAC ARP-based ACL
- ACL port filtering, time-based ACL
- DHCP client, DHCP snooping
- DHCP relay, DHCP server, DHCP option 82
- CLI, Web, SNMP management, user management
- TACACS+, password encryption (PAP/CHAP), syslog logging
- RMON groups 1, 2, 3, and 9
- Cluster management
- Configuration file and software upgrade via TFTP
- Clock management via SNTP
- 8 port queues — WRR, WFQ, SP scheduling
- Port-based, 802.1p-based, DSCP-based, and ACL-based classification
- QoS policy support
Ordering Information

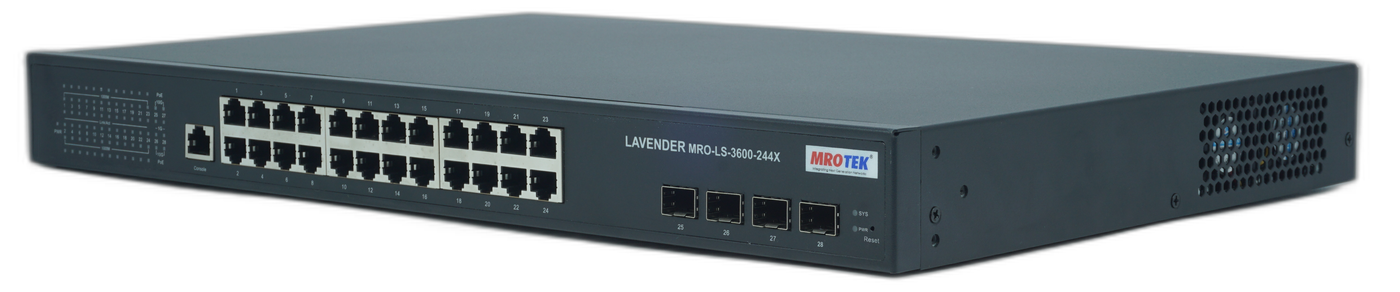

- LAVENDER MRO-LS-3600-244XS — Managed L3 Switch, 24× GE + 4× 1G/10G uplink slots, Power AC, PoE (option)

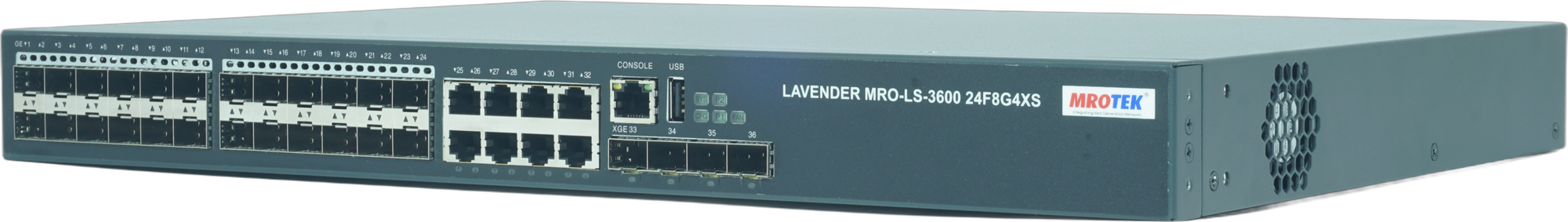

- LAVENDER MRO-LS-3600-24F8G4XS — Managed L3 Switch, 24× 1G Fiber + 8× GE + 4× 1G/10G uplink slots, Power AC
- LAVENDER MRO-LS-3600-486X — Managed L3 Switch, 48× GE + 6× 1G/10G uplink slots, PoE (option), AC Power
Certifications

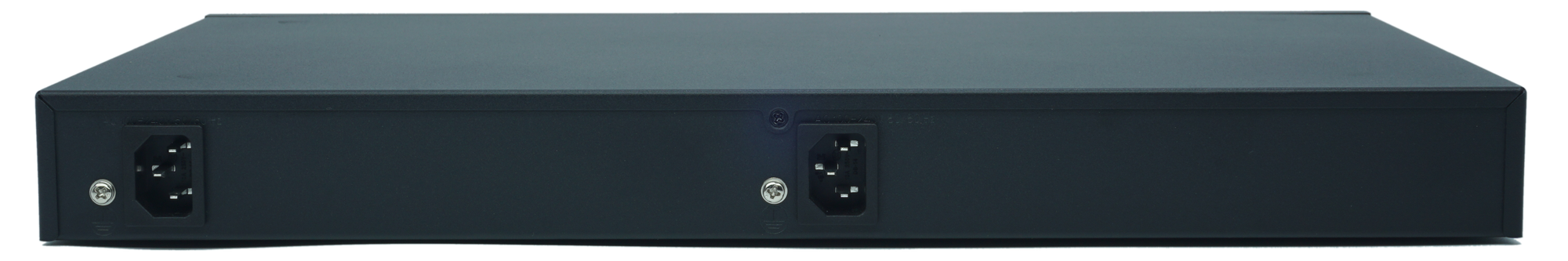

10G

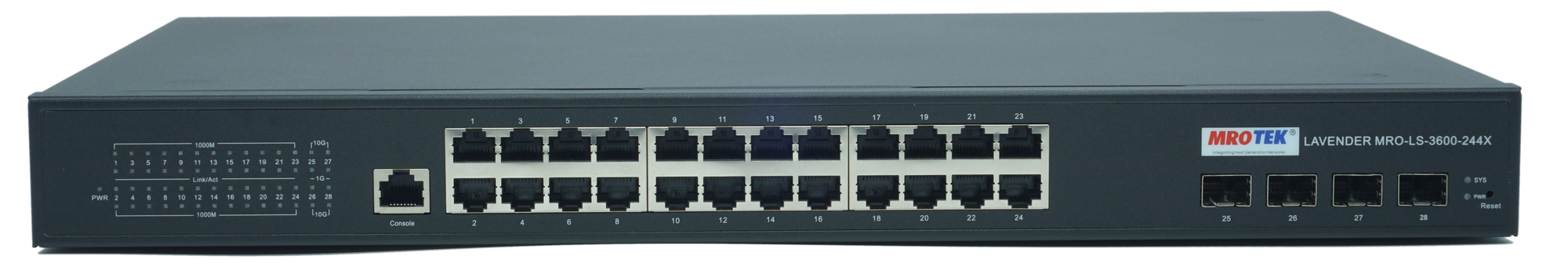

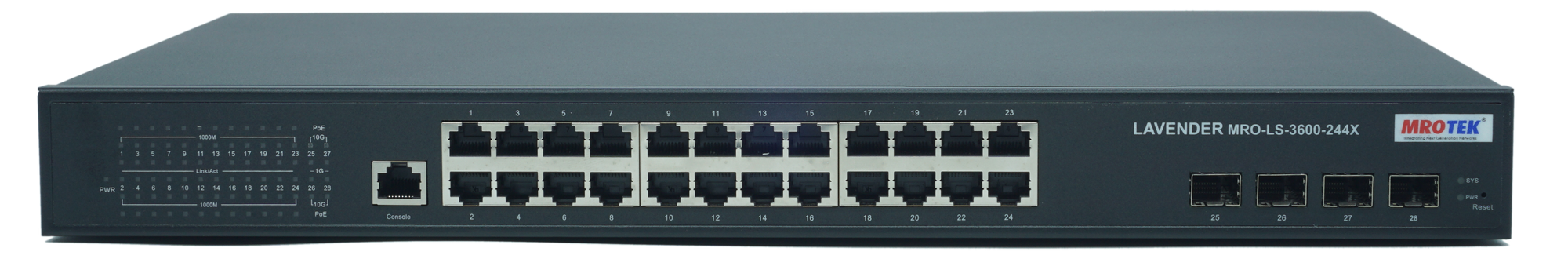

10G Uplink
Overview
24 & 48 Port Gigabit Layer 3 Switch with 4 × 10G Uplink Ports switches are engineered to provide reliable, high-performance networking for enterprise and campus environments. It offers advanced Layer 3 routing, efficient traffic optimization, and strong access security to support modern network requirements. Easy-to-use management tools streamline installation and network administration. Four 10G uplink interfaces provide high speed connectivity to aggregation and core networks, ensuring consistent performance for critical services.
24× 1GE + 4× 1G/10G slots
Ports
128 Gbps
Switching
95.3 Mpps
Forwarding
OSPF, BGP, PIM-SM, etc.
Routing
Specifications
- 24/48× GE + 4× 1G/10G uplink slots
- Power options: AC, DC, PoE
- 1× RJ-45 console port
- 1U rack-mountable form factor
- Static Routing, RIP, OSPF, BGP, multiple OSPF processes
- URPF, ECMP, BFD
- PIM-SM, static multicast route
- Multicast receive control, illegal multicast source detection
- ARP Guard, local ARP proxy, proxy ARP, ARP binding
- Gratuitous ARP, ARP limit
- Anti ARP/NDP cheat, anti ARP/NDP scan
- DNS client, DNS relay
- ICMPv6, ND, DNSv6, VRRP
- MLD snooping, multicast VLAN
- MLD v1/v2, PIM-SM/DM, Anycast RP, ACL, QoS
- DHCP server/client, DHCP relay/option 82, DHCP snooping
- Port loopback detection, LLDP and LLDP-MED, UDLD
- IEEE 802.3ad LACP — up to 128 trunk groups, max 8 ports per trunk, LACP load balancing
- IGMP v1/v2/v3 snooping with L2 query, IGMP proxy, ND snooping, MLD v1/v2 snooping
- Flow control: HOL, IEEE 802.3x, bandwidth control
- MAC VLAN, voice VLAN, PVLAN, protocol VLAN, multicast VLAN, QinQ, selective QinQ, flexible QinQ
- 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), root guard, BPDU guard
- Humidity: 5%–90% non-condensing
- Operating temperature: 0°C to 50°C
- 802.1x AAA, port-based and MAC-based authentication
- Guest VLAN and auto VLAN
- RADIUS, TACACS+
- IP ACL, MAC ACL, IP-MAC ACL
- Standard and expanded ACL based on source/destination IP or MAC, IP protocol, TCP/UDP port, DSCP, ToS, IP precedence, VLAN, tag/untag, CoS
- Redirect and accounting-based ACL
- Rules configurable to port or VLAN
- Time-ranged ACL
- CLI, Web, Telnet, HTTPS/SSL, SSH v1/v2
- SNMP v1/v2c/v3, SNMP MIB, SNMP trap
- RMON groups 1, 2, 3, and 9
- Syslog and external syslog server
- FTP, NTP, RADIUS, TACACS
- 8 queues — SWRR, SP, WRR, WDRR, SWDRR scheduling
- Traffic classification based on 802.1p CoS, ToS, DiffServ DSCP, ACL, port number
- Traffic policing, priority mark/remark
- 24/48× GE + 4× 1G/10G uplink slots
- Power options: AC, DC, PoE
- 1× RJ-45 console port
- 1U rack-mountable form factor
- Static Routing, RIP, OSPF, BGP, multiple OSPF processes
- URPF, ECMP, BFD
- PIM-SM, static multicast route
- Multicast receive control, illegal multicast source detection
- ARP Guard, local ARP proxy, proxy ARP, ARP binding
- Gratuitous ARP, ARP limit
- Anti ARP/NDP cheat, anti ARP/NDP scan
- DNS client, DNS relay
- ICMPv6, ND, DNSv6, VRRP
- MLD snooping, multicast VLAN
- MLD v1/v2, PIM-SM/DM, Anycast RP, ACL, QoS
- DHCP server/client, DHCP relay/option 82, DHCP snooping
- Port loopback detection, LLDP and LLDP-MED, UDLD
- IEEE 802.3ad LACP — up to 128 trunk groups, max 8 ports per trunk, LACP load balancing
- IGMP v1/v2/v3 snooping with L2 query, IGMP proxy, ND snooping, MLD v1/v2 snooping
- Flow control: HOL, IEEE 802.3x, bandwidth control
- MAC VLAN, voice VLAN, PVLAN, protocol VLAN, multicast VLAN, QinQ, selective QinQ, flexible QinQ
- 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), root guard, BPDU guard
- Humidity: 5%–90% non-condensing
- Operating temperature: 0°C to 50°C
- 802.1x AAA, port-based and MAC-based authentication
- Guest VLAN and auto VLAN
- RADIUS, TACACS+
- IP ACL, MAC ACL, IP-MAC ACL
- Standard and expanded ACL based on source/destination IP or MAC, IP protocol, TCP/UDP port, DSCP, ToS, IP precedence, VLAN, tag/untag, CoS
- Redirect and accounting-based ACL
- Rules configurable to port or VLAN
- Time-ranged ACL
- CLI, Web, Telnet, HTTPS/SSL, SSH v1/v2
- SNMP v1/v2c/v3, SNMP MIB, SNMP trap
- RMON groups 1, 2, 3, and 9
- Syslog and external syslog server
- FTP, NTP, RADIUS, TACACS
- 8 queues — SWRR, SP, WRR, WDRR, SWDRR scheduling
- Traffic classification based on 802.1p CoS, ToS, DiffServ DSCP, ACL, port number
- Traffic policing, priority mark/remark
Ordering Information
- LAVENDER MRO-LS-3600-244X — Managed L3 Switch, 24× GE + 4× 1G/10G uplink slots, Power AC, PoE (option)

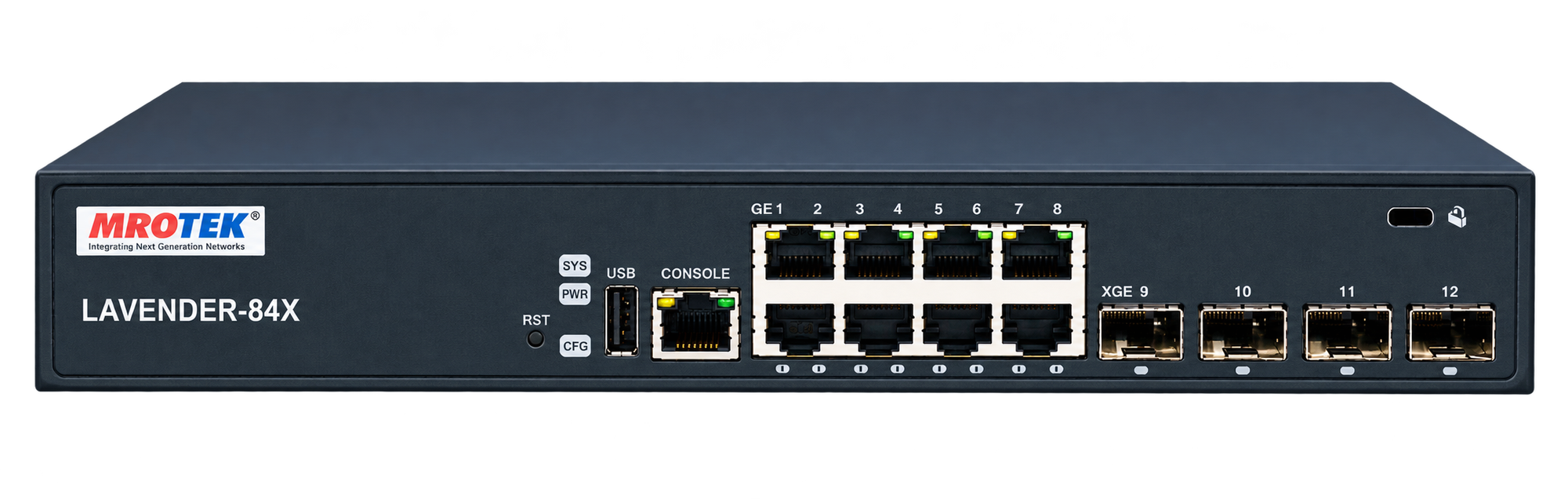

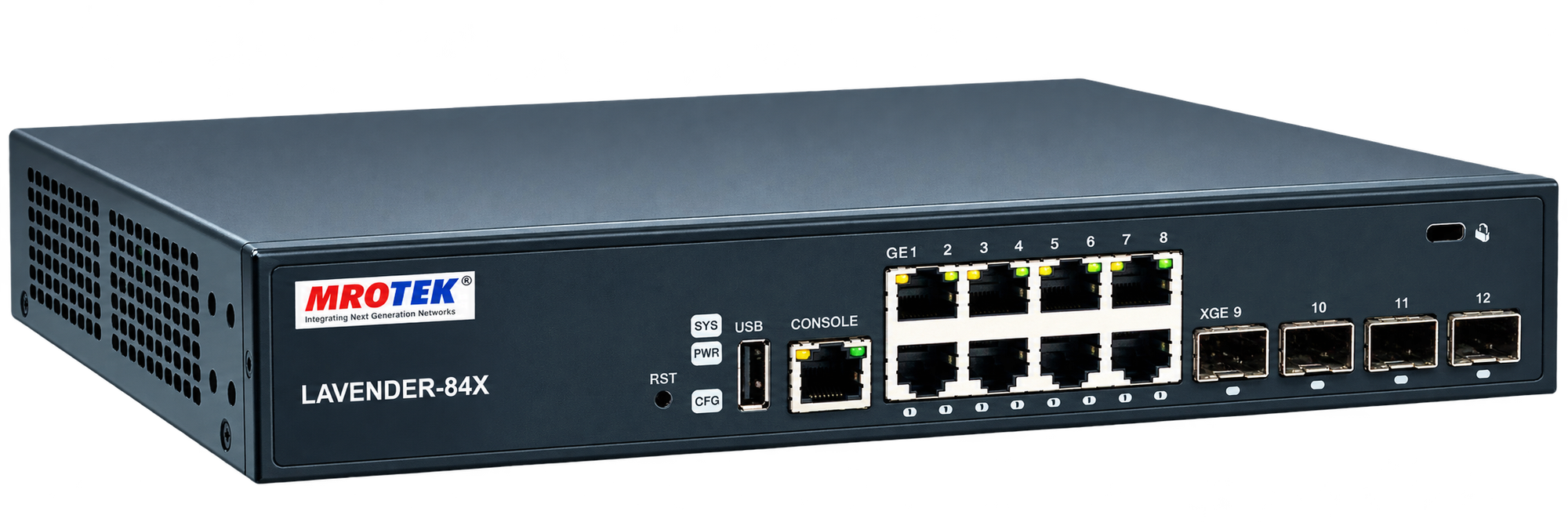

- LAVENDER MRO-LS-3600-84X — Managed L3 Switch, 8× GE + 4× 1G/10G uplink slots, Power AC
- LAVENDER MRO-LS-3600-486X — Managed L3 Switch, 48× GE + 6× 1G/10G uplink slots, AC Power
- LAVENDER MRO-LS-3600-24F4X — Managed L3 Switch, 24× 1G Fiber + 4× 1G/10G uplink slots, AC Power
Certifications
10G

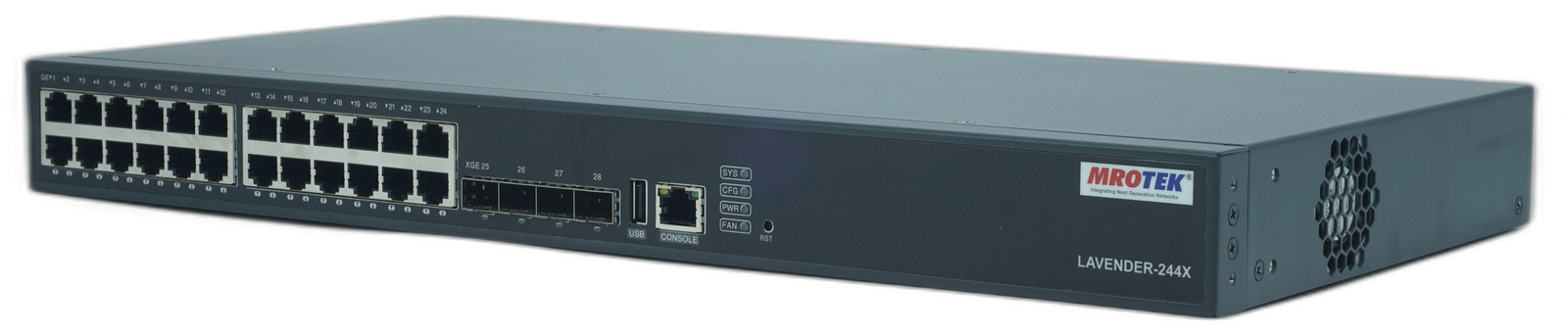

LAVENDER-244X
Overview
High-performance L2+ managed Ethernet switch for enterprise campus and access layer deployments. Delivers 128 Gbps non-blocking switching capacity with 95.3 Mpps forwarding rate, 24× GbE access ports, and 4× 1G/10G slots. Features advanced VLAN, QoS, IGMP snooping, LACP, 10G Ether-ring protection, 802.1x, and ACL. TEC and TTP approved.
24× GbE + 4× 1G/10G slots
Ports
128 Gbps
Switching
95.3 Mpps
Forwarding
16K
MAC Table
Specifications
- 24× 10/100/1000M RJ45 Ethernet ports
- 4× 1G/10G uplink slots
- 1× RJ-45 console port
- 1× USB port for configuration backup/restore
- 1U rack-mountable form factor
- 128 Gbps non-blocking switching capacity
- 95.3 Mpps forwarding rate
- 16K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- 9K jumbo frame support
- Store-and-forward switching with CRC error detection
- Static route support for network connectivity
- Dynamic routing protocols — RIP and OSPF — for campus and enterprise networks
- IEEE 802.1Q VLAN, QinQ (802.1ad), voice VLAN, private VLAN
- IEEE 802.3ad LACP link aggregation
- Spanning Tree: 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU, root guard
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave
- MAC address VLAN binding
- 10G Ether-ring (ERPS ring protection for backbone redundancy)
- Storm control for broadcast, multicast, and unknown unicast
- IEEE 802.1x port-based and MAC-based authentication
- RADIUS and TACACS+ authentication
- Port isolation and port security
- ACL — policy control by VLAN ID, source MAC/IP address, and protocol port
- IP Source Guard and IP MAC port binding
- Flow classification based on L2/L3/L4 protocols
- 802.1P/DSCP priority marking
- SP, WRR, and SP+WRR scheduling
- Congestion avoidance with Tail-Drop and WRED
- Web-based GUI with dashboard and port monitoring
- CLI via console, Telnet, SSH v2
- SNMP v1/v2c/v3 with RMON
- Dual firmware image for resilient upgrades
- SNTP/NTP time synchronization
- Managed via OmniEye NMS/EMS
- 24× 10/100/1000M RJ45 Ethernet ports
- 4× 1G/10G uplink slots
- 1× RJ-45 console port
- 1× USB port for configuration backup/restore
- 1U rack-mountable form factor
- 128 Gbps non-blocking switching capacity
- 95.3 Mpps forwarding rate
- 16K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- 9K jumbo frame support
- Store-and-forward switching with CRC error detection
- Static route support for network connectivity
- Dynamic routing protocols — RIP and OSPF — for campus and enterprise networks
- IEEE 802.1Q VLAN, QinQ (802.1ad), voice VLAN, private VLAN
- IEEE 802.3ad LACP link aggregation
- Spanning Tree: 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU, root guard
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave
- MAC address VLAN binding
- 10G Ether-ring (ERPS ring protection for backbone redundancy)
- Storm control for broadcast, multicast, and unknown unicast
- IEEE 802.1x port-based and MAC-based authentication
- RADIUS and TACACS+ authentication
- Port isolation and port security
- ACL — policy control by VLAN ID, source MAC/IP address, and protocol port
- IP Source Guard and IP MAC port binding
- Flow classification based on L2/L3/L4 protocols
- 802.1P/DSCP priority marking
- SP, WRR, and SP+WRR scheduling
- Congestion avoidance with Tail-Drop and WRED
- Web-based GUI with dashboard and port monitoring
- CLI via console, Telnet, SSH v2
- SNMP v1/v2c/v3 with RMON
- Dual firmware image for resilient upgrades
- SNTP/NTP time synchronization
- Managed via OmniEye NMS/EMS
Certifications
10G

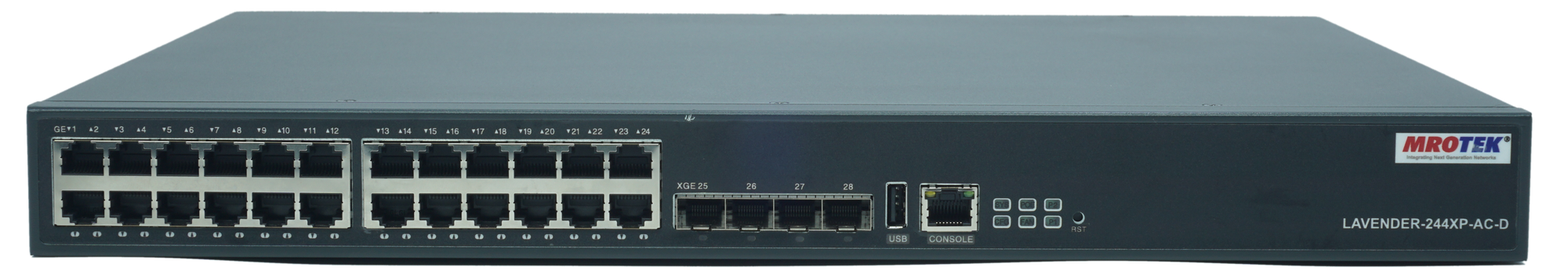

LAVENDER-244XP
Overview
High-performance L2 managed PoE switch for powering IP phones, wireless APs, and cameras directly from the switch. Identical switching performance to LAVENDER-244X (128 Gbps, 95.3 Mpps, 16K MAC) with 24× GbE PoE+ access ports supporting IEEE 802.3af/at and 4× 1G/10G slots. TEC and TTP approved.
24× GbE PoE+
PoE Ports
4× 1G/10G slots
Uplinks
128 Gbps
Switching
802.3af / 802.3at
PoE Standard
370W
PoE Budget
Specifications
- 24× 10/100/1000M RJ45 PoE+ Ethernet ports (IEEE 802.3af/at)
- 4× 1G/10G uplink slots
- 1× RJ-45 console port
- 1× USB port for configuration backup/restore
- 1U rack-mountable form factor
- IEEE 802.3af (PoE) — up to 15.4W per port
- IEEE 802.3at (PoE+) — up to 30W per port
- 24 PoE+ ports — all access ports PoE capable
- 370W total PoE power budget
- Intelligent PoE budget management with per-port priority
- 128 Gbps non-blocking switching capacity
- 95.3 Mpps forwarding rate
- 16K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- 9K jumbo frame support
- Store-and-forward switching with CRC error detection
- Static route support for network connectivity
- Dynamic routing protocols — RIP and OSPF — for campus and enterprise networks
- IEEE 802.1Q VLAN, QinQ (802.1ad), voice VLAN, private VLAN
- IEEE 802.3ad LACP link aggregation
- Spanning Tree: 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU, root guard
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave
- MAC address VLAN binding
- 10G Ether-ring (ERPS ring protection for backbone redundancy)
- Storm control for broadcast, multicast, and unknown unicast
- IEEE 802.1x port-based and MAC-based authentication
- RADIUS and TACACS+ authentication
- Port isolation and port security
- ACL — policy control by VLAN ID, source MAC/IP address, and protocol port
- IP Source Guard and IP MAC port binding
- Flow classification based on L2/L3/L4 protocols
- 802.1P/DSCP priority marking
- SP, WRR, and SP+WRR scheduling
- Congestion avoidance with Tail-Drop and WRED
- Web-based GUI with PoE monitoring dashboard
- CLI via console, Telnet, SSH v2
- SNMP v1/v2c/v3 with RMON
- Dual firmware image for resilient upgrades
- SNTP/NTP time synchronization
- Managed via OmniEye NMS/EMS
- 24× 10/100/1000M RJ45 PoE+ Ethernet ports (IEEE 802.3af/at)
- 4× 1G/10G uplink slots
- 1× RJ-45 console port
- 1× USB port for configuration backup/restore
- 1U rack-mountable form factor
- IEEE 802.3af (PoE) — up to 15.4W per port
- IEEE 802.3at (PoE+) — up to 30W per port
- 24 PoE+ ports — all access ports PoE capable
- 370W total PoE power budget
- Intelligent PoE budget management with per-port priority
- 128 Gbps non-blocking switching capacity
- 95.3 Mpps forwarding rate
- 16K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- 9K jumbo frame support
- Store-and-forward switching with CRC error detection
- Static route support for network connectivity
- Dynamic routing protocols — RIP and OSPF — for campus and enterprise networks
- IEEE 802.1Q VLAN, QinQ (802.1ad), voice VLAN, private VLAN
- IEEE 802.3ad LACP link aggregation
- Spanning Tree: 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU, root guard
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave
- MAC address VLAN binding
- 10G Ether-ring (ERPS ring protection for backbone redundancy)
- Storm control for broadcast, multicast, and unknown unicast
- IEEE 802.1x port-based and MAC-based authentication
- RADIUS and TACACS+ authentication
- Port isolation and port security
- ACL — policy control by VLAN ID, source MAC/IP address, and protocol port
- IP Source Guard and IP MAC port binding
- Flow classification based on L2/L3/L4 protocols
- 802.1P/DSCP priority marking
- SP, WRR, and SP+WRR scheduling
- Congestion avoidance with Tail-Drop and WRED
- Web-based GUI with PoE monitoring dashboard
- CLI via console, Telnet, SSH v2
- SNMP v1/v2c/v3 with RMON
- Dual firmware image for resilient upgrades
- SNTP/NTP time synchronization
- Managed via OmniEye NMS/EMS
Certifications
10G

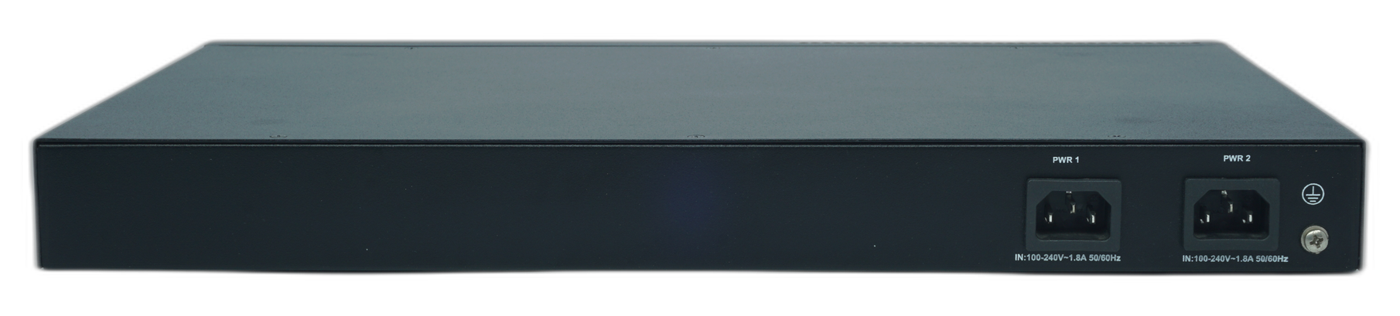

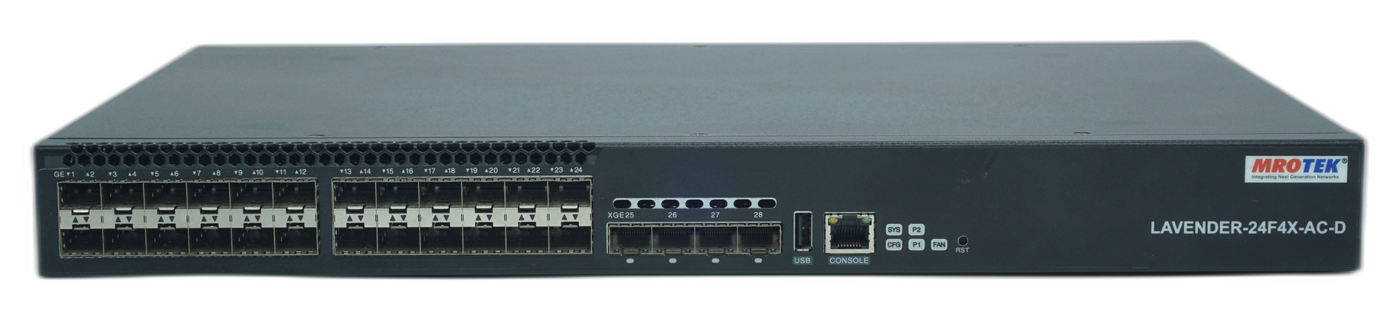

LAVENDER-24F4X
Overview
Fully managed Layer 2+ stackable switch for enterprise campus and fibre-access deployments. Delivers 128 Gbps non-blocking switching capacity with 95.3 Mpps forwarding rate, 24× 1G fibre access ports, and 4× 1G/10G slots. Features 16K MAC table, 4K VLAN with QinQ and private VLAN, and Telnet/SSH2.0/Web GUI/SNMP v1/v2/v3 management with TFTP and RMON.
24× 1G + 4× 1G/10G slots
Ports
128 Gbps
Switching
95.3 Mpps
Forwarding
16K
MAC Table
Specifications
- 24× 1G fibre access ports
- 4× 1G/10G uplink slots
- 1× RJ-45 console port
- 1U rack-mountable form factor
- 128 Gbps non-blocking switching capacity
- 95.3 Mpps forwarding rate
- 16K MAC address table (static and dynamic)
- 4K VLAN, QinQ (802.1ad), private VLAN
- Stackable
- Static route support for network connectivity
- Dynamic routing protocols — RIP and OSPF — for campus and enterprise networks
- 16K MAC table with static and dynamic MAC addresses, plus MAC address VLAN binding
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, LACP for link aggregation
- 4K VLAN, QinQ, private VLAN
- ERPS for ring architecture
- ACL — policy control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast
- Port isolation and port security
- IP Source Guard and IP MAC port binding
- Authentication — IEEE 802.1x, RADIUS and TACACS+
- Flow classification based on L2/L3/L4 protocols
- 802.1P/DSCP priority marking
- SP, WRR, and SP+WRR scheduling
- Congestion avoidance with Tail-Drop and WRED
- Console, Telnet, SSH2.0, and Web GUI management
- SNMP v1/v2/v3 with TFTP and RMON
- 24× 1G fibre access ports
- 4× 1G/10G uplink slots
- 1× RJ-45 console port
- 1U rack-mountable form factor
- 128 Gbps non-blocking switching capacity
- 95.3 Mpps forwarding rate
- 16K MAC address table (static and dynamic)
- 4K VLAN, QinQ (802.1ad), private VLAN
- Stackable
- Static route support for network connectivity
- Dynamic routing protocols — RIP and OSPF — for campus and enterprise networks
- 16K MAC table with static and dynamic MAC addresses, plus MAC address VLAN binding
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, LACP for link aggregation
- 4K VLAN, QinQ, private VLAN
- ERPS for ring architecture
- ACL — policy control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast
- Port isolation and port security
- IP Source Guard and IP MAC port binding
- Authentication — IEEE 802.1x, RADIUS and TACACS+
- Flow classification based on L2/L3/L4 protocols
- 802.1P/DSCP priority marking
- SP, WRR, and SP+WRR scheduling
- Congestion avoidance with Tail-Drop and WRED
- Console, Telnet, SSH2.0, and Web GUI management
- SNMP v1/v2/v3 with TFTP and RMON
Certifications
10G
LAVENDER-84X
Overview
Compact L2 managed switch combining 8× GbE access ports with 4× 1G/10G slots on a high-performance 96 Gbps switching fabric. Ideal for small office edge aggregation, wiring closets, and branch deployments requiring high-speed uplinks with a minimal access port footprint. TEC and TTP approved.
8× GbE
Access
4× 1G/10G slots
Uplinks
96 Gbps
Switching
71.42 Mpps
Forwarding
Specifications
- 8× 10/100/1000M RJ45 Ethernet ports
- 4× 1G/10G uplink slots
- 1× RJ-45 console port
- 1× USB port for configuration backup/restore
- Compact 1U rack-mountable or desktop form factor
- 96 Gbps non-blocking switching capacity
- 71.42 Mpps forwarding rate
- 16K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- 9K jumbo frame support
- Store-and-forward switching with CRC error detection
- Static route support for network connectivity
- Dynamic routing protocols — RIP and OSPF — for campus and enterprise networks
- IEEE 802.1Q VLAN, QinQ (802.1ad), voice VLAN, private VLAN
- IEEE 802.3ad LACP link aggregation
- Spanning Tree: 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU, root guard
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave
- MAC address VLAN binding
- 10G Ether-ring (ERPS ring protection for backbone redundancy)
- Storm control for broadcast, multicast, and unknown unicast
- IEEE 802.1x port-based and MAC-based authentication
- RADIUS and TACACS+ authentication
- Port isolation and port security
- ACL — policy control by VLAN ID, source MAC/IP address, and protocol port
- IP Source Guard and IP MAC port binding
- Flow classification based on L2/L3/L4 protocols
- 802.1P/DSCP priority marking
- SP, WRR, and SP+WRR scheduling
- Congestion avoidance with Tail-Drop and WRED
- Web-based GUI with dashboard and port monitoring
- CLI via console, Telnet, SSH v2
- SNMP v1/v2c/v3 with RMON
- Dual firmware image for resilient upgrades
- SNTP/NTP time synchronization
- Managed via OmniEye NMS/EMS
- 8× 10/100/1000M RJ45 Ethernet ports
- 4× 1G/10G uplink slots
- 1× RJ-45 console port
- 1× USB port for configuration backup/restore
- Compact 1U rack-mountable or desktop form factor
- 96 Gbps non-blocking switching capacity
- 71.42 Mpps forwarding rate
- 16K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- 9K jumbo frame support
- Store-and-forward switching with CRC error detection
- Static route support for network connectivity
- Dynamic routing protocols — RIP and OSPF — for campus and enterprise networks
- IEEE 802.1Q VLAN, QinQ (802.1ad), voice VLAN, private VLAN
- IEEE 802.3ad LACP link aggregation
- Spanning Tree: 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP), BPDU, root guard
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave
- MAC address VLAN binding
- 10G Ether-ring (ERPS ring protection for backbone redundancy)
- Storm control for broadcast, multicast, and unknown unicast
- IEEE 802.1x port-based and MAC-based authentication
- RADIUS and TACACS+ authentication
- Port isolation and port security
- ACL — policy control by VLAN ID, source MAC/IP address, and protocol port
- IP Source Guard and IP MAC port binding
- Flow classification based on L2/L3/L4 protocols
- 802.1P/DSCP priority marking
- SP, WRR, and SP+WRR scheduling
- Congestion avoidance with Tail-Drop and WRED
- Web-based GUI with dashboard and port monitoring
- CLI via console, Telnet, SSH v2
- SNMP v1/v2c/v3 with RMON
- Dual firmware image for resilient upgrades
- SNTP/NTP time synchronization
- Managed via OmniEye NMS/EMS
Certifications

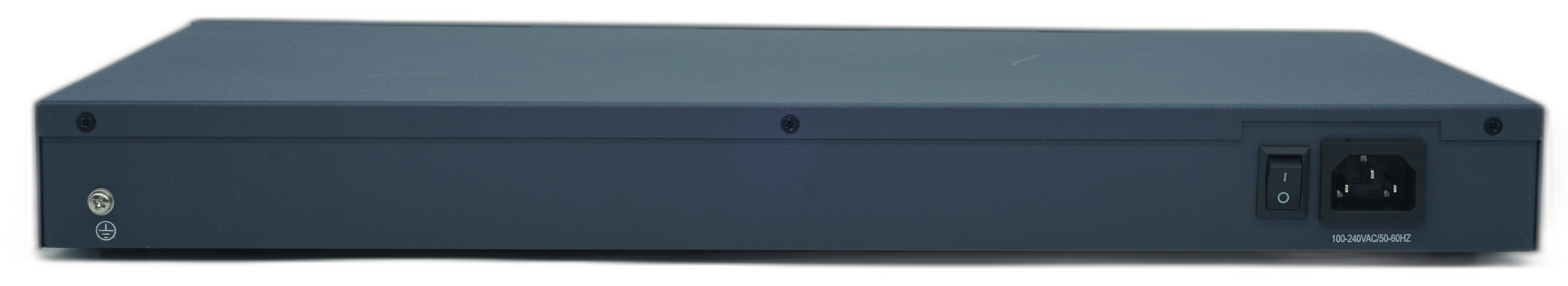

CORNUS-246P
Overview
The 24-Port Gigabit Ethernet Access Switch with 6 Fiber Uplink Ports provides high-performance, secure, and scalable network access for enterprise and service provider deployments. It supports wire-speed switching with advanced Layer 2 features for resilient network operation. The six fiber uplink ports provide high-bandwidth, resilient connectivity to aggregation or core networks, making the switch ideal for enterprise campuses, government networks, CCTV surveillance, and similar access network deployments.
24× GbE + 4× 1G
Ports
53 Gbps
Switching
38 Mpps
Forwarding
300-450W
PoE Budget
Specifications
- 24× 10/100/1000M RJ45 PoE+ Ethernet ports (IEEE 802.3af/at)
- 4× 1G fibre uplink ports
- 1× RJ-45 console port
- 1RU form factor
- IEEE 802.3af (PoE) — up to 15.4W per port
- IEEE 802.3at (PoE+) — up to 30W per port
- 24× PoE+ ports — all access ports PoE capable
- PoE budget: 300-450W total
- 53 Gbps non-blocking switching capacity
- 38 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
- 24× 10/100/1000M RJ45 PoE+ Ethernet ports (IEEE 802.3af/at)
- 4× 1G fibre uplink ports
- 1× RJ-45 console port
- 1RU form factor
- IEEE 802.3af (PoE) — up to 15.4W per port
- IEEE 802.3at (PoE+) — up to 30W per port
- 24× PoE+ ports — all access ports PoE capable
- PoE budget: 300-450W total
- 53 Gbps non-blocking switching capacity
- 38 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
Certifications

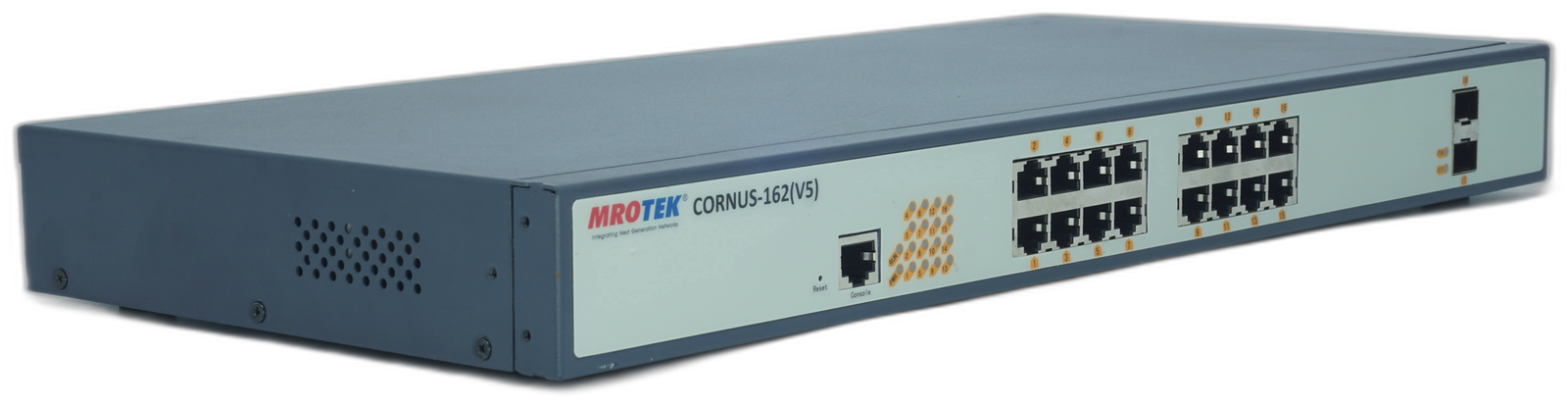

CORNUS-162P
Overview
The 16-Port Gigabit Ethernet PoE Access Switch with 2 Fiber Uplink Ports is an access switch designed for branch offices and edge deployments. Advanced Layer 2 features for resilient network operation supporting 120 to 240 W PoE with Dual fiber uplinks that provide high-speed backbone connectivity with redundancy. Its comprehensive management through an intuitive Web GUI, CLI, SNMP, and centralized network management systems.Ideally suited for CCTV Surveillance, Smart City Edge deployments and similar access network deployments.
16× GbE + 2× 1G
Ports
upto 36 Gbps
Switching
upto 26.784 Mpps
Forwarding
upto 250W
PoE Budget
Specifications
- 16× 10/100/1000M RJ45 PoE+ Ethernet ports (IEEE 802.3af/at)
- 2× 1G fibre uplink ports
- 1× RJ-45 console port
- 1RU form factor
- IEEE 802.3af (PoE) — up to 15.4W per port
- IEEE 802.3at (PoE+) — up to 30W per port
- 16× PoE+ ports — all access ports PoE capable
- PoE budget: 250W total
- 36 Gbps non-blocking switching capacity
- 26.784 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
- 16× 10/100/1000M RJ45 PoE+ Ethernet ports (IEEE 802.3af/at)
- 2× 1G fibre uplink ports
- 1× RJ-45 console port
- 1RU form factor
- IEEE 802.3af (PoE) — up to 15.4W per port
- IEEE 802.3at (PoE+) — up to 30W per port
- 16× PoE+ ports — all access ports PoE capable
- PoE budget: 250W total
- 36 Gbps non-blocking switching capacity
- 26.784 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
Certifications
CORNUS-84(V5)
Overview
The 8-Port Gigabit Ethernet Access Switch with 4 Fiber Uplink Ports is an access switch designed for branch offices and edge deployments. Advanced Layer 2 features for resilient network operation with Dual fiber uplinks that provide high-speed backbone connectivity with redundancy. Its comprehensive management through an intuitive Web GUI, CLI, SNMP, and centralized network management systems.
8× GbE + 4× 1G
Ports
24 Gbps
Switching
17.9 Mpps
Forwarding
8K
MAC Table
Specifications
- 8× 10/100/1000M RJ45 Ethernet ports
- 4× 1G fibre uplink ports
- 1× RJ-45 console port
- 19-inch rack-mountable, 1RU form factor
- Power supply — single AC/DC configurations
- 24 Gbps non-blocking switching capacity
- 17.9 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
- 8× 10/100/1000M RJ45 Ethernet ports
- 4× 1G fibre uplink ports
- 1× RJ-45 console port
- 19-inch rack-mountable, 1RU form factor
- Power supply — single AC/DC configurations
- 24 Gbps non-blocking switching capacity
- 17.9 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
Certifications
CORNUS-82P
Overview
The 8-Port Gigabit Ethernet PoE Access Switch with 2 Fiber Uplink Ports is an access switch designed for branch offices and edge deployments. Advanced Layer 2 features for resilient network operation supporting 120 W PoE with Dual fiber uplinks that provide high-speed backbone connectivity with redundancy. Its comprehensive management through an intuitive Web GUI, CLI, SNMP, and centralized network management systems.Ideally suited for CCTV Surveillance, Smart City Edge deployments and similar access network deployments.
8× GbE + 2× 1G
Ports
20 Gbps
Switching
14.88 Mpps
Forwarding
up to 120W
PoE Budget
Specifications
- 8× 10/100/1000M RJ45 PoE+ Ethernet ports (IEEE 802.3af/at)
- 2× 1G fibre uplink ports
- 1× RJ-45 console port
- 19-inch rack-mountable, 1RU form factor
- Power supply — single AC/DC or dual AC+DC/AC+AC configurations
- IEEE 802.3af (PoE) — up to 15.4W per port
- IEEE 802.3at (PoE+) — up to 30W per port
- 8× PoE+ ports — all access ports PoE capable
- PoE budget: 120W total
- 20 Gbps non-blocking switching capacity
- 14.88 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
- 8× 10/100/1000M RJ45 PoE+ Ethernet ports (IEEE 802.3af/at)
- 2× 1G fibre uplink ports
- 1× RJ-45 console port
- 19-inch rack-mountable, 1RU form factor
- Power supply — single AC/DC or dual AC+DC/AC+AC configurations
- IEEE 802.3af (PoE) — up to 15.4W per port
- IEEE 802.3at (PoE+) — up to 30W per port
- 8× PoE+ ports — all access ports PoE capable
- PoE budget: 120W total
- 20 Gbps non-blocking switching capacity
- 14.88 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
Certifications
CORNUS-82
Overview
The 8-Port Gigabit Ethernet Access Switch with 2 Fiber Uplink Ports is an access switch designed for branch offices and edge deployments. Advanced Layer 2 features for resilient network operation with Dual fiber uplinks that provide high-speed backbone connectivity with redundancy. Its comprehensive management through an intuitive Web GUI, CLI, SNMP, and centralized network management systems.Ideally suited for CCTV Surveillance, Smart City Edge deployments and similar access network deployments.
8× GbE + 2× 1G
Ports
20 Gbps
Switching
14.88 Mpps
Forwarding
8K
MAC Table
Specifications
- 8× 10/100/1000M RJ45 Ethernet ports
- 2× 1G fibre uplink ports
- 1× RJ-45 console port
- 19-inch rack-mountable, 1RU form factor
- 20 Gbps non-blocking switching capacity
- 14.88 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
- 8× 10/100/1000M RJ45 Ethernet ports
- 2× 1G fibre uplink ports
- 1× RJ-45 console port
- 19-inch rack-mountable, 1RU form factor
- 20 Gbps non-blocking switching capacity
- 14.88 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
Certifications

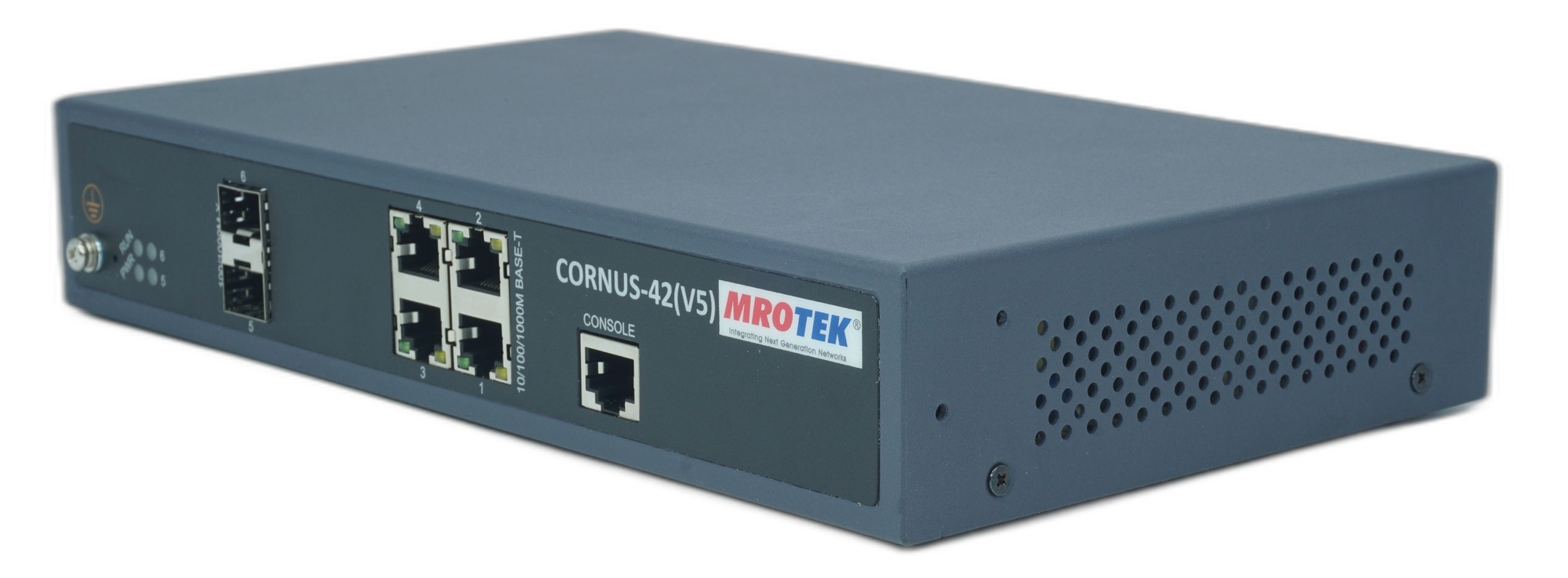

CORNUS-42(V5)
Overview
The 4-Port Gigabit Ethernet Access Switch with 2 Fiber Uplink Ports is an access switch designed for branch offices and edge deployments. Advanced Layer 2 features for resilient network operation with Dual fiber uplinks that provide high-speed backbone connectivity with redundancy. Its comprehensive management through an intuitive Web GUI, CLI, SNMP, and centralized network management systems.
4× GbE + 2× 1G
Ports
12 Gbps
Switching
8.9 Mpps
Forwarding
8K
MAC Table
Specifications
- 4× 10/100/1000M RJ45 Ethernet ports
- 2× 1G fibre uplink ports
- 1× RJ-45 console port
- 19-inch rack-mountable, 1RU form factor
- Power supply — single AC/DC configurations
- 12 Gbps non-blocking switching capacity
- 8.9 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
- 4× 10/100/1000M RJ45 Ethernet ports
- 2× 1G fibre uplink ports
- 1× RJ-45 console port
- 19-inch rack-mountable, 1RU form factor
- Power supply — single AC/DC configurations
- 12 Gbps non-blocking switching capacity
- 8.9 Mpps forwarding rate
- 8K MAC address table (static and dynamic)
- IEEE 802.1Q VLAN — up to 4094 VLANs
- Store-and-forward switching
- IEEE 802.1Q VLAN, QinQ (802.1ad), private VLAN
- IEEE 802.3ad LACP link aggregation with port mirroring
- Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s) with BPDU guard and root guard
- IGMP snooping v1/v2/v3 for multicast traffic
- ITU-T G.8031/G.8032 ERPS Ethernet ring protection switching
- ACL — policy-based control by VLAN ID, source MAC/IP address, and protocol port
- Storm control for broadcast, multicast, and unicast traffic
- Port security with MAC address binding
- IP-MAC port binding
- IEEE 802.1x port-based authentication
- RADIUS and TACACS+ authentication
- IEEE 802.1p class of service (CoS)
- IP DSCP-based CoS
- Fragment and DSCP-based traffic classification
- Console, Telnet, SSH v2, Web GUI management
- SNMP v1/v2c/v3 with RMON
- Firmware image upgrade
- Managed via OmniEye NMS/EMS (optional)
Certifications
Need help selecting the right switch for your deployment?
