PDH Fiber Multiplexer
Fiber transport multiplexer device with fiber redundancy.ECAT-01L is a 4-channel E1 and Fast Ethernet-over-Fiber transport multiplexer device with redundancy suited for point-to-point circuits. In addition to various distances supported the ECAT-01L provides rich diagnostic features with DIP switches to ease installations.
4x E1 + Fast Ethernet
4× E1 (2.048 Mbps, G.703/G.704) plus 1× Fast Ethernet multiplexed over a single fibre link.
Redundant Fibre Uplink
Main + protect single-mode fibre uplinks, 15 km or 40 km reach models.
Local & Remote Loopback
DIP-switch configurable local (LLB) and remote (RLB) loopback diagnostics.
TEC Approved
TEC approved low-cost TDM access multiplexer for point-to-point deployments.
Models

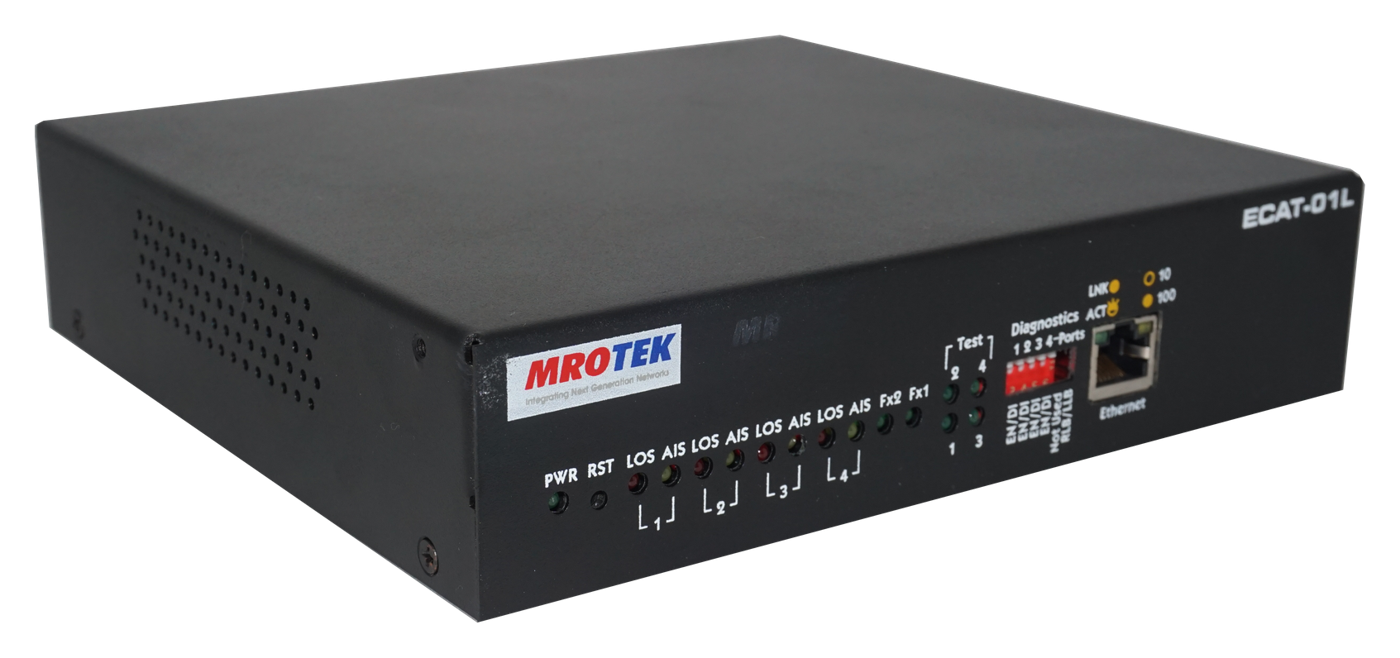

ECAT-01L
Overview
ECAT-01L is a TEC approved, low cost TDM Access Multiplexer which multiplexes up to 4 E1 channels and one Fast Ethernet over a single 100Base-X fibre link. It provides a simple, flexible, and cost-effective solution for transporting 4 E1 channels and one Fast Ethernet transparently over a single Fast Ethernet fibre for point-to-point applications at distances up to 100 km / 62 miles.
4
E1 Channels
1× 100BASE-T
Ethernet
Single-mode, 15 or 40 km (redundant)
Fibre
SC ×2 (main + redundant)
Connector
Specifications
- 4× E1 RJ-45 ports — 2.048 Mbps, G.703/G.704 framing, HDB3 line coding
- 1× 100BASE-T port, shielded RJ-45, Auto MDI-I/MDI-X
- 2× 100BASE-FX SC fibre ports — main fibre link + redundant link
- Single-mode fibre — 15 km or 40 km depending on model
- Redundant fibre uplink (main + protect)
- SC connector
- 4× DIP switches to enable/disable local (LLB) and remote (RLB) loopbacks
- TEC approved

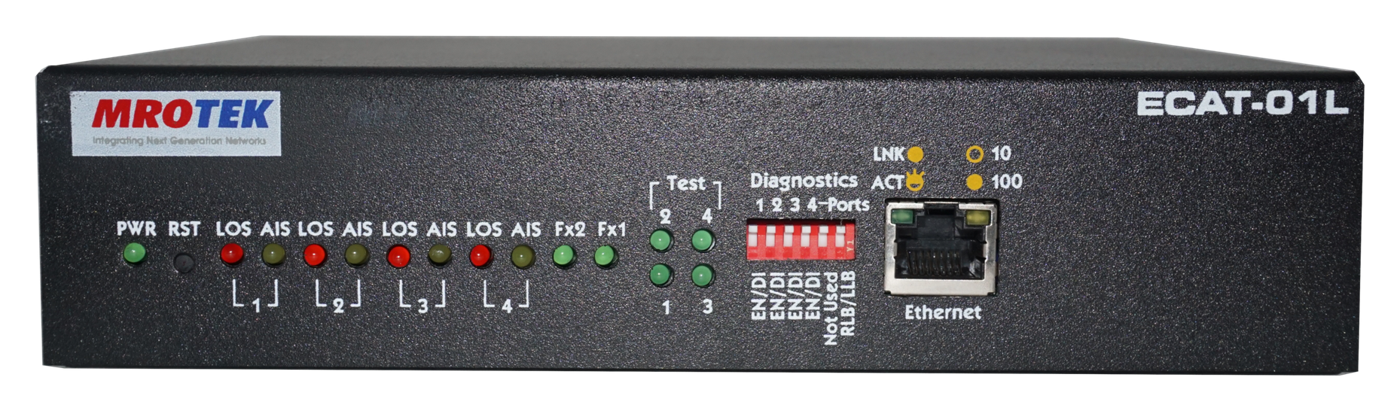

- PWR (green) — power status
- Fx1, Fx2 (green) — fibre link status
- LOS (red) — error detection
- AIS (yellow) — alarm indication
- TEST (green) — test status
- LNK/ACT (green) — Ethernet port link/activity
- 10/100 — copper port speed indicator
- AC: 90V to 270 VAC, 10W
- DC: -40V to -60 VDC, 5W max
- Dimensions: 192 × 172 × 44 mm
- Operating temp: 0°C to 50°C, Humidity: 10% to 90% non-condensing
- 4× E1 RJ-45 ports — 2.048 Mbps, G.703/G.704 framing, HDB3 line coding
- 1× 100BASE-T port, shielded RJ-45, Auto MDI-I/MDI-X
- 2× 100BASE-FX SC fibre ports — main fibre link + redundant link
- Single-mode fibre — 15 km or 40 km depending on model
- Redundant fibre uplink (main + protect)
- SC connector
- 4× DIP switches to enable/disable local (LLB) and remote (RLB) loopbacks
- TEC approved
- PWR (green) — power status
- Fx1, Fx2 (green) — fibre link status
- LOS (red) — error detection
- AIS (yellow) — alarm indication
- TEST (green) — test status
- LNK/ACT (green) — Ethernet port link/activity
- 10/100 — copper port speed indicator
- AC: 90V to 270 VAC, 10W
- DC: -40V to -60 VDC, 5W max
- Dimensions: 192 × 172 × 44 mm
- Operating temp: 0°C to 50°C, Humidity: 10% to 90% non-condensing
Ordering Information
- ECAT-01L/SA/# — 4× E1 over optical fibre uplink (no redundancy), point-to-point
- ECAT-01L/SA/2FX/# — 4× E1 over redundant optical fibre uplink, point-to-point
- ECAT-01L/SA/FE/# — 4× E1 + 1× Fast Ethernet over optical fibre uplink (no redundancy), point-to-point
- ECAT-01L/SA/FE/2FX/# — 4× E1 + 1× Fast Ethernet over redundant optical fibre uplink, point-to-point
Certifications
